DSL-2750U/BEOL EOS
Wireless ADSL2+ Router with 3G/Ethernet WAN Support and USB Port
Description
USB Port
The router is equipped with a USB port for connecting a USB modem, which can be used to establish connection to the Internet. In addition, to the USB port of the router you can connect a USB storage device, which will be used as a network drive, or a printer.
ADSL Port and 4-port Switch, Ethernet WAN Support
The router is equipped with an ADSL port to connect to an ADSL line. The built-in 4-port switch enables you to connect Ethernet-enabled computers, game consoles, and other devices to your network. In addition, any Ethernet port of the device can be used to connect to a private Ethernet line.
Wireless Interface
You are able to quickly create a wireless network at home or in your office, which lets your relatives or employees connect to your wireless network virtually anywhere (within the operational range of your wireless network). The router can operate as a base station for connecting wireless devices of the standards 802.11b, 802.11g, and 802.11n.
The router supports multiple functions for the wireless interface: several security standards (WEP, WPA/WPA2), MAC address filtering, and the WPS function.
In addition, the device is equipped with a button for switching the Wi-Fi network off/on. If needed, for example, when you leave home, you can easily switch the router’s WLAN by pressing the button, and devices connected to the LAN ports of the router will stay online.
Security
The wireless router DSL-2750U includes a built-in firewall. The advanced security functions minimize threats of hacker attacks, prevent unwanted intrusions to your network, and block access to unwanted websites for users of your LAN.
Configuration and Management
You can configure and manage the settings of the router DSL-2750U via the user-friendly web-based interface (the interface is available in several languages).
General features
|
Hardware
|
|
|
Interfaces
|
• RJ-11 ADSL port
• 4 10/100BASE-TX LAN ports
• USB 2.0 port
|
|
LEDs
|
• POWER
• DSL
• INTERNET
• WLAN
• LAN 1-4
• WPS
• USB
|
|
Buttons
|
• ON/OFF button to power on/power off
• RESET button to restore factory default settings
• WPS/WLAN button to set up secure wireless connection and enable/disable wireless network
|
|
Antenna
|
• Two internal omnidirectional antennas (2dBi gain)
|
|
MIMO
|
• 2 x 2
|
|
Power connector
|
• Power input connector (DC)
|
|
DSL Parameters
|
|
|
ADSL Standards
|
• ADSL: Multi-mode, ANSI T1.413 Issue 2, ITU-T G.992.1 (G.dmt) Annex A, ITU-T G.992.2 (G.lite) Annex A, ITU-T G.994.1 (G.hs)
• ADSL2: ITU-T G.992.3 (G.dmt.bis) Annex A/L/M, ITU-T G.992.4 (G.lite.bis) Annex A
• ADSL2+: ITU-T G.992.5 Annex A/L/M
|
|
ATM/PPP Protocols
|
• Bridged and routed Ethernet encapsulation
• VC-based or LLC-based multiplexing
• ATM Forum UNI3.1/4.0 PVC (up to 8 PVCs)
• ATM Adaptation Layer Type 5 (AAL5)
• ITU-T I.610 OAM F4/F5 loopback
• ATM QoS
• PPP over ATM (RFC 2364)
• PPP over Ethernet (PPPoE)
• Keep-alive for PPP connections
|
| Software | |
|
WAN connection types
|
• 3G
• PPPoA
• PPPoE
• IPoA
• Static IP / Dynamic IP
• Bridge
|
|
Network functions
|
• Additional IP address for LAN interface
• DHCP server/relay
• DNS relay
• Dynamic DNS
• Static IP routing
• IGMP Proxy
• IGMP snooping
• RIP
• Support of UPnP IGD
• Support of VLAN
• Channel reservation
|
|
Firewall functions
|
• Network Address Translation (NAT)
• Stateful Packet Inspection (SPI)
• IP filters
• MAC filter
• MAC filtering based on time of day and day of week
• URL filter
• DMZ
• Prevention of DoS attacks
• Intrusion detection system
• Virtual servers
• Port Triggering
|
|
VPN
|
• PPPoE pass-through
|
|
QoS
|
• Interface grouping
• VLAN priority (802.1p)
|
|
USB interface functions
|
• USB modem1
Auto connection to available type of supported network (3G/2G)
Enabling/disabling PIN code check, changing PIN code
• USB storage
File browser
Print server
Access to storage via accounts
Built-in Samba server
|
|
Management
|
• Local and remote access to settings through TELNET/WEB (HTTP)
• Multilingual web-based interface for configuration and management
• Firmware update via web-based interface
• Saving/restoring configuration to/from file
• Support of remote logging
• SNMP agent
• Automatic synchronization of system time with NTP server and manual time/date setup
• Ping function
• TR-069 client
|
| Wireless Module Parameters | |
|
Standards
|
• IEEE 802.11b/g/n
|
|
Frequency range
|
• 2400 ~ 2483.5MHz
|
|
Wireless connection security
|
• WEP
• WPA/WPA2 (Personal)
• МАС filter
• WPS (PBC/PIN)
|
|
Advanced functions
|
• Support of guest wireless network
• Advanced settings
|
|
Wireless connection rate
|
• IEEE 802.11b: 1, 2, 5.5, and 11Mbps
• IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, and 54Mbps
• IEEE 802.11n: from 6.5 to 300Mbps (from MCS0 to MCS15)
|
|
Transmitter output power
The maximum value of the transmitter output power depends upon the radio frequency regulations applied in your country
|
• 802.11b
16.5 ~ 18.5dBm
• 802.11g
13.5 ~ 16.5dBm
• 802.11n
13.5 ~ 16.5dBm
|
|
Modulation schemes
|
• 802.11b: CCK (11, 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps), DSSS
• 802.11g: PSK/CCK, DBPSK, DQPSK, OFDM, BPSK, QPSK, 16QAM, 64QAM
• 802.11n: PSK/CCK, DBPSK, DQPSK, OFDM, etc.
|
|
Physical Parameters
|
|
|
Dimensions
|
• 160 x 120 x 59 mm (6.3 x 4.7 x 2.3 in)
|
|
Weight
|
• 240 g (0.53 lb)
|
|
Operating Environment
|
|
|
Power
|
• Output: 12V DC, 1A
|
|
Temperature
|
• Operating: from 0 to 40 °C
• Storage: from -20 to 70 °C
|
|
Humidity
|
• From 5% to 95% (non-condensing)
|
|
Delivery Package
|
|
|
• Router DSL-2750U
• Power adapter DC 12V/1A
• RJ-11 telephone cable
• Ethernet cable (CAT 5E)
• Splitter
• “Quick Installation Guide” (brochure)
|
|
|
Supported USB modems2
|
|
|
GSM
|
• Huawei E171
• ZTE MF192
• ZTE MF626
• ZTE MF652
|
|
CDMA
|
• Airplus MCD-650
• Airplus MCD-800
• ZTE AC5730
|
1For GSM USB modems only.
2The manufacturer does not guarantee proper operation of the router with every modification of the firmware of USB modems.
Certificates
Order info
DSL-2750U/B Wireless ADSL2+ Router with 3G/Ethernet WAN Support and USB Port
Pictures

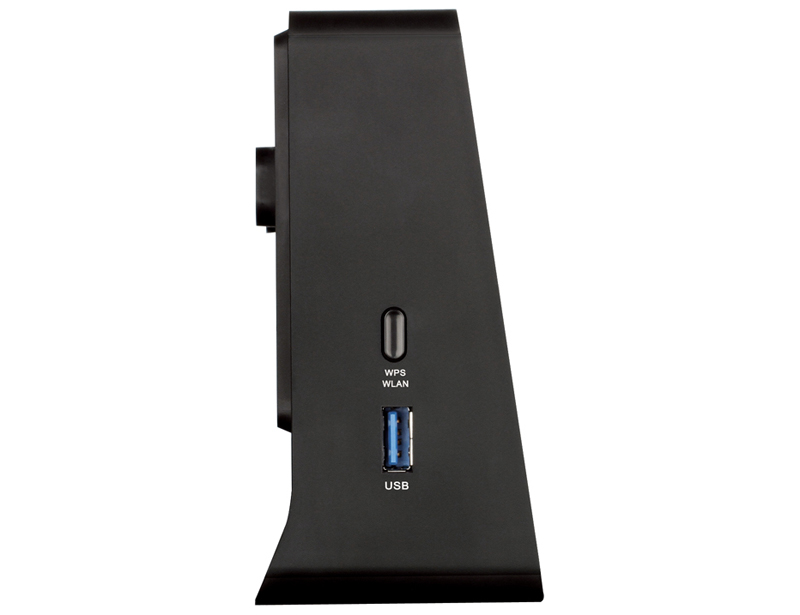

DSL-2750U/B
