DCS-4703EEOL EOS

Megapixel Vigilance Outdoor PoE Mini Bullet Camera

Tanımlama

The D-Link DCS-4703E camera is a high-definition professional surveillance and security solution suitable for small, medium, and large enterprises. The camera uses a high-sensitivity 3 megapixel progressive scan CMOS sensor to deliver truly superior quality video under a wide range of lighting conditions. The all-in-one rugged design makes this camera ideal for reliable deployment in surveillance applications without the need for additional accessories.

Enhanced LowLight+ Video
Incorporating a highly sensitive CMOS sensor, the DCS-4703E provides outstanding performance in low-light conditions, rendering more vibrant color details regardless of the amount of light available. The noise reduction feature has also been upgraded and enhanced as well to provide a level of detail in the image quality that is unmatched by other offerings in the market.

Continuous Monitoring
The built-in IR LED illuminators automatically turn on depending on lighting conditions, allowing the camera to capture video even in low-light or no-light conditions. Combined with the IR-Cut filter, the DCS-4703E can also provide sharp grayscale video in low-light conditions. Embedded with a powerful SoC (System-on-Chip), the camera provides real-time video compression in H.264 and MJPEG formats. These elements combine to make the DCS-4703E an ideal solution for 24-hour surveillance.

Convenient Connectivity
The DCS-4703E has a built-in 802.3af compliant PoE module that eases installation by providing power and networking connectivity with a single cable, reducing the need to drill holes or lay additional cabling.

Robust Management Software
The Vigilance Outdoor PoE Mini Bullet Camera includes D-ViewCam, a complete surveillance software package that enables you to view, manage, and record from up to 32 cameras on a single computer from a central location. Recordings and e-mail alerts can be triggered through motion detection, keeping administrators informed of any unusual activity.


Genel Özellikler

Camera Hardware Profile
• 1/3" 3 megapixel progressive CMOS sensor
• 20 meter IR illumination distance
• Minimum illumination:
  Color (Day Mode): 0.2 lux
  B/W (Night Mode), IR LEDs off: 0.1 lux
  B/W (Night Mode), IR LEDs on: 0 lux
• Built-in Infrared-Cut Removable (ICR) Filter module
• 10x digital zoom
• Minimum object distance 0.5 m
• Focal length: 3.6 mm
• Aperture: F1.8
• Angle of view:
  (H) 70°
  (V) 40°
  (D) 80°

Camera Housing
• IP-66 compliant weatherproof housing

Image Features
• Configurable image size, quality, frame rate, and bit rate
• Time stamp and text overlays
• Configurable motion detection windows
• Configurable privacy mask zones
• Configurable shutter speed, brightness, saturation, contrast, and sharpness
• WDR
• 3D filter

Video Compression
• Simultaneous H.264/MJPEG format compression
• H.264/MJPEG multicast streaming
• JPEG for still images

Video Resolution
• 16:9 - 1920 x 1080, 1280 x 720, 800 x 448, 640 x 360 up to 30 fps
• 4:3 - 2048 x 1536 up to 15 fps, 1440 x 1080, 1280 x 960, 900 x 720, 800 x 592, 640 x 480 up to 30 fps

External Device Interface
• 10/100Base-TX Fast Ethernet port
• Supports 802.3af PoE

Network Protocols
• IPv6
• IPv4
• TCP/IP
• UDP
• ICMP
• DHCP client
• NTP client (D-Link)
• DNS client
• DDNS client (D-Link)
• SMTP client
• FTP client
• HTTP/HTTPS
• Samba client
• PPPoE
• UPnP port forwarding
• RTP/RTSP/RTCP
• IP filtering
• QoS
• CoS
• Multicast
• SNMP
• ONVIF compliant

Security
• Administrator and user group protection
• Password authentication
• HTTP and RTSP authentication

System Requirements for Web Interface
• Browser: Internet Explorer, Firefox, Chrome, Safari

Event Management
• Motion detection
• Event notification and uploading of snapshots/video clips via e-mail or FTP
• Supports multiple SMTP and FTP servers
• Multiple event notifications
• Multiple recording methods for easy backup

Remote Management
• Take snapshots/video clips and save to local hard drive
• Configuration interface accessible via web browser

D-ViewCam System Requirements
• Operating System: Microsoft Windows Vista/7/8/10
• Web Browser: Internet Explorer 7 or higher
• Protocol: TCP/IP

D-ViewCam Software Functions
• Remote management/control of up to 32 cameras
• Supports all management functions provided in web interface
• Viewing of up to 32 cameras on one screen
• Scheduled motion triggered, or manual recording options

Physical Parameters
Weight
• 430 g ± 5%

Dimensions
• 98.1 x 65 x 65 mm

External Power Adapter
• Input: 100 to 240 V AC, 50/60 Hz
• Output: 12 V DC, 1.5 A

Temperature
• Operating: -30 to 50 °C
• Storage: -20 to 70 °C

Humidity
• Operating: 20% to 80% non-condensing
• Storage: 5% to 95% non-condensing

Certifications
• CE
• CE LVD
• FCC
• C-Tick

Çözümler

Sipariş Bilgisi

DCS-4703E Megapixel Vigilance Outdoor PoE Mini Bullet Camera

Görseller

DCS-4703E/Ax
Front view

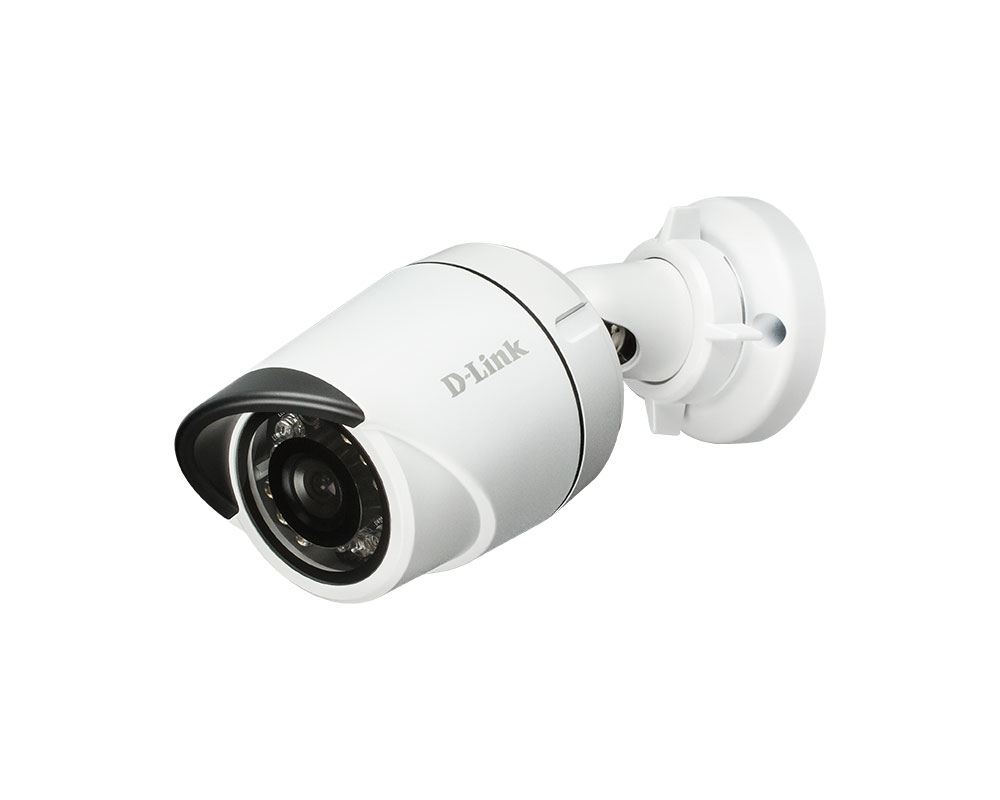

Left side view

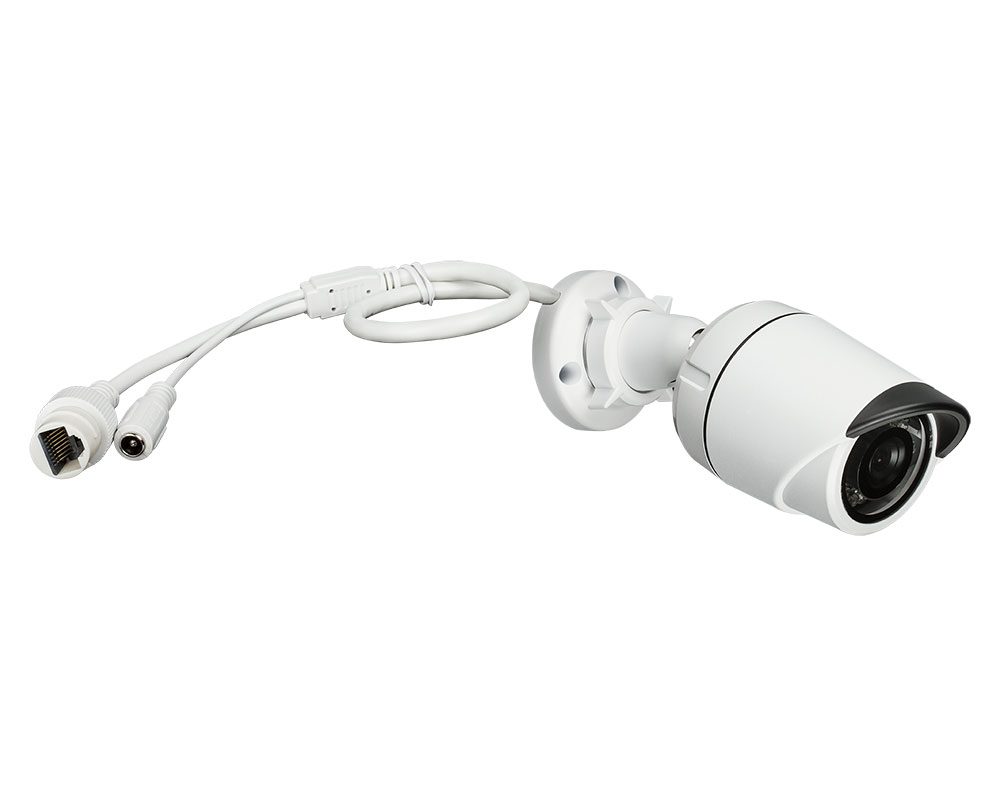

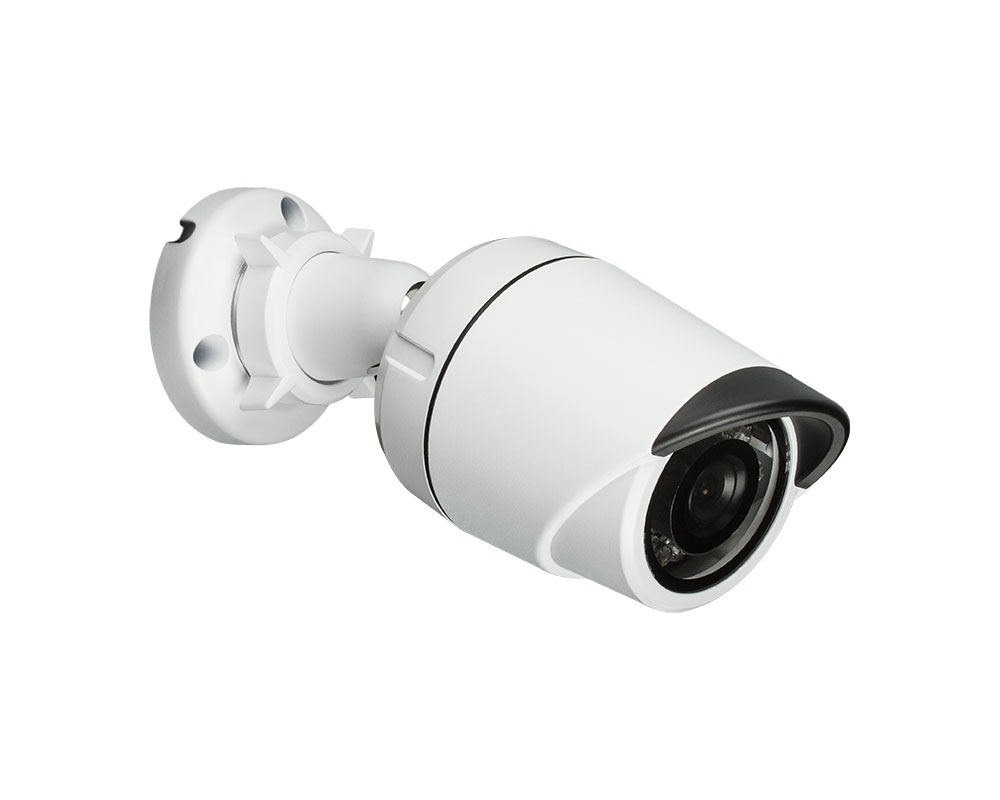

View from the right
