DXS-3600-16SProje

Switch with 8 fixed SFP + ports with one expansion module, one AC power supply and three fans
Nereden Alınır

Tanımlama

Series L3 Switch D-Link DXS-3600 includes a new compact high-performance switches, asking for switching and routing of traffic at speeds up to 10 Gb / s. 1U in height and the ability to select the direction of ventilation (from the back to the front or vice versa) make a series of DXS-3600 is very convenient for use at the level of aggregation in the campus and in the workplace. The switch DXS-3600-16S is equipped with 8 fixed ports 10GbE SFP + and can use more ports adding expansion module that provides additional ports 10G SFP +.

Functional Use
DXS-3600 switches deliver high-performance 10-Gigabit data transmission switch fabric up to 960 Gbit / s and a maximum speed of packet forwarding 714 million packets per second. Switches are equipped with power sources and the ability to "hot" replacement and fan that provides a high level of reliability and fault tolerance. The modular power design allows you to select the network with AC or DC depending on the installation location. When two power supplies, they share the load, and also carry out backup power supply for 1 +1. DXS-3600 series also includes a modular scheme of fans. Three fans may overlap, providing a redundant cooling system 2 +1. If one fan fails or the temperature increases, the speed of the remaining fans is automatically increased.

Comprehensive software
Series Switch DXS-3600 supports an extended copy (EI). Advanced copy of the software (EI) supports routing IPv4/v6, including RIP, VRRP, OSPF, BGP, and also features a multicast Layer 3, such as IGMP, MLD, PIM-DM, SM, SDM, SSM, and DVMRP. Advanced copy of the software (EI) supports L2/L3 MPLS VPN, which allows you to set a series of switches DXS-3600 as the main router network, or the network edge router MPLS.

The functions of the data center
Data Center Bridging (DCB) is the mandatory installation of extensions to Ethernet networking in the data center. DXS-3600 switches support several major components of DCB, such as IEEE 802.1Qbb, IEEE 802.1Qaz and IEEE 802.1Qau. IEEE 802.1Qbb (flow control on the basis of priorities) provides flow control for the leveling of data loss due to network congestion. IEEE 802.1Qaz (enhanced transmission selection) controls the allocation of bandwidth among different traffic classes. IEEE 802.1Qau (Congestion Notification) provides congestion control for data flows within the network domain in order to prevent overloading.DXS-3600 switches also support unbuffered packet switching, which reduces latency for data transmission in the network.

Saving energy
Ability to select the direction of ventilation from the rear to the front, or vice versa for maximum air conditioning for more efficient cooling of all the systems that are mounted in a rack in data centers using switches. The switches also come with built-in smart fans, internal temperature sensors that control temperature changes and react accordingly to the use of different fan speeds for different temperatures. At low temperatures, the fan speed is reduced, which reduces the energy consumption and reduces noise.


Genel Özellikler

General
• Interfaces: 8 fixed 10-Gigabit ports with one expansion module
• Console port: port with RJ-45 management (out-of-band)
• Control Port: Port 10/100/1000 Base-T with RJ-45 connector for remote control (out-of-band)
• Slot for SD-cards

DDM (Digital Diagnostics Monitoring) 1
Yes

Performance
• Switch fabric: 480 Gbit / s
• Max. packet rate: 357,14 Mpps
• Size of the packet buffer size: 9 MB
• MAC-address table: 128 K

Functions of an enhanced copy of the software (EI)
Multicast Layer 3
• The size of the table multicast: 2K
• IGMP v1, v2, v3
• PIM-SM
• PIM-DM
• The PIM-Sparse-Dense
• PIM-SSM
• DVMRP v3
• MLD v1/v2 1

MPLS
• LDP
• MPLS LSP trigger filtering
• Multiprotocol Label Switching (MPLS label-forwarding)
• MPLS QoS
• MPLS ping and traceroute
• L2 protocol tunneling through PW
• VPWS
• VPLS
• PW Redundancy

Layer 3 Features
• IPv6 Tunneling 1
  - Static
  - ISATAP
  - GRE
  - 6to4
• VRRP

Layer 3 VPN
• MPLS / BGP L3 VPN
• Virtualization technology VRF-Lite
• MP-BGP
• VRF aware application

Layer 3 routing
• Supports up to 16K entries for IPv4/IPv6 routing
  - Max. 16K IPv4 records
  - Max. 8K IPv6 records 1
• Supports 8K L3 shared items sent by IPv4/IPv6
  - Max. 8K IPv4 records
  - Max. 4K IPv6 records 1
• IS-IS
  - IS-ISv6
• RIP
  - RIP v1/v2
  - RIPng 1
• OSPF
  - OSPF v2
  - OSPF v3 1
  - Passive OSPF interface
  - Stub / NSSA Area
  - OSPF Equal Cost Route
• BGPv4
• Route Redistribution
• IP Directed Broadcast
• Policy-based routing 1

Standard MIB and RFC
• RFC1213 MIB II
• RFC1907 SNMP v2 MIB
• RFC5519 IGMP v3 MIB
• RFC1724 RIP v2 MIB
• RFC2021 RMONv2 MIB
• RFC1643, RFC2358, RFC2665 Ether-like MIB
• RFC4836 802.3 MAU MIB
• RFC4363 802.1p MIB
• RFC2618 RADIUS Authentication Client MIB
• RFC4292 IP Forwarding Table MIB
• RFC2932 IPv4 Multicast Routing MIB
• RFC2934 PIM MIB for IPv4
• RFC2620 RADIUS Accounting Client MIB
• RFC2925 Traceroute MIB
• RFC2925 Ping MIB
• RFC1850 OSPF MIB
• Private MIB
• RFC1112, RFC2236, RFC3376, RFC4541 IGMP Snooping
• RFC4363 802.1v
• RFC2338 VRRP
• RFC1058, RFC1388, RFC1723, RFC2453, RFC2080 RIP
• RFC1370, RFC1765, RFC2328, RFC2740, RFC3101 makes RFC1587 obsolete, RFC2328 makes RFC1583, RFC2178 OSPF v2, v3
• RFC1771, RFC1997, RFC2439, RFC2796, RFC2842, RFC2918 BGP
• RFC3973 PIM-DM
• RFC5059 PIM-SM
• RFC3569, RFC4601, RFC4608, RFC4607, RFC4604 PIM SSM
• RFC3376 IGMP
• RFC2475 Priority Queue Mapping
• RFC2475, RFC2598 Class of Service (CoS)
• RFC2597, RFC2598 QoS Flow Actions
• RFC2697, RFC2698 Three Color MarkerRFC2093, RFC2904, RFC2095, RFC2906 AAA
• RFC1321, RFC2144, RFC2313, RFC2420, RFC2841, RFC3394 Encryption
• RFC2289 One-Time
• RFC3580 802.1X
• RFC2866 RADIUS Accounting
• RFC2138, RFC2139, RFC2865, RFC2618 RADIUS Author. for Management Access
• RFC1492 TACACS + Auth. for Management Access
• RFC2068, RFC2616 Web-based GUI
• RFC854 Telnet Server
• RFC783, RFC1350 TFTP Client
• RFC1157, RFC1901, RFC1908, RFC2570, RFC2574, RFC2575, RFC3411-17 SNMP
• RFC3164 System Log
• RFC2819 RMON v1
• RFC951, RFC1542, RFC2131, RFC3046 BootP / DHCP Client
• RFC1769 Time Setting
• RFC2131 DHCP Server
• RFC1191 MTU Setting
• RFC1065, RFC1066, RFC1155, RFC1156, RFC2578 MIB Structure
• RFC1215 MIB Traps Convention
• RFC4188 Bridge MIB
• RFC1157, RFC2571-2576, RFC3411-3415, RFC3418 SNMP MIB
• RFC1901-1908, RFC1442, RFC2578 SNMP v2 MIB
• RFC2737 Entity MIB
• RFC768 UDP
• RFC791 IP
• RFC792 ICMP
• RFC793 TCP
• RFC826 ARP
• RFC1338, RFC1519 CIDR
• RFC2716, RFC3748 EAP
• RFC2571, RFC2572, RFC2573, RFC2574 SNMP



Fiziksel Özellikler
Nutrition
100-240 VAC, 50/60 Hz

Max. power consumption
• 74,3 W (without expansion module)
• 105,3 W (with DXS-3600-EM-4QXS)

Power consumption in standby mode
69.9 W

Max. heat release
• 253,36 BTU / hr (without expansion module)
• 359,07 BTU / h (with DXS-3600-EM-4QXS)

Heat dissipation in standby mode
238,36 BTU / hr

Measurements
440 x 506 x 44 mm

Weight
9.89 kg

Operating temperature
0 to 45 C

Storage temperature
From 40 to 70 C

Humidity
From 0% to 95% (non-condensing)

Storage humidity
From 0% to 95% (non-condensing)

Certifications
• Safety: CB, cUL
• EMI / EMC: FCC, CE, C-Tick, IC, VCCI, BSMI







Çözümler

Sipariş Bilgisi

Görseller

DXS-3600-16S/B

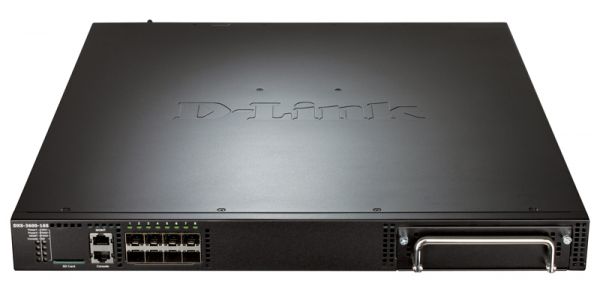

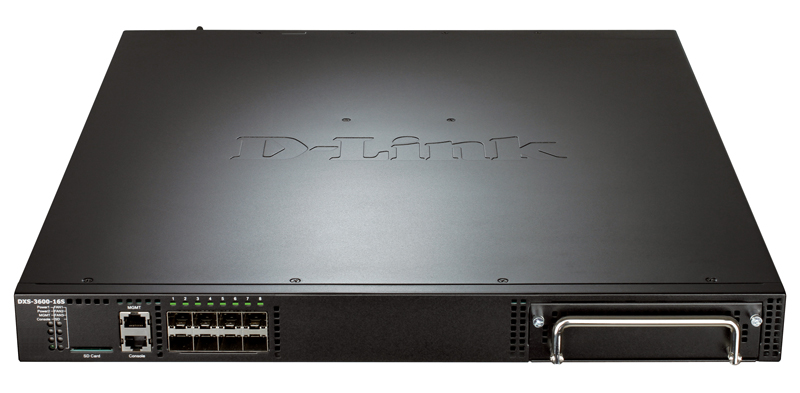

Front view

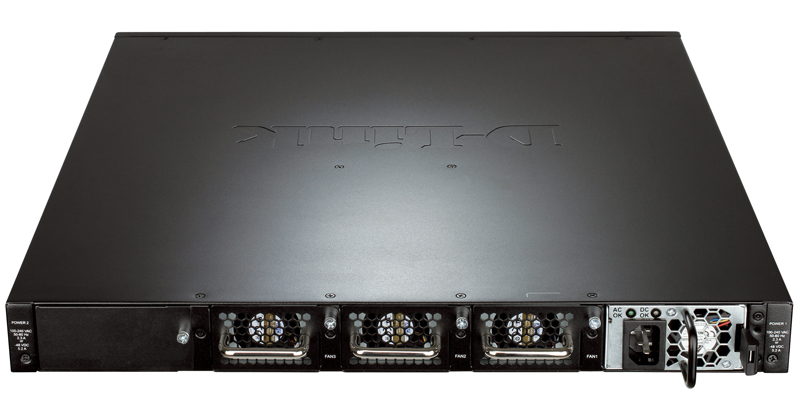

Back view
