DIR-806A/R

AC750 Wi-Fi Router
Nereden Alınır

Tanımlama

Wireless Interface
Using the DIR-806A device, you are able to quickly create a high-speed wireless network at home or in your office, which lets computers and mobile devices access the Internet virtually anywhere (within the operational range of your wireless network). Simultaneous activity of 2.4GHz band and 5GHz band allows performing a wide range of tasks. The router can operate as a base station for connecting wireless devices of the standards 802.11a, 802.11b, 802.11g, 802.11n, and 802.11ac (at the wireless connection rate up to 733Mbps1).

Secure Wireless Connection
The router supports multiple functions for the wireless interface: several security standards (WEP, WPA/WPA2), MAC address filtering, WPS, WMM.
In addition, the device is equipped with a button for switching the Wi-Fi network off/on. If needed, for example, when you leave home, you can easily switch the router’s WLAN by pressing the button, and devices connected to the LAN ports of the router will stay online.

Advanced Capabilities of Wireless Network
Smart adjustment of Wi-Fi clients is useful for networks based on several D-Link access points or routers – when the smart adjustment function is configured on each of them, a client always connects to the access point (router) with the highest signal level.
Support of guest Wi-Fi network allows you to create a separate wireless network with individual security settings. Devices connected to the guest network will be able to access the Internet, but will be isolated from the devices and resources of the router's LAN.

Security
The wireless router DIR-806A includes a built-in firewall. The advanced security functions minimize threats of hacker attacks, prevent unwanted intrusions to your network, and block access to unwanted websites for users of your LAN.
In addition, the router supports IPsec and allows to create secure VPN tunnels.
Built-in Yandex.DNS service protects against malicious and fraudulent web sites and helps to block access to adult content on children's devices.

Easy configuration and update
You can configure the settings of the wireless router DIR-806A via the user-friendly web-based interface (the interface is available in two languages – in Russian and in English).
The configuration wizard allows you to quickly switch DIR-806A to one of the following modes: router (for connection to a wired or wireless ISP), access point, repeater, or client, and then configure all needed setting for operation in the selected mode in several simple steps.
Also DIR-806A supports configuration and management via mobile application for Android and iPhone smartphones.
You can simply update the firmware: the router itself finds approved firmware on D-Link update server and notifies when ready to install it.

1Up to 300Mbps for 2.4GHz and up to 433Mbps for 5GHz.

Genel Özellikler

Hardware
Processor
• MTK7620DA (480 MHz)
RAM
• 64MB, DDR2, built in processor
Flash
• 8MB, SPI
Interfaces
• 10/100BASE-TX WAN port
• 4 10/100BASE-TX LAN ports
LEDs
• Power
• Internet
• 4 LAN LEDs
• 2.4G WLAN
• 5G WLAN
• WPS
Buttons
• POWER button to power on/power off
• WIFI button to enable/disable wireless network
• WPS button to set up wireless connection
• RESET button to restore factory default settings
Antenna
• Two external non-detachable antennas (5dBi gain for 2.4GHz and 5GHz)
• One internal antenna (3dBi gain for 2.4GHz)
MIMO
• 2 x 2 (for 2.4GHz)
Power connector
• Power input connector (DC)
Software
WAN connection types
• PPPoE
• IPv6 PPPoE
• PPPoE Dual Stack
• Static IPv4 / Dynamic IPv4
• Static IPv6 / Dynamic IPv6
• PPPoE + Static IP (PPPoE Dual Access)
• PPPoE + Dynamic IP (PPPoE Dual Access)
• PPTP/L2TP + Static IP
• PPTP/L2TP + Dynamic IP
Network functions
• Support of IEEE 802.1X for Internet connection
• DHCP server/relay
• Advanced configuration of built-in DHCP server
• Stateful/Stateless mode for IPv6 address assignment, IPv6 prefix delegation
• Automatic obtainment of LAN IP address (for access point/repeater/client modes)
• DNS relay
• Dynamic DNS
• Static IP routing
• Static IPv6 routing
• IGMP Proxy
• RIP
• Support of UPnP IGD
• Support of VLAN
• WAN ping respond
• Support of SIP ALG
• Support of RTSP
• WAN reservation
• Autonegotiation of speed, duplex mode, and flow control/Manual speed and duplex mode setup for each Ethernet port
• Built-in UDPXY application
Firewall functions
• Network Address Translation (NAT)
• Stateful Packet Inspection (SPI)
• IP filter
• IPv6 filter
• MAC filter
• URL filter
• DMZ
• Prevention of ARP and DDoS attacks
• Virtual servers
• Built-in Yandex.DNS web content filtering service
VPN
• IPsec/PPTP/L2TP/PPPoE pass-through
• IPsec tunnels
Management
• Local and remote access to settings through TELNET/WEB (HTTP/HTTPS)
• Bilingual web-based interface for configuration and management (Russian/English)
• Support of D-Link Assistant application for Android and iPhone smartphones
• Notification on connection problems and auto redirect to settings
• Firmware update via web-based interface
• Automatic notification on new firmware version
• Saving/restoring configuration to/from file
• Support of logging to remote host
• Automatic synchronization of system time with NTP server and manual time/date setup
• Ping utility
• Traceroute utility
• TR-069 client
• SNMP agent
Wireless Module Parameters
Standards
• IEEE 802.11a/n/ac
• IEEE 802.11b/g/n
Frequency range
• 2400 ~ 2483.5MHz
• 5150 ~ 5350MHz
• 5650 ~ 5850MHz
Wireless connection security
• WEP
• WPA/WPA2 (Personal/Enterprise)
• МАС filter
• WPS (PBC/PIN)
Advanced functions
• Support of client mode
• WMM (Wi-Fi QoS)
• Information on connected Wi-Fi clients
• Advanced settings
• Smart adjustment of Wi-Fi clients
• Guest Wi-Fi / support of MBSSID
• Periodic scan of channels, automatic switch to least loaded channel
• Autonegotiation of channel bandwidth in accordance with environment conditions (20/40 Coexistence)
Wireless connection rate
• IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54Mbps
• IEEE 802.11b: 1, 2, 5.5, and 11Mbps
• IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, and 54Mbps
• IEEE 802.11n (2.4GHz/5GHz): from 6.5 to 300Mbps (from MCS0 to MCS15)
• IEEE 802.11ac (5GHz): from 6.5 to 433Mbps (from MCS0 to MSC9)
Transmitter output power

The maximum value of the transmitter output power depends upon the radio frequency regulations applied in your country
• 802.11a (typical at room temperature 25 °C)
15dBm at 6~24Mbps
14dBm at 36Mbps
13dBm at 48~54Mbps
• 802.11b (typical at room temperature 25 °C)
15dBm at 1, 2, 5.5, 11Mbps
• 802.11g (typical at room temperature 25 °C)
15dBm at 6~36Mbps
14dBm at 48~54Mbps
• 802.11n (typical at room temperature 25 °C)
2.4GHz
HT20/HT40
15dBm at MCS0~6
14dBm at MCS7
5GHz
HT20
15dBm at MCS0~5
14.5dBm at MCS6
14dBm at MCS7
HT40
15dBm at MCS0~4
14.5dBm at MCS5~6
14dBm at MCS7
• 802.11ac (typical at room temperature 25 °C)
HT20
15dBm at MCS0~4
14dBm at MCS5
13dBm at MCS6
12dBm at MCS7~8
HT40
15dBm at MCS0~2
14dBm at MCS3~4
13dBm at MCS5~6
12dBm at MCS7~9
HT80
15dBm at MCS0~4
14dBm at MCS5~6
13dBm at MCS7
12dBm at MCS8~9
Receiver sensitivity
• 802.11a (typical at PER < 10% (1000-byte PDUs) at room temperature 25 °C)
-84dBm at 6Mbps
-83dBm at 9Mbps
-81dBm at 12Mbps
-79dBm at 18Mbps
-76dBm at 24Mbps
-72dBm at 36Mbps
-68dBm at 48Mbps
-67dBm at 54Mbps
• 802.11b (typical at PER = 8% (1000-byte PDUs) at room temperature 25 °C)
-87dBm at 1, 2Mbps
-81dBm at 5.5, 11Mbps
• 802.11g (typical at PER < 10% (1000-byte PDUs) at room temperature 25 °C)
-85dBm at 6Mbps
-84dBm at 9Mbps
-82dBm at 12Mbps
-80dBm at 18Mbps
-77dBm at 24Mbps
-73dBm at 36Mbps
-69dBm at 48Mbps
-68dBm at 54Mbps
• 802.11n (typical at PER = 10% (1000-byte PDUs) at room temperature 25 °C)
2.4GHz, HT20
-85dBm at MCS0
-81dBm at MCS1
-80dBm at MCS2
-77dBm at MCS3
-73dBm at MCS4
-69dBm at MCS5
-68dBm at MCS6
-67dBm at MCS7
2.4GHz, HT40
-81dBm at MCS0
-79dBm at MCS1
-77dBm at MCS2
-74dBm at MCS3
-70dBm at MCS4
-66dBm at MCS5
-65dBm at MCS6
-64dBm at MCS7
5GHz, HT20
-85dBm at MCS0
-82dBm at MCS1
-80dBm at MCS2
-77dBm at MCS3
-73dBm at MCS4
-69dBm at MCS5
-65dBm at MCS6
-64dBm at MCS7
5GHz, HT40
-82dBm at MCS0
-79dBm at MCS1
-77dBm at MCS2
-74dBm at MCS3
-70dBm at MCS4
-66dBm at MCS5
-65dBm at MCS6
-64dBm at MCS7
• 802.11ac (typical at PER = 10% (1000-byte PDUs) at room temperature 25 °C)
HT20
-85dBm at MCS0
-82dBm at MCS1
-80dBm at MCS2
-77dBm at MCS3
-73dBm at MCS4
-69dBm at MCS5
-68dBm at MCS6
-67dBm at MCS7
-59dBm at MCS8
HT40
-83dBm at MCS0
-80dBm at MCS1
-78dBm at MCS2
-75dBm at MCS3
-71dBm at MCS4
-67dBm at MCS5
-66dBm at MCS6
-65dBm at MCS7
-60dBm at MCS8
-58dBm at MCS9
HT80
-80dBm at MCS0
-77dBm at MCS1
-75dBm at MCS2
-72dBm at MCS3
-68dBm at MCS4
-64dBm at MCS5
-63dBm at MCS6
-61dBm at MCS7
-56dBm at MCS8
-54dBm at MCS9
Modulation schemes
• 802.11a: BPSK, QPSK, 16QAM, 64QAM with OFDM
• 802.11b: DQPSK, DBPSK, DSSS, CCK
• 802.11g: BPSK, QPSK, 16QAM, 64QAM with OFDM
• 802.11n: BPSK, QPSK, 16QAM, 64QAM with OFDM
• 802.11ac: BPSK, QPSK, 16QAM, 64QAM, up to 256QAM with OFDM
Physical Parameters
Dimensions (L x W x H)
• 205 x 136 x 33 mm (8.1 x 5.4 x 1.3 in)
Weight
• 235 g (0.52 lb)
Operating Environment
Power
• Output: 12V DC, 0.5A
Temperature
• Operating: from 0 to 40 °C
• Storage: from -20 to 65 °C
Humidity
• Operating: from 10% to 90% (non-condensing)
• Storage: from 5% to 95% (non-condensing)
Delivery Package
• Router DIR-806A
• Power adapter DC 12V/0.5A
• Ethernet cable
• “Quick Installation Guide” (brochure)

Fiziksel Özellikler

Çözümler

Sipariş Bilgisi

DIR-806A/RU/R1A  AC750 Wi-Fi Router

Görseller

DIR-806A/R

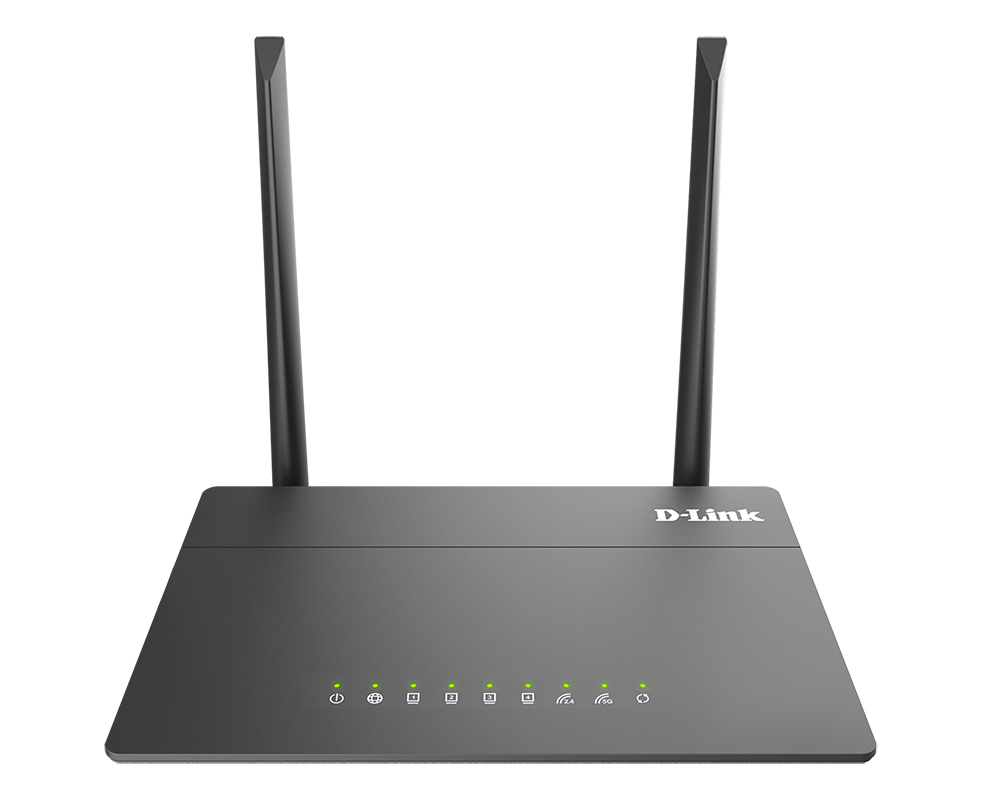

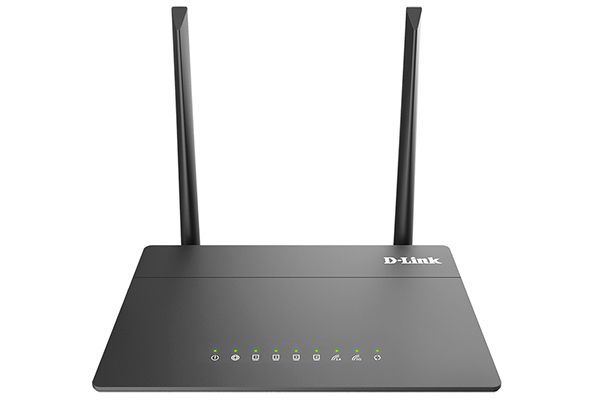

Front view

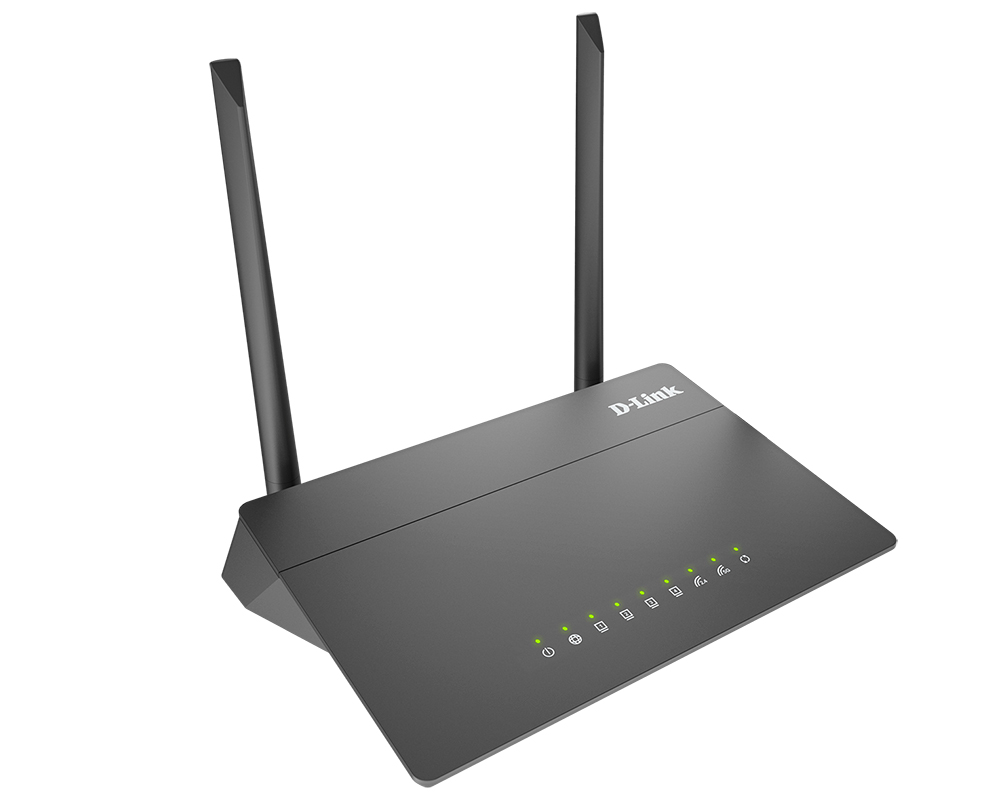

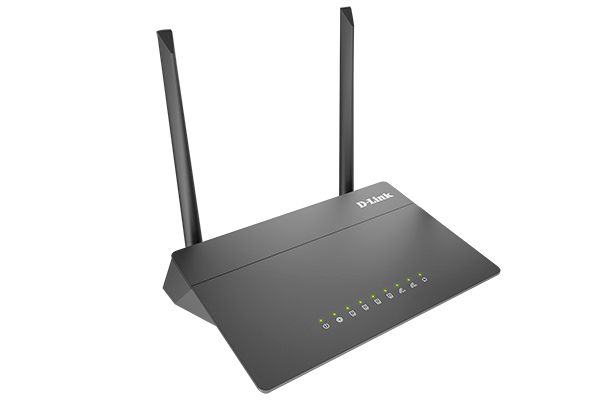

View from the right

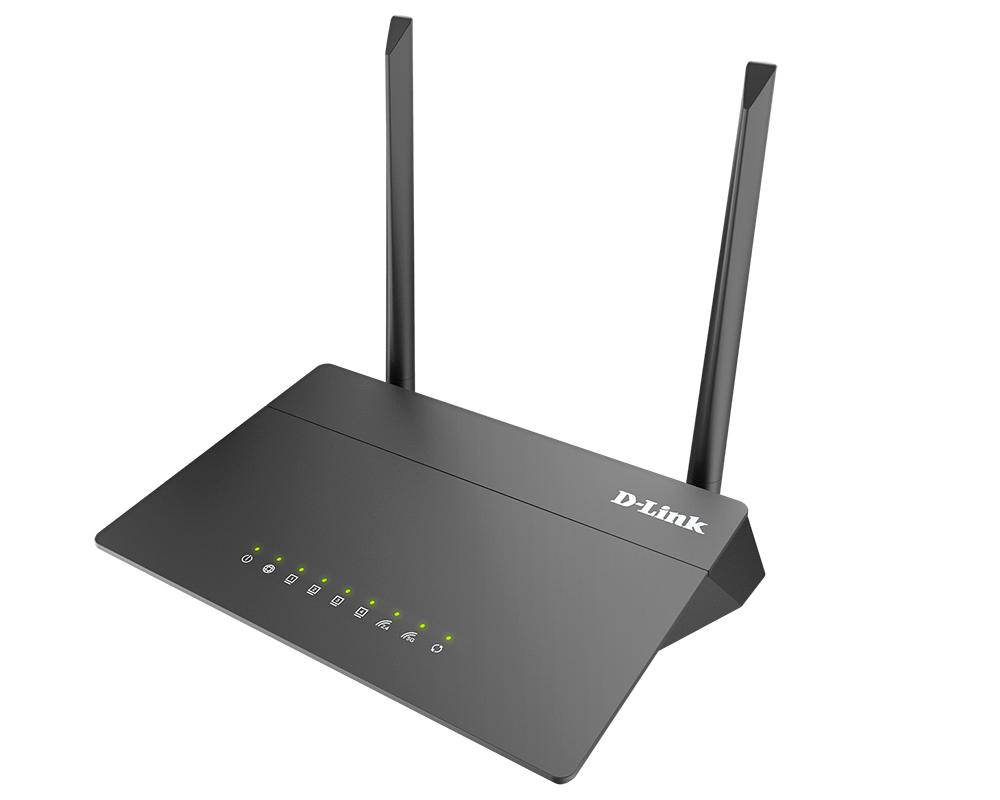

Left side view

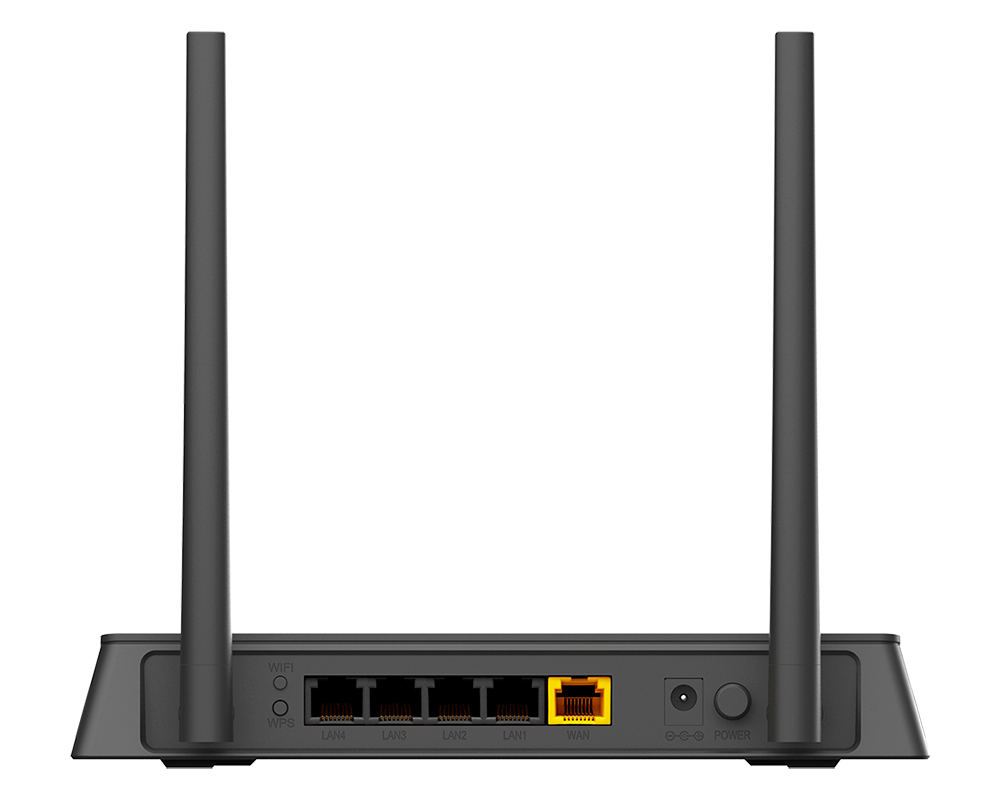

Back view
Front view
Back view
