DGS-1024D

24-Port Unmanaged Gigabit Switch

תאור

The D-Link DGS-1024D switch offers an economical way for SOHO and Small-to-Medium Businesses (SMB) to take advantage of Gigabit Ethernet speeds, while reducing energy consumption and minimizing noise output.

Gigabit Connectivity
The DGS-1024D switch brings the speed of Gigabit Ethernet to all ports for a truly high-speed network. If your network has a mix of legacy and modern connection interfaces, each port allows for standard Ethernet, Fast Ethernet, or Gigabit Ethernet connections. With this switch, the latest technology available on every computer and device connected to your network.

Improved Network Efficiency
The DGS-1024D switch incorporates several advanced features to help simplify and improve network management and efficiency. Flow Control throttles connections to ensure reliability during heavy usage periods by reducing packet loss and wasteful data retransmission. The switch also offers auto MDI/MDIX crossover for all ports as well as supporting up to 10,000 bytes jumbo frames.

Innovative Design
The DGS-1024D features a durable, compact metal case alongside a fanless design allowing for improved heat dissipation while maintaining silent operation. The switch is a rack-mountable and ideal for any business with demanding requirements and a small budget.

Green Technology
The DGS-1024D helps you conserve energy automatically through several methods. Link status detection automatically powers down ports that have no link, allowing the switches to save substantial amounts of power by cutting power usage for unused ports or any ports connected to computers that have been shut down.
Meanwhile, Energy-Efficient Ethernet (EEE) conserves energy by dynamically reducing power consumption when data activity is low. These environmentally friendly switches are also RoHS compliant, use recyclable packaging, and minimize the use of harmful substances. These green features combined, provide more energy savings and a longer product life, without sacrificing operational performance or functionality.

מאפיינים כללים

Device Interfaces
• 24 10/100/1000 Gigabit ports

LEDs
• Power
• Link/Activity/Speed (per port)

DIP Switches
• Energy-Efficient Ethernet (EEE)
• Flow Control
• Port Isolation and Storm Control

Standards
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.1p QoS
• IEEE 802.3x Flow Control supported for Full Duplex
• Auto-Negotiation
• IEEE 802.3az Energy-Efficiency Ethernet (EEE)

Data Transfer Rates
• Ethernet: 10 Mbps/20 Mbps (Half-duplex/Full-duplex)
• Fast Ethernet: 100 Mbps/200 Mbps (Half-duplex/Full-duplex)
• Gigabit Ethernet: 2000 Mbps (Full-duplex)

Network Cables
• Ethernet: 2-pair UTP Cat.3/4/5/5e, Unshield Twisted Pair (UTP) Cable
• Fast Ethernet: 2-pair UTP Cat.5/5e, Unshield Twisted Pair (UTP) Cable
• Gigabit Ethernet: 4-pair UTP Cat.5/ 5e, Unshield Twisted Pair (UTP) Cable

D-Link Green Features
• Power saving by link status and cable length

Security
• Storm Control

QoS (Quality of Service)
• 802.1p priority
• 8 queues

Cable Diagnostics
• Indicated through port LEDs

Protocol
• CSMA/CD

Packet Buffer RAM
• 512 KBytes per device

Filtering Address Table
• 8K MAC address per device

MAC Address Learning
• Self-learning, auto-aging

Forwarding Mode
• Store-and-forward

Switching Capacity
• 48 Gbps

Max. Forwarding Rate
• 35.71 Mpps

Pshysical Parameters
AC inputs
• Internal universal power supply: 100~240VAC; 50-60Hz, 0.3A Max.

Maximum Power Consumption
• 15.2 watts

Standby Power Consumption
• 6.98 watts

Maximum Heat Dissipation
• 51.86 BTU/hr

MTBF
• 485,750 hours

Acoustic Value
• 0dB(A) Fanless

Dimensions
• 280 x 126 x 44 mm

Weight
• 1.004 kg

Temperature
• Operating: 0° to 40°C
• Storage: -10° to 70°C

Humidity
• Operating: 0% to 95% (Non-condensing)
• Storage: 0% to 95%

Emission Certifications (EMI)
• ICES-003 Class A
• FCC Class A
• RCM Class A
• BSMI Class A
• CE Class A
• VCCI Class A
• CCC

Safety
• cUL/UL
• CE LVD
• CB
• CCC
• BSMI
• BSMI

תקנים

הורדות

DGS-1024D/I2  24-Port Unmanaged Gigabit Switch

איורים

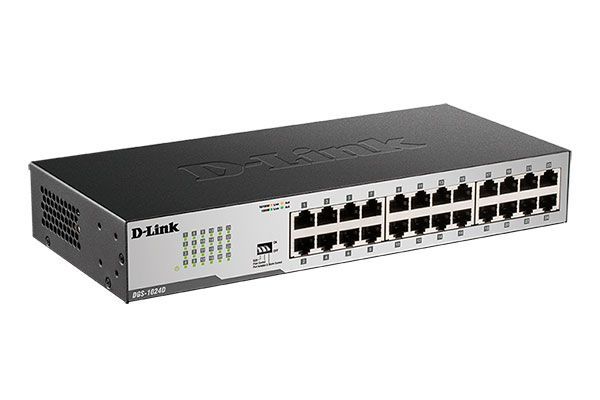

DGS-1024D/I

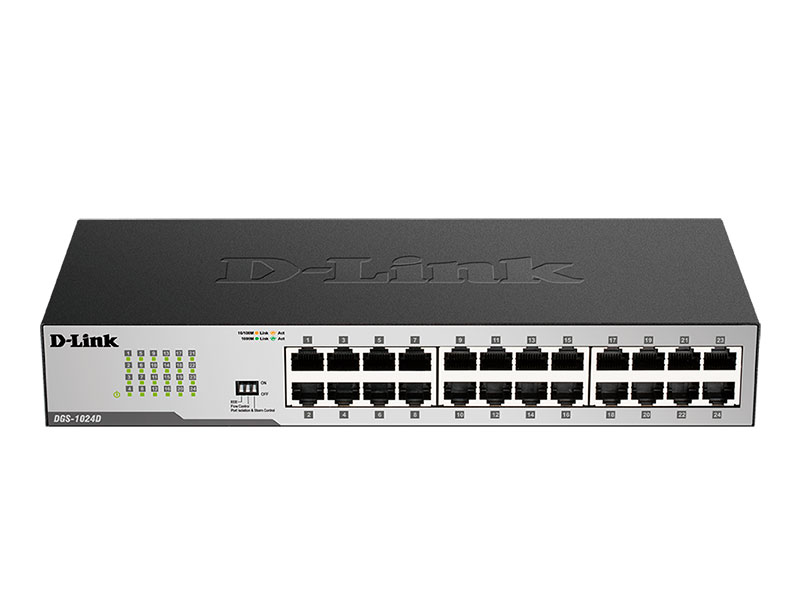

מראה מקדימה

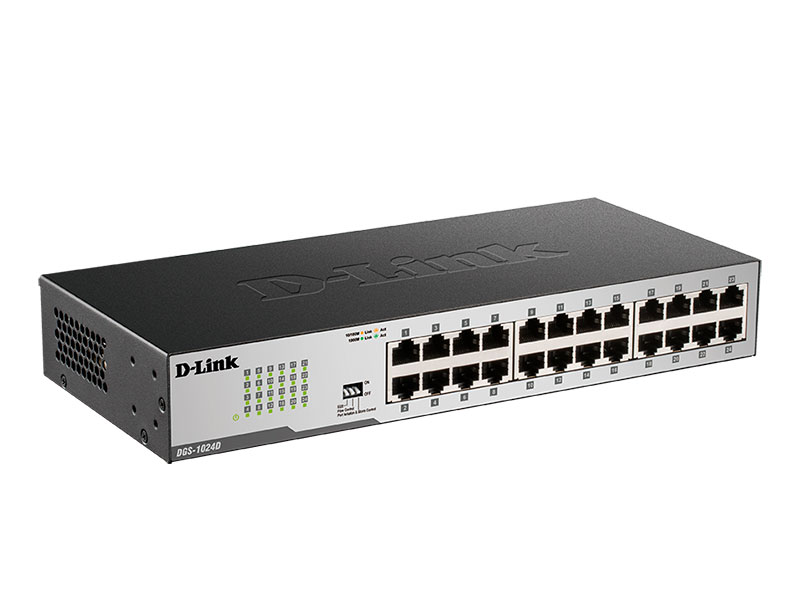

מראה מימין

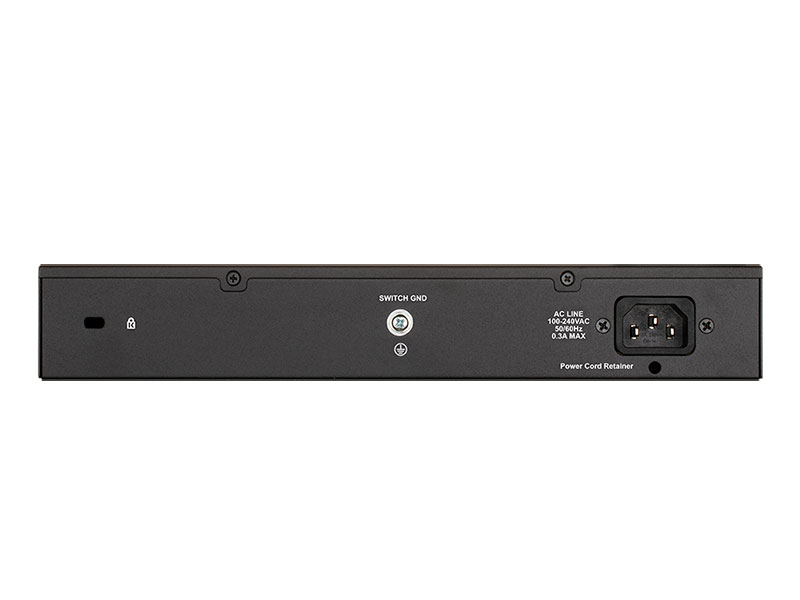

מראה מאחורה
