Passive 10G SFP + cable for direct connection, 7m


Twinax 10G SFP + Passive Cable is designed to connect one between a switch with 10G ports, while providing higher data rates than with standard SFP, which allows Ethernet network only run at speeds up to 2.5 Gb / s. This series of cables, including the model DEM-CB100S, DEM-CB300S, DEM-CB500S and DEM-CB700S, suitable for a very short distance (up to 7 meters) and is an ideal cost-effective solution for connecting switches and servers installed in one and the same or adjacent racks.
The ideal solution for high-performance systems
This 10G SFP + cable supports data transfer rates up to 10 Gbit / s, and provides extremely low latency and power consumption, compared with other types of cables, designed for standards such as 10GBASE-CX4 and 10GBASE-T (Category 6/6a ). Therefore, this cable is the perfect solution, providing high bandwidth over short distances, making it ideal for use, for example, in data centers.
The improved format Small Form-factor Pluggable
Twinax 10G SFP + passive cable D-Link uses an advanced format Small Form-factor Pluggable (SFP +). Form factor SFP + smaller in size than other form factors, such as Xenpak, X2 and 10G XFP, but provides a lower power dissipation and allow higher port density per the applicable device. In spite of the same size, SFP + connectors provide higher data rates than standard connectors SFP.
Considered 10G SFP + cable D-Link is equipped with both sides of the connector SFP +, thus eliminating the need for costly transceivers SFP +. Ultimately, the application of such a cable is a more economical option compared to fiber-optic cables that are used in conjunction with transceivers SFP +.
1 It is recommended to use passive twinax 10G SFP + cable for direct connection only with the products of D-Link.

Genel Özellikler


Sipariş Bilgisi

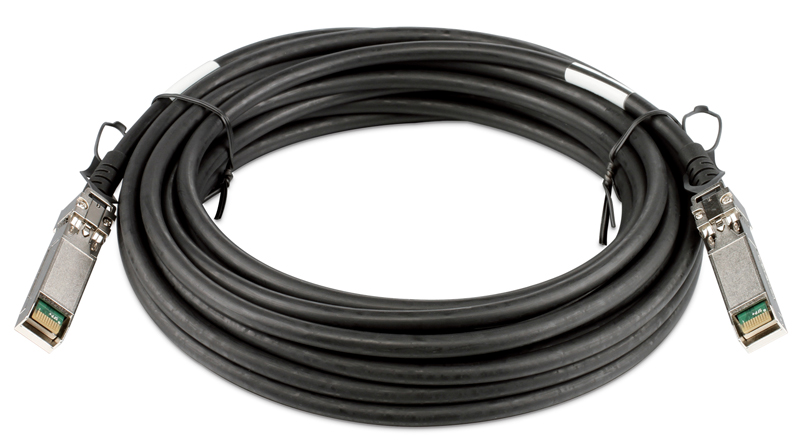

Front view
