Twinax 10G InfiniBand cables are designed to connect with each other Ethernet-enabled devices transfer rate 10 Gbit/s1, providing a wide bandwidth. This series includes five models of cables: DEM-CB50, DEM-CB100, DEM-CB300, DEM-CB50ICX and DEM-CB300CX. Twinax 10G InfiniBand cables are an ideal cost-effective solution to connect the D-Link switches and other devices installed in the same or adjacent racks, providing a wide bandwidth.
The ideal solution for high-performance systems
Twinax cables 10G InfiniBand D-Link supports data rates up to 10 Gbit / s at a distance of 3 m standard 10GBASE-CX4 provides data on the four pairs of copper twinax cable, resulting in a low-latency data transmission and supports Quality of Service (QoS), and resiliency (failover) InfiniBand. Thus, the data cables are the ideal solution, providing high bandwidth over short distances.

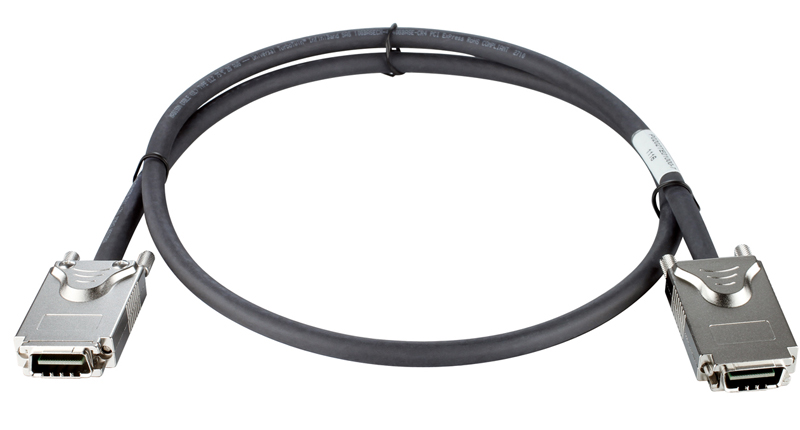

The cables used in this series InifiniBand 4X connectors with screw fasteners and clips for attachment. Model DEM-CB50, DEM-CB100 and DEM-CB300 fitted on both sides of the connector with screw fasteners and can be used as a physical stacking cables or cables to connect to the managed stackable Gigabit Ethernet Layer 2 Series D-Link DGS-3120 with higher-level devices . Model DEM-CB50ICX equipped on one side with a screw connector for connection to a switch DGS-3120 series, on the other - RCA connectors for attachment to connect to a media converter DMC-805X. Model DEM-CB300CX fitted on both sides of RCA connectors for mounting and can be used as a cable for the physical stacking switches, Gigabit Ethernet Layer 2 + DGS-3400 series and associated modules DEM-410CX.
Type of connectors
Screw mounting on both sides
AWG wire size
The ability to connect
Cable or physical stacking cable to connect the switch DGS-3120 series with the superior device (recommended)
The physical parameters
-40 To 85 C
• IEEE802.3ak 10GBASE-CX4
• UL 94
