Passive 10G CX4 cable for direct connection to a length of 3 m
Nereden Alınır


Twinax 10G InfiniBand cables are designed to connect with each other Ethernet-enabled devices transfer rate 10 Gbit/s1, providing a wide bandwidth. This series includes five models of cables: DEM-CB50, DEM-CB100, DEM-CB300, DEM-CB50ICX and DEM-CB300CX. Twinax 10G InfiniBand cables are an ideal cost-effective solution to connect the D-Link switches and other devices installed in the same or adjacent racks, providing a wide bandwidth.
The ideal solution for high-performance systems
Twinax cables 10G InfiniBand D-Link supports data rates up to 10 Gbit / s at a distance of 3 m standard 10GBASE-CX4 provides data on the four pairs of copper twinax cable, resulting in a low-latency data transmission and supports Quality of Service (QoS), and resiliency (failover) InfiniBand. Thus, the data cables are the ideal solution, providing high bandwidth over short distances.
10GBASE-CX4 connectors
The cables used in this series InifiniBand 4X connectors with screw fasteners and clips for attachment. Model DEM-CB50, DEM-CB100 and DEM-CB300 fitted on both sides of the connector with screw fasteners and can be used as a physical stacking cables or cables to connect to the managed stackable Gigabit Ethernet Layer 2 Series D-Link DGS-3120 with higher-level devices . Model DEM-CB50ICX equipped on one side with a screw connector for connection to a switch DGS-3120 series, on the other - RCA connectors for attachment to connect to a media converter DMC-805X. Model DEM-CB300CX fitted on both sides of RCA connectors for mounting and can be used as a cable for the physical stacking switch DGS-3400 series and DGS-3627/3627G/3650 using them in the accompanying module DEM-410CX.

Genel Özellikler

Fiziksel Özellikler
Type of connectors
Fastening with hooks on both sides
Cable Length
300 cm
AWG wire size
28 AWG
The ability to connect
The cable for the physical stacking switch DGS-3400 series and DGS-3627/3627G/3650 with module DEM-410CX (recommended)

The physical parameters

30 VAC
0.5 A
Operating temperature
-40 To 85 C
• IEEE802.3ak 10GBASE-CX4
• SFF-8470
• EIA-364
• UL 94


Sipariş Bilgisi

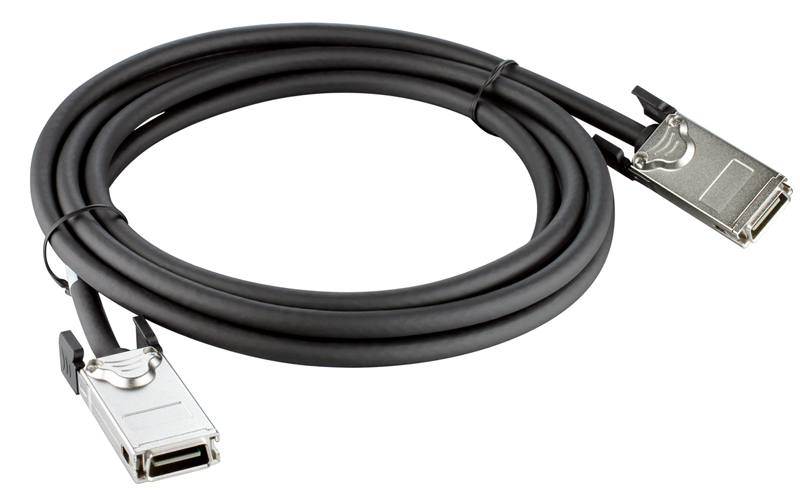

Front view
