24 Port 10/100 Switch


The DES-1024A 24 Port 10/100 Switch is a part of D-Link’s new series of SOHO (small office or home) devices that make use of power-saving features such as IEEE802.3az EEE, to provide energy savings, reduce heat, and extend product life while still giving you high speed and reliable connectivity.
Upgrade and Expand Your Network
The DES-1024A offers an economical way for SOHO and small to medium businesses (SMB) to benefit from high-speed networking. It provides twenty-four ports for easy expansion of your network and a quick way to upgrade your network to Fast Ethernet connectivity. Start enjoying quick downloads, smooth streaming media and instant sms communication with the DES-1024A.
Conserve Energy
The DES-1024A 24 Port 10/100 Switch helps you conserve energy through IEEE802.3az EEE, which works when both the switch and its link partner are EEE-compliant devices. This powersaving feature automatically puts the switch into a low-power idle state when the switch utilization is zero, allowing you to lower your energy usage and save on your energy costs.
Environmentally Friendly
The DES-1024A was designed with the environment in mind, and is compliant with Energy Star Level V, as well as with the stringent CEC and MEPS regulations that require the use of energy efficient power adapters. The switch is also built to follow RoHS standards to minimize use of hazardous materials, and uses recyclable packaging that helps reduce waste, complying with the WEEE directive. Its innovative design lets it run cool and quiet without sacrificing connectivity.

Genel Özellikler

Device Interfaces
• 24 10/100 Base-TX ports
• IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX compliance
• IEEE 802.3x Flow Control support
Data Transfer Rates
• Fast Ethernet
  • 100 Mbps Half-Duplex
  • 200 Mbps Full-Duplex
• Ethernet
  • 10 Mbps Half-Duplex
  • 20 Mbps Full-Duplex
Port Packet Filtering/ Forwarding Rate
• 148,800 pps for 100 M
• 14,880 pps for 10 M


Sipariş Bilgisi

DES-1024A/E1  24 Port 10/100 Switch

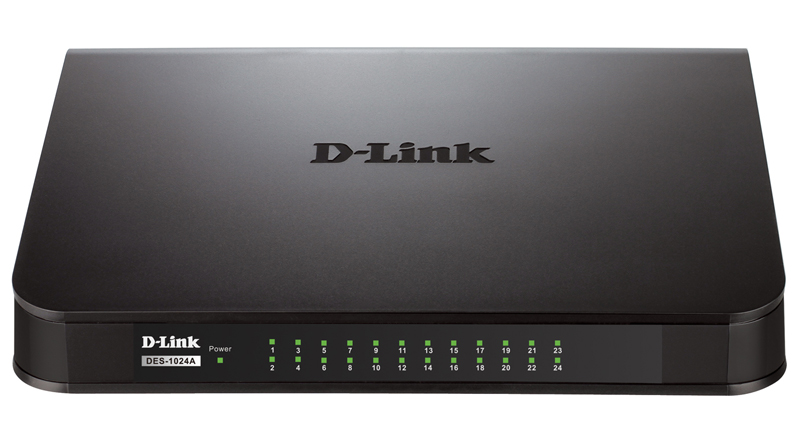

Front view

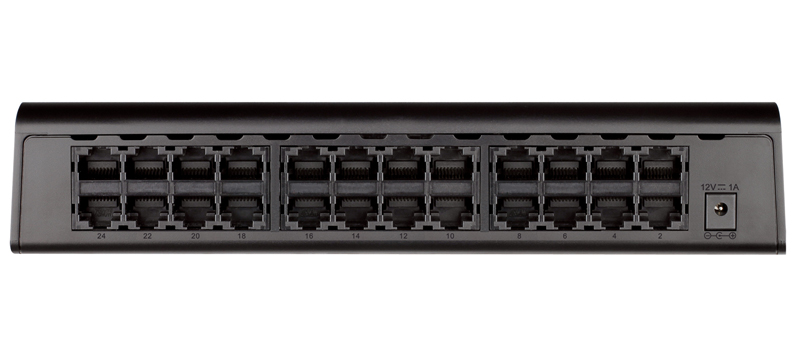

Back view
