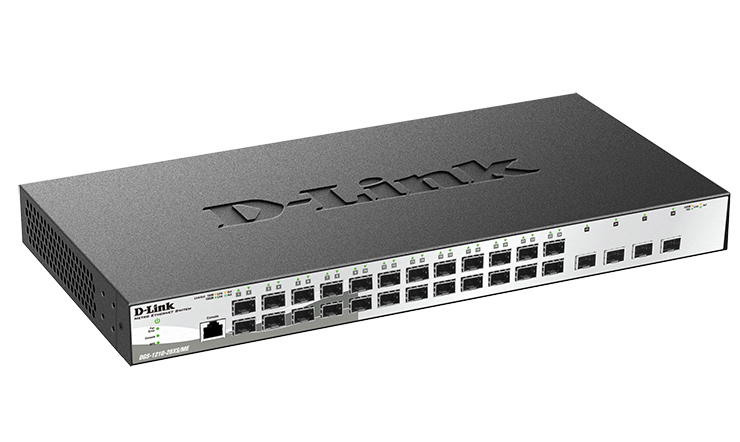

Managed layer 2 switch with 24-port 100/1000Base-X SFP and 4 ports 10GBase-X SFP+Nereden Alınır
The DGS-1210-28X/ME is the ideal solution for applications in Metro Ethernet. The switch features 24 10/100/1000Base-T and 4 ports 10GBase-X SFP+. Protection against static electricity ensures resilience against unexpected electrical spikes, while a full Suite of security features and authentication protects the network from internal and external threats. Fault tolerance/high performance The DGS-1210-28X/ME supports Spanning Tree protocols (STP): 802.1 D-2004 edition, 802.1 w and 802.1 s. STP protocols allow you to organize backup route data used in the event of a malfunction of the switch. The switch also supports 802.3 ad Link Aggregation, which enables the grouping of multiple ports and, consequently, increasing bandwidth and redundancy for higher availability. This model supports 802.1 p quality of service (QoS) that allows you to classify traffic in real-time on 8 queues using a strict priority processing and Weighted Round Robin (WRR). Packet classification is based on TOS, DSCP, MAC, IPv4, VLAN ID, port number, TCP/UDP, Protocol type, or content packages, user-defined, and provides a flexible adjustment for certain multimedia applications such as VoIP or IPTV. Security and authentication The DGS-1210-28X/ME supports access control 802.1 X port-based/host, the ability to create a guest VLAN, and authentication to RADIUS/TACACS+ for strict access control network. Function IP-MAC-Port Binding in the switch D-Link allows you to control the computer's access to the network based on their IP and MAC addresses, and port connection, extending, thus, the possibility of access control. Built-in function D-Link Safeguard Engine™ provides identification and prioritization of packets intended for processing by the processor switch to prevent malicious attacks that can disturb the normal functioning of the switch. In addition, the function of access control lists (ACL) enhances security and performance of your network. Management functions User-friendly Web interface provides easy management, and DHCP automatically provides advanced management, allowing administrators to pre-set configuration and save them to a TFTP server. Then separate the switch can obtain an IP address from the server and load the preset configuration settings. Protocol LLDP (Link Layer Discovery Protocol) allows network equipment to inform the local network about its existence and characteristics, helping you better manage the network topology. In addition, each switch port supports a cable diagnostic feature that helps detect faults, e.g., length or cable functionality. Traffic management and bandwidth The function of bandwidth management allows network administrators to define the throughput levels for each port increments up to 64 Kbit/s for incoming traffic. The DGS-1210-28X/ME also supports protection from broadcast storms, which minimizes the likelihood of virus attacks on the network. Port mirroring eases traffic diagnostics and helps administrators to monitor switch performance and alter it if necessary. Support IGMP Snooping reduces multicast traffic and to optimize network performance. Multicast The DGS-1210-28X/ME support the full feature set level 2 multicast, including IGMP Snooping, IGMP filtering, Fast Leave and configuration for multicast traffic on specific ports. Thanks to the support of this functionality the DGS-1210-28X/ME provides the opportunity to work with IPTV-services, enjoying a growing demand in the market. IGMP/MLD Snooping host-based enables the connection of multiple clients multicast group to one network interface. When using the ISM VLAN multicast traffic for the purpose of efficient expenditure of bandwidth transferred to a separate VLAN. The ISM VLAN profiles allow users to quickly and easily assign/change the preset settings on ports multicast registration information to subscriber.

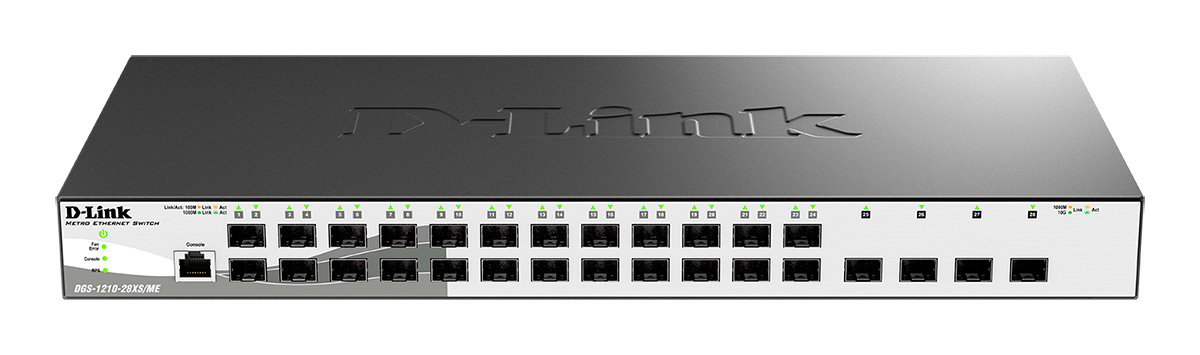

Hardware Interfaces • 24-port 100/1000Base-X SFP • 4-port 10GBase-X SFP+ • Auto-MDI/MDIX for all ports twisted-pair Indicators • Power (per device) • Console (per device) • Link/Active/Speed (per port) • Fan Error Network cables • UTP category 5, 5e cable (maximum 100m) Size • For installation in a standard 19-inch rack, 1U height Console port • RJ-45 Performance Switching matrix • 128 Gbps Speed forwarding 64-byte packets • 95,24 Mpps The MAC address table • 16K entries RAM • 256 MB DDR3 Buffer • 1.5 MB Flash memory • 32 MB Software Standards and functions • Protocol IEEE 802.3 10base-T Ethernet (copper twisted pair) • IEEE 802.3 U for 100Base-TX fast Ethernet (copper twisted pair) • IEEE 802.3 AB 1000BASE-T Gigabit Ethernet (twisted-pair copper) • IEEE 802.3 AZ • Auto-negotiation • Flow control IEEE 802.3 x • Ieee802.3ae 10 Gigabit Ethernet Layer 2 features • Table MAC-addresses: 16K records • Spanning Tree Protocol • 802.1 D STP WITH • 802.1 W RSTP • 802.1 s MSTP • Filtering user security • Root restriction • Detection loops loop detection • Port mirroring • Supports 1 mirroring group • Modes: one-to-one, many-to-one, flow-based (ACL) to the file for inbound traffic • Protocol Tunneling of L2 (L2PT) • Link aggregation • Compatible with 802.3 AD and • Max. 8 groups, 8 groups per device Multicast layer 2 • IGMP snooping • IGMP v1/v2 snooping, v3 awareness • Filtering/authentication IGMP • Supports 512 groups • Support IGMP snooping fast-leave VLAN-based bathrooms • Report suppression • MLD snooping • MLD v1, MLD v2 awareness • Supports 512 groups VLAN • 802.1 Q tagged VLAN • Group VLAN: • Max. 4094 groups • VLAN port-based • Enhanced performance • Asymmetric VLAN • Max. 256 dynamic VLAN with • 802.1 V Protocol VLANs • VLAN trunking • VLAN based on MAC addresses • Q-in-Q port-based • ISM VLAN Layer 3 features • Max. 256 ARP entries • Supports 255 static ARP entries in - • Supports gratuitous ARP Quality of service (QoS)for • So on the basis of: • Switch port • Priority queue 802.1 p • THE VLAN IDENTIFIER • MAC address • IPv4 or IPv6 address • Dscp field • HS • Protocol type • TCP or udp port • Class of IPv6 traffic • Bandwidth management: • Port-based (incoming, in increments up to 64 Kbit/s) • Based on the flow (incoming, in increments up to 64 Kbit/s) • For output queue (in increments up to 64 Kbit/s) • Processing queues: • Strict Priority • Weighted cyclic algorithm (wrr) • 8 output queues The access control lists (ACL)for • ACL based on: • Switch port • Priority queue 802.1 p • THE VLAN IDENTIFIER • MAC address • Ether type • HS • IPv4/V6-address • Dscp field • Protocol type • TCP or udp port for IPv4 or IPv6 • The ICMP Protocol • Class of IPv6 traffic • Up to 768 access rules for inbound traffic • ACL (allow/deny/mirror) • ACL schedule • Statistics ACL • Filtering CPU interface AAA • 802.1 x • Access control based on host • Access control port-based • Guest VLAN • Maintaining accounts with Radius • Accounting servers, tacacs+ • 4 level user account Safety • SSH Protocol v2 and • SSL v1/2/3 • Port security (supports up to 64 MAC addresses per port) • Detection of problems related to the coincidence network address • Binding IP-Mac-port binding (IMPB) • Check ARP packets • Data validation of IP packets • DHCP snooping for IPv6 • Protection from a broadcast/multicast/unicast storm • D-Link Motor Protection • DHCP server screening • Filtering DHCP clients • The prevention of ARP Spoofing • Protection against attacks protection user • Prevention of DOS attacks in • Segmentation of traffic OAM • 802.3 AH Ethernet OAM connection • Support 802.3 Ah link layer remote loopback and discovery (System log and SNMP) • 802.3 AH D-link extension: d-link Unidirectional connection Detection (DULD), (syslog and SNMP) • Diagnosis of cable Management • Web-interface (support IPv4 or IPv6) • Command line interface (CLI)for • Telnet server/client (supports IPv4 or IPv6) • TFTP-client (support IPv4 or IPv6) • Team registration • SNMP v1/v2c/V3, • SNMP traps • System log • RMON V1 • Rmon v2 in • Protocol lldp • A bootp and DHCP client • Automatic configuration via DHCP • Configuration file in text format • Trusted host • DHCP relay (IPv4 or IPv6) • Agent DHCP relay/local relay • DHCP relay option 12, 37, 38 • Option 82 DHCP relay • Adding a tag PPPoE circuit-ID • Trap/alarm/log severity control • Monitoring CPU • Sntp • Protocol lldp • Debugging commands • Password recovery • Password encryption • Bypass password MIB • RFC1213 MIB II • RFC1493 bridge MiB • RFC1907 snmpv2 MiB • RFC1757, 2819 RMON MIB CAN • RFC2021 RMONv2 MIB • RFC1398, 1643, 1650, 2358, 2665 ether-like MiB • RFC2674,4363 802.1 p MIB • RFC 2233, 2863 IF MIB • RFC 2618 Radius authentication client MiB • RFC 2620 Radius accounting client MiB • RFC 2925 ping & traceroute MIB • Private MiB • D-link zone defense MIB The IETF • RFC768 UDP • RFC 791 IP • RFC792 ICMPv4 • RFC2463, 4443 icmpv6 • RFC793 TCP • RFC826 ARP • RFC 2474, 3260 definition of the DS field in the IPv4 header and the IPv6 Protocol in • RFC 1321, 2284, 2865, 3580, 3748 Extensible authentication Protocol (eap) • RFC2571, RFC2572, RFC2573, RFC2574 SNMP IPv6 • RFC1981 path MTU discovery • RFC2460 IPv6 • RFC2461, 4861 neighbor discovery • RFC2462, 4862 IPv6 stateless Address auto-configuration • Neighbors RFC2464 IPv6 over Ethernet and definition • RFC3513, 4291, IPv6 addressing architecture • RFC2893, 4213 IPv4 / IPv6 dual stack Conditions Power input • 100-240 VAC, 50-60 Hz MTBF (hours) • 243 237 The noise level • 48,9 dB Heat dissipation • 115,17 BTU/h Max. power consumption • 33,4 W/16.7 W (in standby mode) The ventilation system • 2 Smart fan Temperature • Operating: -5 to 50 °C • Storage: -20 to 70 °C Humidity • Operating: 0% to 95% non-condensing • Storage: 0% to 95% non-condensing
