28-Port Layer 3 Stackable Managed Gigabit Switch including 4 10GbE Ports
Nereden Alınır


Overview The DGS-3630 Series Layer 3 Stackable Managed Switches are designed for Small Medium Businesses (SMBs), Small Medium Enterprises (SMEs), larger Enterprises, and ISPs. They deliver high performance, flexibility, fault tolerance, and advanced software features for maximum return on investment. With Gigabit Ethernet RJ45 and SFP ports, 10 GbE SFP+ ports, advanced security features, and advanced Quality of Service (QoS), the DGS-3630 Series can act as core, distribution or access layer switches. High port densities, switch stacking, and easy management make the DGS-3630 Series suitable for a variety of applications. Standard and Enhanced Software Images The DGS-3630 Series switches include the Standard Image (SI) software, and for additional functionality, they may be upgraded to Enhanced Image (EI) with a separately ordered license upgrade. The Standard Image provides core SMB and SME functionality, such as L2 switching, entry-level routing, L2 multicast, advanced QoS, Operations, Administration, and Maintenance (OAM), and robust security features. The Enhanced Image includes all the features from the Standard Image, and also supports full L3 routing for Enterprise integration, including OSPF, BGP, VRF-Lite and L3 multicast. This approach allows I.T. managers to deploy a lower cost L2/L2+ solution today, and upgrade to a L3 solution in the future if networking needs change and a full dynamic routing solution is required. High Availability and Flexibility The DGS-3630 Series switches support stacking technology, which combines multiple switches to form a single physical or virtual stack. This increases redundancy over multiple physical units, simplifies management, and provides a single IP address to manage all members in the stack. Up to 9 switches can be stacked using Direct Attach Copper (DAC) or fiber optic cables to make up to 432 Gigabit Ethernet ports available, allowing switching capacity to be increased with demand. The Switch Resource Management (SRM) feature allows the hardware table size to be changed, so that switch functions can be optimized based on the use of the switch. There are 3 modes: IP Mode, LAN Mode, and L2 VPN Mode, which modify the size of the Layer 2 and 3 tables for optimum efficiency. Security, Performance and Availability The DGS-3630 Series switches provide a complete set of security features including multi-layer Access Control Lists (ACLs) and 802.1X user authentication via TACACS+ and RADIUS. The DGS-3630 switches also offer extensive VLAN support, including GVRP and 802.1Q VLAN to enhance security and performance. A robust set of QoS features help ensure that critical network services such as Voice over IP and video conferencing are given high priority through the network. The D-Link Safeguard Engine increases the switches’ reliability, serviceability, and availability by preventing malicious flooding traffic caused by worms or virus attacks. D-Link Green Technology The DGS-3630 Series switches feature D-Link Green technology, which includes a power-saving mode, smart fan feature, reduced heat dissipation, and cable length detection. The power-saving feature automatically powers down ports that have no link or link partner, and ensures that LEDs are shut off when not needed. The smart fan3 feature allows for the built-in fans to automatically turn on only at a certain temperature, providing continuous, reliable, and ecofriendly operation of the switch. Versatile Management The DGS-3630 Series switches can be managed by the D-Link Network Assistant Utility, an industry-standard Command Line Interface (CLI), and an intuitive web-based Graphical User Interface (GUI) that enables administrators to set up and remotely manage their networks. Support for SNMP allows centralized management of a large number of devices, and out-of-band management is available via a dedicated console port. A mini-USB console port allows the DGS-3630 Series switches to be managed without any extra connectors, and a USB Type A port can be used to store logs, configuration, and firmware images. The DHCP auto-configuration and auto-image features can also be used to deploy multiple switches automatically, saving costs with larger deployments. Lifetime Warranty and NBD Replacement D-Link offers a Lifetime Warranty and Next Business Day (NBD) hardware replacement on the DGS-3630 Series of Layer 3 Stackable Managed Gigabit Switches to further its commitment to product quality and long-term customer confidence.

Genel Özellikler

Fiziksel Özellikler
Technical Specifications Interfaces • 10/100/1000BASE-T Ports • 20 (DGS-3630-28TC) • 44 (DGS-3630-52TC) • Gigabit SFP Ports • 20 (DGS-3630-28SC) • Combo 10/100/1000BASE-T or SFP Ports • 4 (all models) • 10 Gigabit SFP+ Ports • 4 (all models) • Console Port • RJ45 and Mini USB console ports for out-of-band CLI management • Management Port • 10/100/1000BASE-T RJ45 Ethernet for out-of-band IP management • Alarm Port • RJ45 • USB Port • USB 2.0 Type A • Optional Redundant Power Supply • DPS-500A Performance • Switch Capacity • 128 Gbps (DGS-3630-28TC) • 128 Gbps (DGS-3630-28SC) • 176 Gbps (DGS-3630-52TC) • Packet Forwarding Rate • 95.24 Mpps (DGS-3630-28TC) • 95.24 Mpps (DGS-3630-28SC) • 130.95 Mpps (DGS-3630-52TC) • Packet Buffer • 4 MBytes (DGS-3630-28TC) • 4 MBytes (DGS-3630-28SC) • 4 MBytes (DGS-3630-52TC) • MAC Address Table • 68K entries2 (DGS-3630-28TC) • 68K entries2 (DGS-3630-28SC) • 68K entries2 (DGS-3630-52TC) • IPv4 Routing Table • 16K entries (DGS-3630-28TC) • 16K entries (DGS-3630-28SC) • 16K entries (DGS-3630-52TC) • IPv6 Routing Table • 7K entries (DGS-3630-28TC) • 7K entries (DGS-3630-28SC) • 7K entries (DGS-3630-52TC) • IPv4 Forwarding Table • 32K entries2 (DGS-3630-28TC) • 32K entries2 (DGS-3630-28SC) • 32K entries2 (DGS-3630-52TC) • IPv6 Forwarding Table • 16K entries2 (DGS-3630-28TC) • 16K entries2 (DGS-3630-28SC) • 16K entries2 (DGS-3630-52TC) • Jumbo Frame Size • 12 KBytes (DGS-3630-28TC) • 12 KBytes (DGS-3630-28SC) • 12 KBytes (DGS-3630-52TC) Physical and Environmental • MTBF • 300,190 hours (DGS-3630-28TC) • 280,612 hours (DGS-3630-28SC) • 263,936 hours (DGS-3630-52TC) • Acoustics • 52.7 dB(A) (DGS-3630-28TC) • 56 dB(A) (DGS-3630-28SC) • 53.9 dB(A) (DGS-3630-52TC) • Heat Dissipation • 145 BTU/hr (DGS-3630-28TC) • 217 BTU/hr (DGS-3630-28SC) • 212 BTU/hr (DGS-3630-52TC) • Power Input • 100 to 240 VAC, 50/60 Hz • Max Power Consumption • 42.4 W (DGS-3630-28TC) • 63.6 W (DGS-3630-28SC) • 62.0 W (DGS-3630-52TC) • Standby Power Consumption • 28.1 W (DGS-3630-28TC) • 30.1 W (DGS-3630-28SC) • 36.0 W (DGS-3630-52TC) • Dimensions • 17.4 x 10.2 x 1.73 inches (441 x 260 x 44 mm) • Weight • 8.25 lbs (3.74 kg) (DGS-3630-28TC) • 8.36 lbs (3.79 kg) (DGS-3630-28SC) • 8.91 lbs (4.04kg) (DGS-3630-52TC) • Ventilation • 2 Smart Fans3 • Operating Temperature • 23°F to 122°F (-5°C to 50°C) • Storage Temperature • -40°F to 158°F (-40°C to 70°C) • Operating Humidity • 10% to 95% RH • Storage Humidity • 5% to 95% RH • Safety Certifications • cUL, CB, CE, CCC, BSMI • EMI/EMC • CE, FCC Class A, C-Tick, VCCI, BSMI, CCC Software Features Standard Image (SI) Stackability • Physical stacking • Up to 80G stacking bandwidth • Up to 9 switches in a stack • Ring/chain topology support • Virtual Stacking/clustering of up to 32 units • Supports D-Link single IP Management • Up to 20 Gbps stacking bandwidth L2 Features • MAC Address Table : up to 68K entries2 • Flow Control • 802.3x Flow Control when using Full Duplex • HOL Blocking Prevention • Spanning Tree Protocol • 802.1D STP • 802.1w RSTP • 802.1s MSTP • Root Guard • Loop Guard • Jumbo Frame: up to 12 KBytes • 802.1AX Link Aggregation • Max. 32 groups per device, 8 ports per group • ERPS (Ethernet Ring Protection Switching) version 2 • Port Mirroring • Supports One-to-One, Many-to-One • Supports Mirroring for Tx/Rx/Both • Supports 4 mirroring groups • Flow Mirroring • Supports Mirroring for Rx • VLAN Mirroring • RSPAN • L2 Protocol Tunneling VLAN • 802.1Q • 802.1v Protocol-based VLAN • Double VLAN (Q-in-Q) • Port-based Q-in-Q • Selective Q-in-Q • Port-based VLAN • MAC-based VLAN • Subnet-based VLAN • Private VLAN • VLAN Group • Max. 4K VLAN groups • Max. 4094 VIDs • Multicast VLAN (ISM VLAN for IPv4/IPv6) • Voice VLAN • Auto Surveillance VLAN • VLAN Trunking • GVRP: Up to 4K dynamic VLANs • Asymmetric VLAN L2 Multicast • MLD Snooping • MLD v1/v2 Snooping • Supports up to 4K MLD groups2 • Host-based MLD Snooping Fast Leave • Supports 64 static MLD groups • MLD Snooping Querier • Per VLAN MLD Snooping • MLD Proxy Reporting • IGMP Snooping • IGMP v1/v2/v3 • Supports up to 8K MLD groups2 • Supports 64 static IGMP groups • Per VLAN IGMP Snooping • IGMP Snooping Querier • Host-based IGMP Snooping Fast Leave • PIM Snooping L3 Features • IPv4 ARP/IPv6 ND: support up to 32K/16K2 • 512 Static ARP • Gratuitous ARP • IP Interface • Supports 256 interfaces • Loopback Interface • Proxy ARP • Support local ARP proxy • IPv6 Tunneling • Static • ISATAP • GRE • 6to4 • VRRP v2/v3 • IP Helper L3 Routing • Supports 16K hardware routing entries shared by IPv4/IPv6 • 1 entry consumed by each IPv4 route • 2 entries consumed by each IPv6 route • Supports up to 32K hardware L3 forwarding entries shared by IPv4/IPv62 • 1 entry consumed by each IPv4 route • 2 entries consumed by each IPv6 route • Static Route • Max. 512 IPv4 entries • Max. 256 IPv6 entries • IPv4/IPv6 Default Route • PBR (Policy-based Route) • Null Route • Route Preference • Route Redistribution • Graceful Restart (GR) Helper • BFD (Bidirectional Forwarding Detection) • IPv4/v6 Static Route • RIP • VRRP • RIPv1/v2/ng L3 Mulitcast • IGMP/MLD Filtering QoS (Quality of Service) • 802.1p • 8 queues per port • Queue Handling • Strict Priority (SP) • Weighted Round Robin (WRR) • Strict + WRR • Weighted Deficit Round Robin (WDRR) • Congestion Control • Weighted Random Early Detection (WRED) • 802.1Qbb Priority-based Flow Control (PFC) for 10 GbE port • Bandwidth Control • Port-based (Ingress/Egress, min. granularity 8 Kb/s) • Flow-based (Ingress/Egress, min. granularity 8 Kb/s) • Per queue bandwidth control (min. granularity 8 Kb/s) • Policy Map • Remark 802.1p priority • Remark IP precedence/DSCP • Time based QoS • CoS based on: • Switch Port • Inner/ outer 802.1p Priority • Inner/ outer VID • MAC address • Ether Type • IP address • ToS/IP Preference • DSCP • Protocol Type • TCP/UDP port • IPv6 Traffic Class • IPv6 Flow Label • Three Color Marker • trTCM • srTCM ACL (Access Control List) • ACL based on: • 802.1p priority • VID • MAC address • EtherType • LLC • VLAN • IP address • IP preference/ToS • DSCP mask • Protocol type • TCP/UDP port number • IPv6 Traffic Class • IPv6 Flow Label • Max. ACL entries: • Ingress (hardware entries): 4K • Egress (hardware entries): 1K • VLAN Access Map Numbers: 3K • Time-based ACL Green • Energy Effeciency Ethernet (EEE) • Power Saving By Link Status • Power Saving By Cable Length • Power Saving By LED Shut-Off • Power Saving By Port Shut-Off • Power Saving By System Hibernation Security • Port Security • Supports up to 12K MAC addresses per port/VLAN/system • Broadcast/Multicast/Unicast Storm Control • D-Link Safeguard Engine • DHCP Server Screening • Dynamic ARP Inspection • IP Source Guard • DHCP Snooping • IPv6 Snooping • Dynamic ARP Inspection (DAI) • DHCPv6 Guard • IPv6 Route Advertisement (RA) Guard • IPv6 ND Inspection • Duplicate Address Detection (DAD) • ARP Spoofing Prevention • Max. 64 entries • L3 Control Packet Filtering • Unicast Reverse Path Forwarding (URPF) • Traffic Segmentation • SSL • Supports TLS 1.0/1.1 • Supports IPv4/IPv6 access • SSH • Supports SSH v2 • Supports IPv4/IPv6 access • BPDU Attack Prevention • DOS Attack Prevention • NetBIOS/NetBEUI filtering AAA • 802.1X Authentication • Supports Port/Host-based access control • Identity-driven Policy Assignment • Dynamic VLAN Assignment • Bandwidth Control Assignment • ACL Assignment • Web-based Access Control (WAC) • Supports Port/Host-based access control • Identity-driven Policy Assignment • Dynamic VLAN Assignment • Bandwidth Control Assignment • ACL Assignment • Support IPv4/IPv6 access • Support HTTPS • Compound Authentication • MAC-based Access Control (MAC) • Supports Port/Host-based access control • Identity-driven Policy Assignment • Dynamic VLAN Assignment • Bandwidth Control Assignment • ACL Assignment • Guest VLAN • Microsoft® NAP • Support 802.1X NAP • Support DHCP NAP • Privilege Level for Management Access • RAIDUS and TACACS+ Authentication • Authentication Database Failover • RADIUS/TACACS+ Accounting OAM (Operations, Administration and Maintenance) • Cable Diagnostics • 802.3ah Ethernet Link OAM • D-Link Unidirectional Link Detection (DULD) • Dying gasp • 802.1ag Connectivity Fault Management (CFM) • Y.1731 OAM • Optical Transceiver Digital Diagnostic Monitoring (DDM) Management • NTPv3/v4 • Precision Time Protocol (PTP) • Web-based GUI • Support IPv4/IPv6 access • Support SSL (HTTPS) • Command Line Interface (CLI) • Telnet Server for IPv4/IPv6 access • Telnet Client for IPv4/IPv6 • SNMP • Support v1/v2c/v3 • Support IPv4/IPv6 access • SNMP Trap • TFTP Client for IPv4/IPv6 • FTP Client for IPv4/IPv6 • IPv4 SFTP Server • RCP • System Log for IPv4/IPv6 Syslog Server • SMTP • RMONv1 • Supports 1,2,3,9 groups • RMONv2 • Supports ProbeConfig group • Command Logging • LLDP/LLDP-MED • D-Link Discover Protocol (DDP) • DHCP Client option 12 • DHCP Auto-configuration • DHCP Auto-image • DHCP Relay option 60/61/62/18/37/125 • DHCP/DHCPv6 Local Relay • DHCP Server • Support IPv4/IPv6 address assignment • DHCPv6 Prefix Delegation (PD) • Multiple Images/ Multiple Configurations • DNS Relay for IPv4/IPv6 • DNS Client for IPv4/IPv6 • Debug Command • Password Recovery/ Encryption • Ping/ Traceroute for IPv4/IPv6 • Microsoft® Network Load Balancing (NLB) • Switch Resource Management (SRM) • sFlow • D-Link License Management System (DLMS) Enhanced Image (EI) (includes all SI features plus the following) VLAN • Super VLAN L3 Routing • BGP • BGPv4/v4+ • 4bytes AS • Text/MD5 for BGPv4 • VRF-Lite • IPv4 Static Route • RIPv1/v2 • OSPFv2 • BGPv4 • Bidirectional Forwarding Detection (BFD) for OSPF • OSPF • OSPF v2/v3 • OSPF passive interface • Stub/NSSA area • OSPF equal cost route • Text/MD5 for OSPFv2 L3 Mulitcast • IGMPv1/v2/v3 • MLDv1/v2 • IGMP/MLD Proxy • DVMRPv3 • PIM-DM/SM/SSM/SDM • SSM Mapping for IPv4/IPv6 • Multicast Source Discovery Protocol (MSDP) MIB/IETF Standards • RFC1065, RFC1066, RFC1155, RFC1156, RFC2578 MIB Structure • RFC1212 Concise MIB Definitions • RFC1213 MIBII • RFC1215 MIB Traps Convention • RFC1493, RFC4188 Bridge MIB • RFC1157, RFC2571, RFC2572, RFC2573, RFC2574, RFC2575, RFC2576 SNMP MIB • RFC1442, RFC1901, RFC1902, RFC1903, RFC1904, RFC1905, RFC1906, RFC1907, RFC1908, RFC2578, RFC3418, RFC3636 SNMPv2 MIB • RFC271, RFC1757, RFC2819 RMON MIB • RFC2021 RMONv2 MIB • RFC1398, RFC1643, RFC1650, RFC2358, RFC2665, RFC3635 Ether-like MIB • RFC2668 802.3 MAU MIB • RFC2674, RFC4363 802.1p MIB • Interface Group MIB • RFC2618 RADIUS Authentication Client MIB • RFC4022 MIB for TCP • RFC4113 MIB for UDP • RFC2620 RADIUS Accounting Client MIB • RFC2925 Ping & TRACEROUTE MIB • TFTP uploads and downloads (D-Link MIB) • Trap MIB (D-Link MIB) • RFC4293 IPv6 MIB • RFC4293 ICMPv6 MIB • Entity MIB • RIPv2 MIB • OSPF MIB • IPv4 Multicast Routing MIB • PIM MIB for IPv4 • IP Forwarding Table MIB • RFC4293 IPv6 SNMP Mgmt Interface MIB • DDM MIB (D-Link MIB) • Private MIB • MIB for D-Link Zone Defense • DDP MIB • LLDP-MED MIB • RFC791 IP • RFC768 UDP • RFC793 TCP • RFC792 ICMPv4 • RFC2463, RFC4443 ICMPv6 • RFC826 ARP • RFC1338, RFC1519 CIDR • RFC2474, RFC3168, RFC3260 Definition of the DS Field in the IPv4 and IPv6 Headers • RFC1321, RFC2284, RFC2865, RFC2716, RFC1759, RFC3580, RFC3748 Extensible Authentication Protocol (EAP) • RFC2571 SNMP Framework • RFC2572 SNMP Message Processing and Dispatching • RFC2573 SNMP Applications • RFC2574 User-based Security Model for SNMPv3 • RFC1981 Path MTU Discovery for IPv6 • RFC2460 IPv6 • RFC2461, RFC4861 Neighbor Discovery for IPv6 • RFC2462, RFC4862 IPv6 Stateless Address Autoconfiguration • RFC2464 IPv6 over Ethernet and definition • RFC2767 Dual Stack Hosts using the ‘Bump-In-the-Stack’ Technology • RFC3513, RFC4291 IPv6 Addressing Architecture • RFC2893, RFC4213 IPv4/IPv6 dual stack function • RFC3484 Default Address Selection for Internet Protocol version 6 Ordering Information DGS-3630-28TC/SI 20 10/100/1000BASE-T ports + 4 Combo 10/100/1000BASE-T/SFP ports + 4 10 GbE SFP+ ports L3 Stackable Managed Switch with Standard Image DGS-3630-28SC/SI 20 SFP ports + 4 Combo 10/100/1000BASE-T/SFP ports + 4 10 GbE SFP+ ports L3 Stackable Managed Switch with Standard Image DGS-3630-52TC/SI 44 10/100/1000BASE-T ports + 4 Combo 10/100/1000BASE-T/SFP ports + 4 10 GbE SFP+ ports L3 Stackable Managed Switch with Standard Image Warranty • Lifetime Optional License Upgrades DGS-3630-28TC-SE-LIC DGS-3630-28TC Standard Image to Enhanced Image Upgrade License DGS-3630-28TC-SE-LIC DGS-3630-28SC Standard Image to Enhanced Image Upgrade License DGS-3630-28TC-SE-LIC DGS-3630-52TC Standard Image to Enhanced Image Upgrade License Optional 10 Gpbs SFP+ Optical Transceivers DEM-431XT-DD 10GBASE-SR Transceiver, DDM, 80/300M DEM-432XT-DD 10GBASE-LR Transceiver, DDM, 10KM DEM-435XT-DD 10GBASE-LRM Transciver, DDM, 220M Optional 1 Gpbs SFP Optical Transceivers DGS-712 1000BASE-T SFP Transceiver DEM-310GT 1000BASE-LX SFP Transceiver, 10KM DEM-311GT 1000BASE-SX SFP Transceiver, up to 550M Optional 10 Gpbs Direct Attach Copper (DAC) Cables DEM-CB100S 1M (40”) 10G Direct Attach Cable for Data/Stacking DEM-CB300S 3M (118”) 10G Direct Attach Cable for Data/Stacking Optional Redundant Power Supply DPS-500A Redundant Power Supply Unit, 140 Watt RPSU Optional Management Software DV-700 D-View 7 Network Management System DV-700-N25-LIC D-View 7 NMS - 25 Node License Upgrade DV-700-N50-LIC D-View 7 NMS - 50 Node License Upgrade DV-700-N100-LIC D-View 7 NMS - 100 Node License Upgrade DV-700-N250-LIC D-View 7 NMS - 250 Node License Upgrade DV-700-N500-LIC D-View 7 NMS - 500 Node License Upgrade DV-700-N1000-LIC D-View 7 NMS - 1000 Node License Upgrade DV-700-P5-LIC D-View 7 NMS - 5 Probe License Upgrade DV-700-P25-LIC D-View 7 NMS - 25 Probe License Upgrade 1 Stacking cable and USB flash card not included. 2 Based on maximum value of Switch Resource Management (SRM). 3 By default, the fan speed is low. When the temperature inside the chassis is over 36°C, the fans switch to high speed until the temperature drops below 33°C. 4 Limited Lifetime Warranty available in USA only.


Sipariş Bilgisi

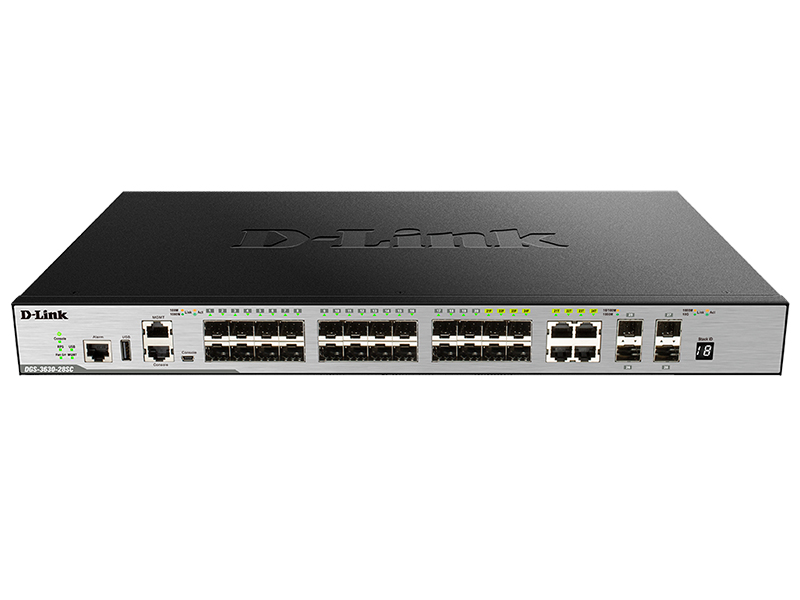

Front view

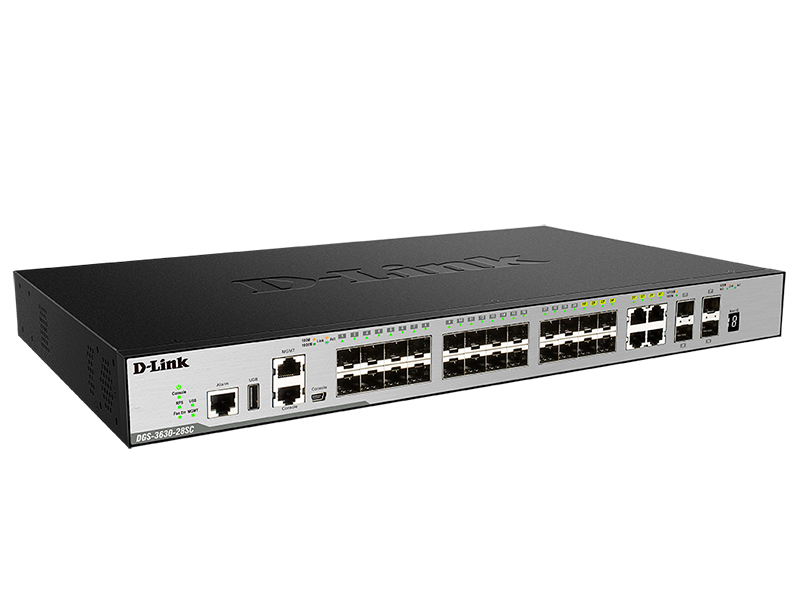

View from the right

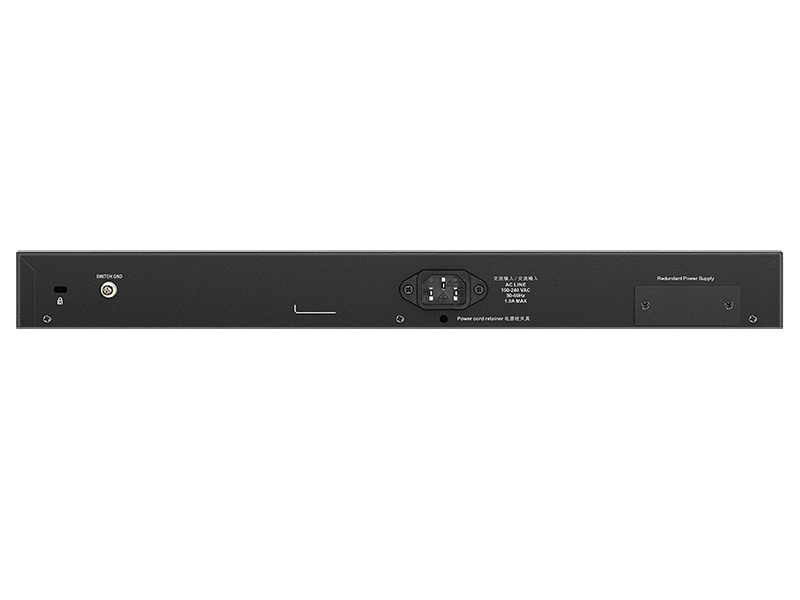

Back view
