24 Port Gigabit + 2 SFP+ Unmanaged Switch
Nereden Alınır


The DGS-1026X 24 Port Gigabit + 2 SFP+ Unmanaged Switch includes high bandwidth connections, plug-and-play installation, and support for a variety of media types. A fanless design, Gigabit access speeds, and energy efficiency features make the DGS-1026X suitable for office environments, while SFP+ connections, fiber support, and Direct Attach Cable (DAC)* compatibility make the DGS-1026X equally suited to enterprise deployments.
High Speed Connectivity
With up to 10 Gbps network connectivity, the DGS-1026X is ready to handle your most bandwidth intensive applications. Gigabit access ports ensure that clients can connect at the maximum possible speed, and 10 Gbps uplinks remove network bottlenecks. With support for fiber and DAC connections, the DGS-1026X is ready to meet any future bandwidth requirements.
Energy Efficient
Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE), the DGS-1026X consumes less energy by cutting down on power consumption when port utilization is low. The DGS-1026X also features D-Link Green Technology, which helps save energy automatically. The switch monitors the link status of each port and significantly reduces power consumption of the port when there is no link or network activity detected. It also detects the cable length in use, and dynamically adjusts the power output of the switch port, reducing the power required to only what is necessary for the installation.
Easy Setup
The DGS-1026X is plug-and-play, and requires no configuration to set up and use. Support for auto MDI/MDIX removes the need for crossover cables, so expanding your existing network is easy and straightforward. Auto-negotiation automatically detects the link speed and duplex of a device, and adjusts the port settings for maximum compatibility and performance.

Genel Özellikler

Number of Ports
• 24 x 10/100/1000 Mbps ports
• 2 x 10 Gbps SFP+ ports
• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• IEEE 802.3z
• IEEE 802.3x Flow Control
• IEEE 802.3az Energy Efficient Ethernet (EEE)
• IEEE 802.3z 1000BASE-X Gbps Ethernet over fiber optic at 1 Gbps
• IEEE 802.3ae 10 Gigabit Ethernet over fiber
Switching Capacity
• 88 Gbps switching fabric
Max. Forwarding Rate
• 65.47 Mpps Media
Interface Exchange
• Auto MDI/MDI-X
Transmission Method
• Store-and-forward
MAC Address Table
• 16K entries
Packet Buffer Memory
• 12 Mbits
Diagnostic LEDs
• Power (per unit)
• Link/Activity/Speed (per port)
Physical Parameters
• 1.7 kg
• 440 x 208 x 44 mm
Power Input
• AC Input: 100 to 240 V AC, 50/60 Hz
Power Consumption
• Maximum:
  AC: 18.2 W
  DC: 14.59 W
• Standby:
  AC: 6.4 W
  DC: 5.4 W
• 1 127 981 hours
Heat Dissipation
• 62.10 BTU/h
• Operating: 0° to 50°C
• Storage: -10° to 70°C
• Operating: 0 to 95% non-condensing
• Storage: 0% to 95% non-condensing
• CE
• RoHS
• EN 60950-1
• IEC 60950-1
* The maximum cable length supported is 1 meter.

Fiziksel Özellikler


Sipariş Bilgisi

DGS-1026X   24 Port Gigabit + 2 SFP+ Unmanaged Switch

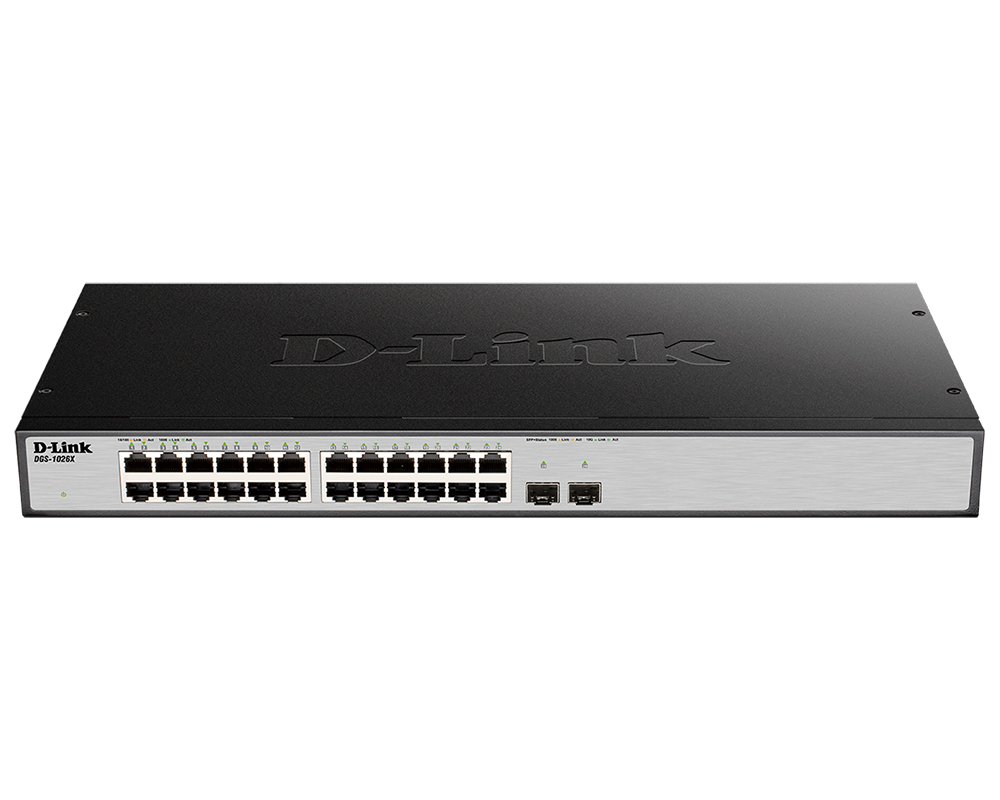

Front view

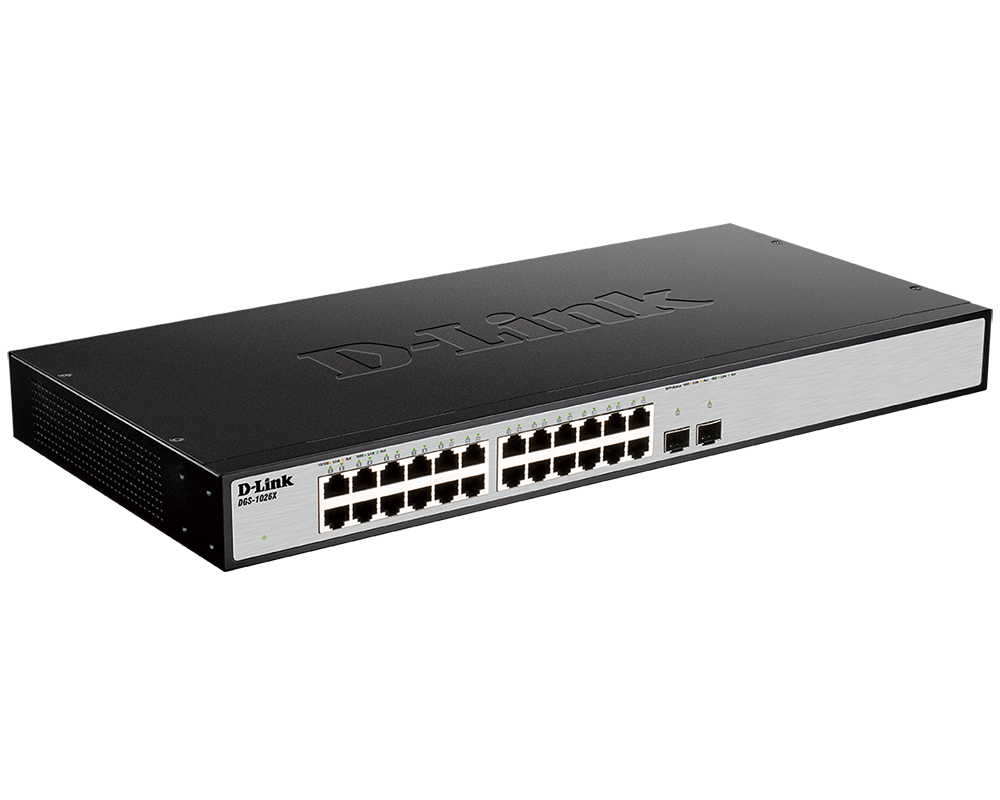

View from the right

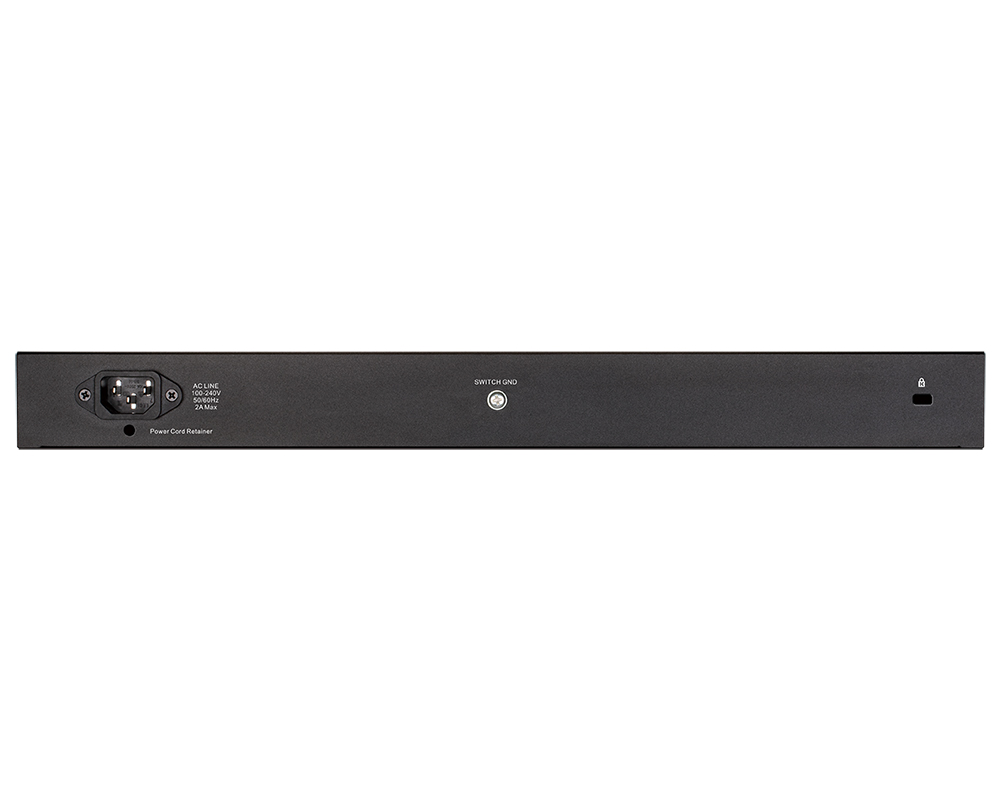

Back view
