DIS-PWR40ACProje

External AC power adapter (40 W) for DIS-200G-12S switch
Nereden Alınır

Tanımlama

The external AC adapter AC DIS-PWR40AC is an efficient and reliable device that allows the DIS-200G-12S to be powered.

Genel Özellikler


Fiziksel Özellikler
Hardware
output power
• 40 W
Range of input voltages
• 90 V to 264 VAC
Frequency range of input mains voltage
• 47 Hz to 63 Hz
Max. input current
• 1.1 A at 115 V AC
• 0.8 A at 230 VAC
Exit
• 12 VDC
Efficiency
• 86%
Dimensions (L x W x H)
• 110 x 50 x 32 mm
The weight
• 0.65 kg
terms of Use
MTBF (hours)
• 100,000
Temperature
• Operating: 0 to +40 ° C
• Storage: -20 to +75 ° С
Humidity
• During operation: from 10 to 90% (without condensation)
• When stored: from 5 to 95% (without condensation)
Compatibility
• Switch DIS-200G-12S

Çözümler

Sipariş Bilgisi

Görseller

DIS-PWR40AC/A

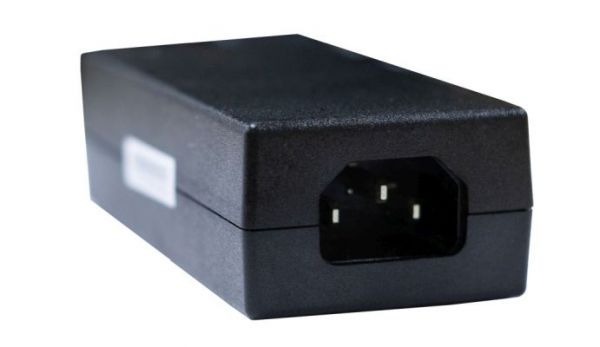

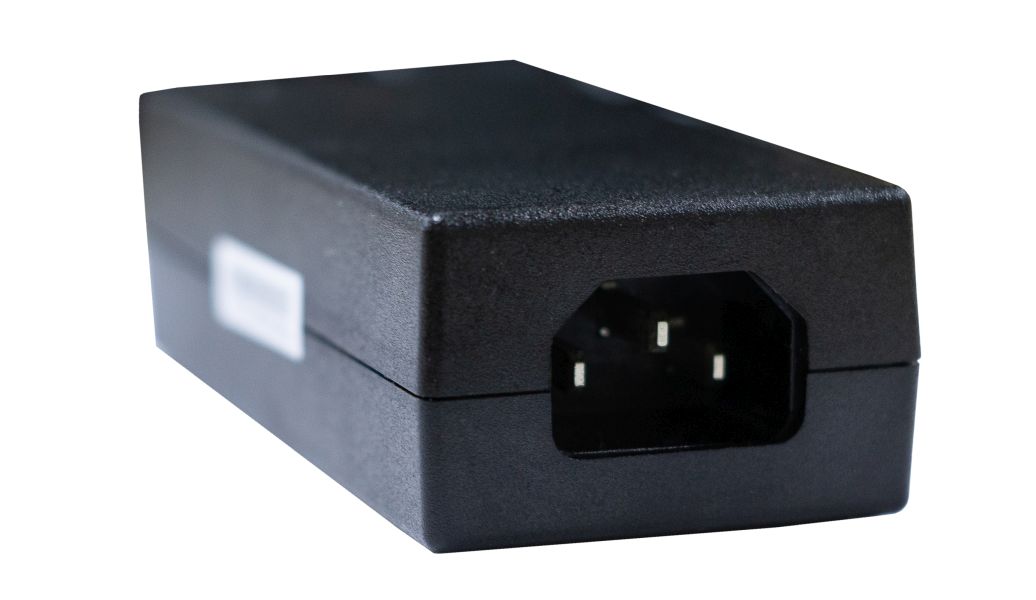

Front view

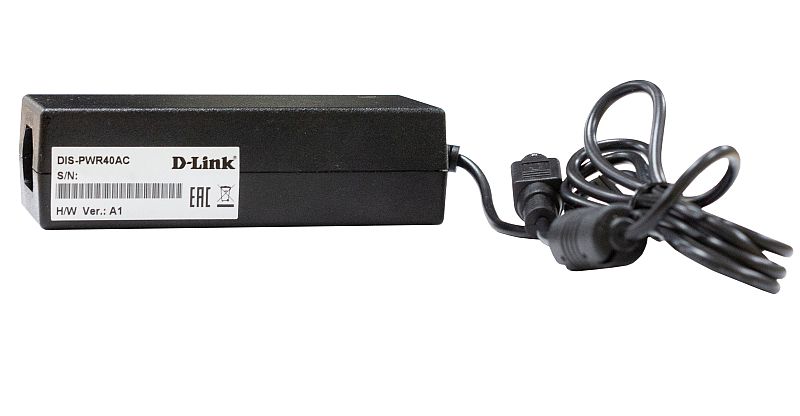

View from the right

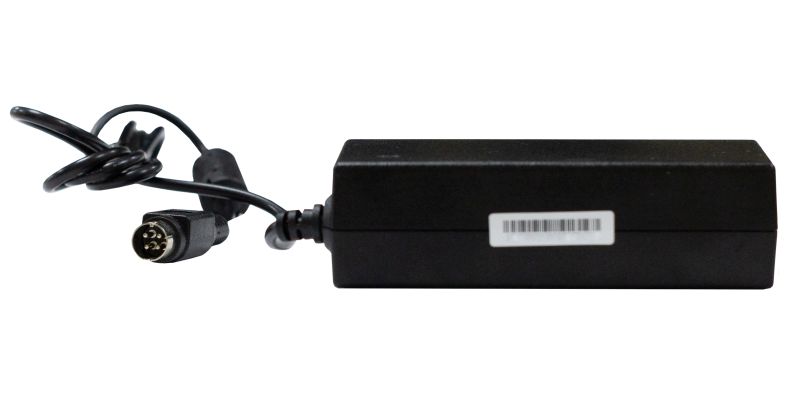

Left side view
DIS-PWR40AC/RU

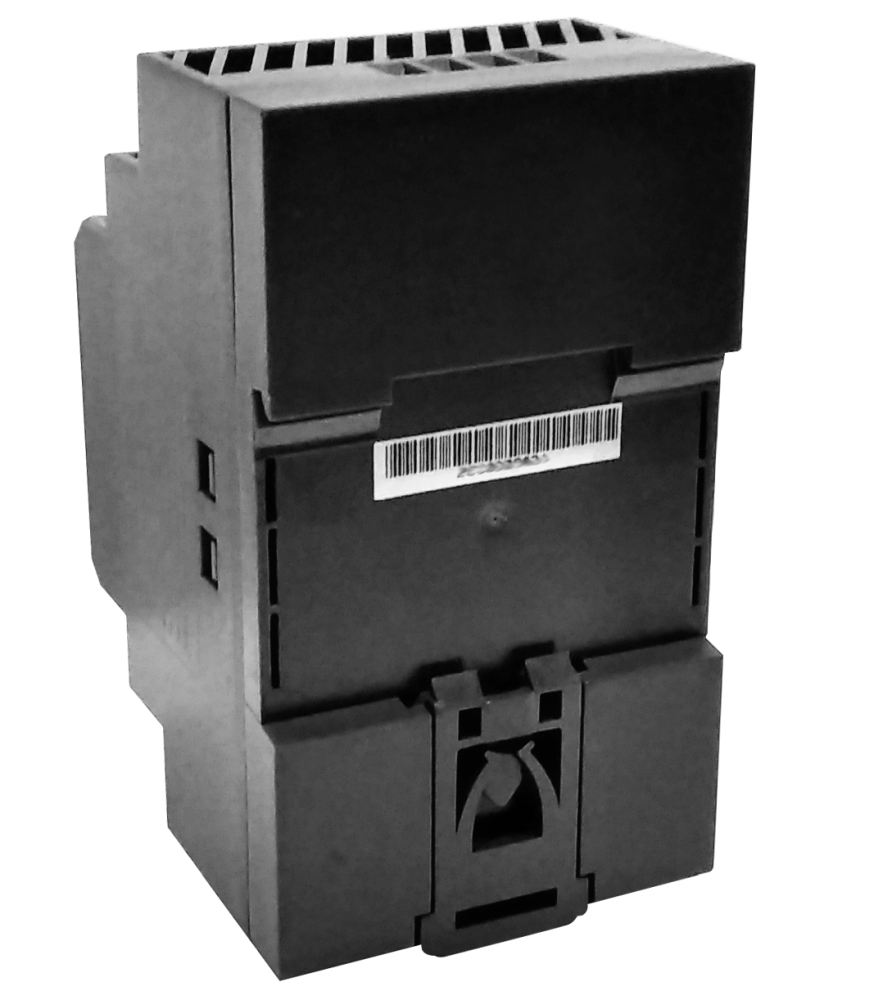

View from the right

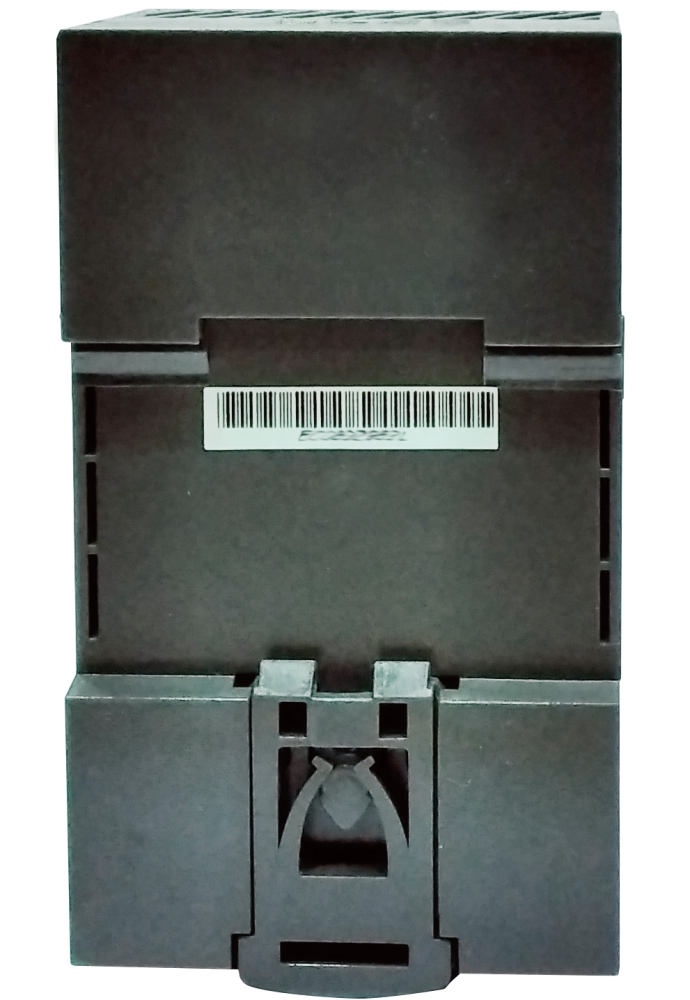

Back view
