DES-1024D

Unmanaged Switch with 24 10/100Base-TX ports

Tanımlama


With the D-Link 24 Port 10/100Base-TX Switch, you can easily expand your business or home network by adding more computers and devices, each achieving speeds up to 200 Mbps per port in full-duplex mode. Quickly and securely connect employees working in small offices with one another and with all of the servers, printers, and other devices they use. High performance and reliable connectivity help speed file transfers and data processing, improve network uptime, and keep your employees connected and productive.

Expand and Upgrade Your Network
The DES-1024D offers an economical way for SOHO and small to medium businesses (SMB) to benefit from high-speed networking. It provides twenty-four ports for easy expansion of your network and a quick way to upgrade your network to Fast Ethernet connectivity. The switches speed file transfer times, improve slow and sluggish networks, keep your vital business applications available, and help your employees respond more quickly to customers and each other.

Conserve Energy
The DES-1024D 24 Port 10/100Base-TX Switch helps you conserve energy through IEEE802.3az EEE, which works when both the switch and its link partner are EEE-compliant devices. This power-saving feature automatically puts the switch into a low-power idle state when the switch utilization is zero, allowing you to lower your energy usage and save on your energy costs.

Designed with the Environment in Mind
The DES-1024D uses recyclable packaging that helps reduce waste, complying with the WEEE directive. It’s innovatively designed to run cool and quiet without sacrificing performance.

Genel Özellikler


Features
Interfaces
• 24 10/100Base-TX ports

Port Standard & Functions
• IEEE 802.3 10Base-T Ethernet
• IEEE 802.3u 100Base-TX Fast Ethernet
• ANSI/IEEE 802.3 NWay auto-negotiation
• IEEE 802.3x flow control
• IEEE 802.3az EEE function

Diagnostic LEDs
• Power
• Link/Activity (Per port)

Network Cables for 10GBase-T
• 10BASE-T:
  UTP CAT 3/4/5/5e (100 m max.)
  EIA/TIA-586 100-ohm STP (100 m max.)
• 100BASE-TX:
  UTP CAT 5/5e (100 m max.)
  EIA/TIA-568 100-ohm STP (100 m max.)

Media Interface Exchange
• Auto MDI/MDIX adjustment for all ports

Data Transfer Rates
• Fast Ethernet:
  100 Mbps Half-Duplex
  200 Mbps Full-Duplex
• Ethernet:
  10 Mbps Half-Duplex
  20 Mbps Full-Duplex

Switching Capacity
• 4.8 Gbps

Maximum Packet Forwarding Rate
• 3.57 Mpps

Transmission Method
• Store-and-forward

MAC Address Table
• 8K entries per device

MAC Address Learning
• Automatic update

Packet Buffer
• 256 Kbytes

Jumbo Frame
• 2 Kbytes

Physical Parameters
Power Input
• 100 to 240 V AC

Maximum Power Consumption
• 2.8 W

Standby Power Consumption
• 1.17 W

Heat Dissipation
• 9.5536 BTU/h

MTBF
• 810,880 hours

Weight
• 1.14 kg

Dimensions
• 282 x 150 x 44 mm

Temperature
• Operating: 0° to 40°C
• Storage: -10° to 70°C

Humidity
• Operating: 0% to 95% non-condensing
• Storage: 0% to 95% non-condensing

Certifications
• CE
• FCC
• ICES-003
• BSMI
• RCM
• CCC
• VCCI
• cUL
• CB
• LVD


Çözümler

Sipariş Bilgisi

DES-1024D  Unmanaged Switch with 24 10/100Base-TX ports

Görseller

DES-1024D/G

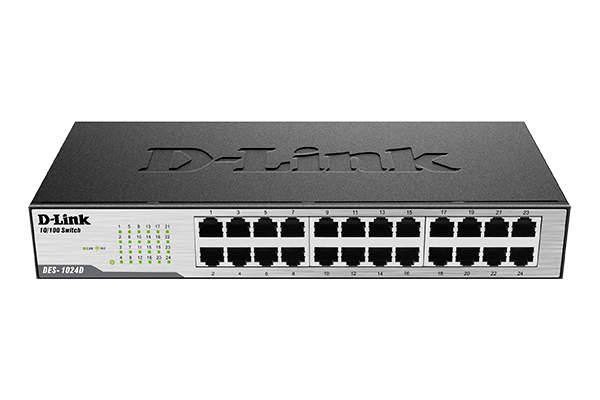

Front view

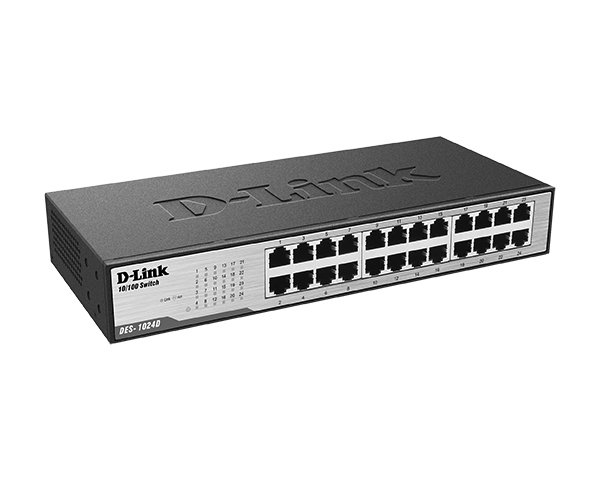

View from the right

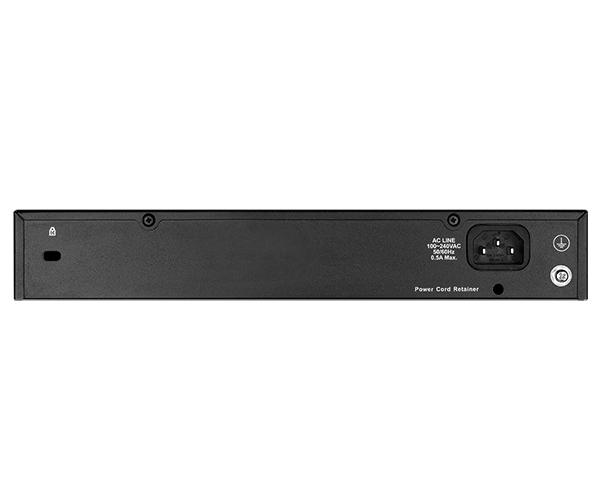

Back view
