DES-1005C

Tanımlama

The DES-1005C 5 Port SOHO Desktop Switch is economical, plug-and-play networking switch solutions for SOHO and small to medium businesses. It provides five 10/100 Mbps ports, enabling you to easily expand your network and quickly upgrade your connectivity.

Plug-and-Play Installation
The DES-1005C is plug-and-play device that requires no configuration. You can easily connect multiple computers, share files, music, and video across your home or small office network. 802.3 flow control automatically and efficiently manages the data transmission process without packet loss, providing a more reliable connection for all of your connected devices.

Auto MDI/MDIX CrossOver
All ports support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly into a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables, streamlining installation.

Conserve Energy
The DES-1005C implements a power saving function that reduces power to a port when no link to that port is detected.

Genel Özellikler

Interfaces
• 5 x 10/100 Mbps LAN ports

Standards
• IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3x Flow Control

Advanced Features
• Auto MDI/MDIX crossover for all ports
• Full/half-duplex for Ethernet/Fast Ethernet speeds
• Back pressure at half-duplex operation
• Auto-negotiation for each port

LEDs
• Power (per device)
• Link/Activity/Speed (per port)

Functionality
Max. Packet Forwarding Rate
• 0.74Mpps

Switching Fabric
1 Gbps

Transmission Method
• Store-and-forward

MAC Address Table
• 1K entries per device

Packet Filtering/Forwarding Rates
• Ethernet: 14,880 pps per port
• Fast Ethernet: 148,800 pps per port

Packet Buffer Size
• 56KB

Physical/Environmental
Power
• DC 5 V / 0.55 A
• DC jack: Located on side

Power Consumption
• Power On (Standby): 0.4W
• Maximum: 1.1W

Heat Dissipation
• 3.75 BTU/h

MTBF
• 1,405,335 hours

Ventilation System
• Fanless

Temperature
• Operating: 0 ~ 40  °C
• Storage: - 40 ~ 70 °C

Humidity
• Operating: 10 to 90% non-condensing
• Storage: 5 to 95% non-condensing

Dimensions
• 87x47x21mm

Weight
• 0.045kgs

EMI/EMS
• CE Report (EMC Directive 2004/108/EC)
• EN 55022 и EN 55024
• EN 61000-3-3
• EN 61000-4-2/3/4/5/6/8/11(ESD/RS/FET/Surge/CS/Magentic/Dip)
• FCC report
• IC report
• C-Tick Report
• BSMI Report
• CNS 13438
• CCC

Safety
• UL/CSA 60950-1
• CB Report
• IEC 60950-1
• CE (LVD report)
• CCC
• BSMI

Çözümler

Sipariş Bilgisi

DES-1005C/B1A  5 Port SOHO Desktop Switch

Görseller

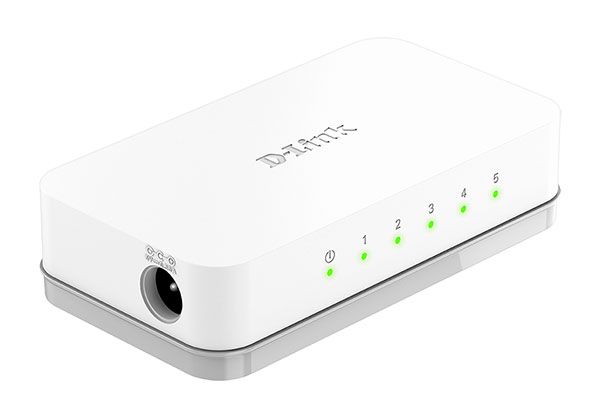

DES-1005C/B1

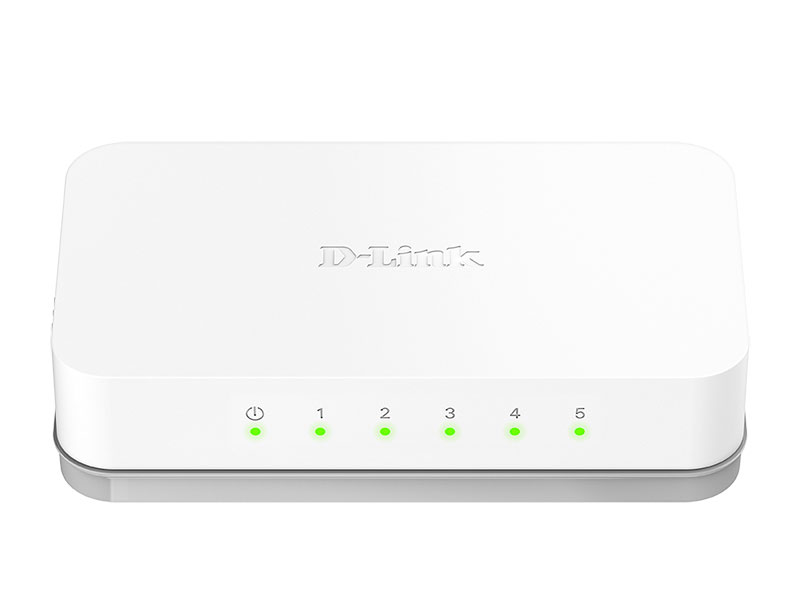

Front view

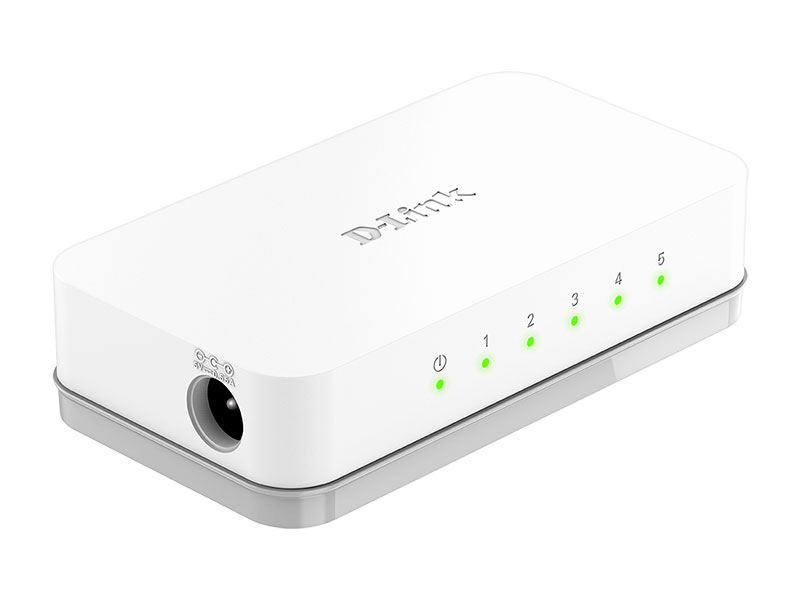

View from the right

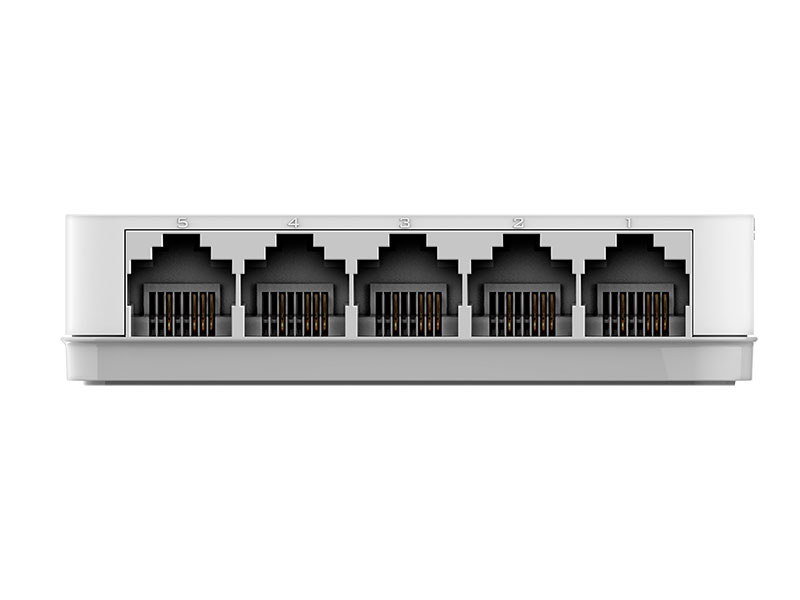

Back view
