Industrial Unmanaged Switch with 4 10/100/1000Base-T Ports and 2 1000Base-X SFP Ports


The DIS-100G-6S Industrial Unmanaged Switch is equipped with 4 10/100/1000Base-T ports and 2 SFP ports. This switch features a robust design making it ideal for deployment in industrial and outdoor cabinet surveillance settings, capable of withstanding the harshest environments. In addition, the switch is Plug-and-Play, allowing for effortless and swift deployment.
Durable, Reliable, and Efficient
The DIS-100G-6S switch is housed in a highly resistant IP40-rated metal casing to protect the switch from harsh environmental conditions. The high electromagnetic compatibility (EMS) protects the DIS-100G-6S from undesirable effects when operating in environments with strong electromagnetic interference. Meanwhile, the fanless design extends the life of the DIS-100G-6S while also enabling them to operate in a wide temperature range from -20 °C up to 65 °C. With DIN rail mounting capability, the DIS-100G-6S can fit seamlessly into your industrial equipment infastructure. In addition, the DIS-100G-6S supports dual power input which allows for a redundant power supply configuration to make sure the switches continue to operate in the event of a primary power supply failure.
Meanwhile, a powerful IEEE 802.1p Quality of Service (QoS) engine prioritizes network traffic so that high-priority data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming critical data such as from surveillance and recognition systems.
Green Ethernet Technology
The DIS-100G-6S features green technology; IEEE 802.3az Energy-Efficient Ethernet (EEE). Energy Efficient Ethernet reduces the power consumption of the switches when network utilization is low, effectively lowering the cost of ownership during periods of inactivity.

Genel Özellikler

Hardware Version
• A1
Number of Ports
• 4 10/100/1000Base-T ports
• 2 SFP ports
Alarm Relay
• 1 A at 24 V
Diagnostic LEDs
• Link/Activity
Port Functions
• IEEE 802.3 for Ethernet
• IEEE 802.3u for Fast Ethernet
• IEEE 802.3ab for Gigabit Ethernet
• IEEE 802.3z for Gigabit fiber
• IEEE 802.3x Flow Control
• IEEE 802.3az Energy-Efficient Ethernet (EEE)
Media Interface Exchange
• Auto-MDI/MDIX adjustment for all twisted pair ports
Switching Capacity
• 12 Gbps
Transmission Method
• Store-and-forward
Maximum Forwarding Rate
• 8.928 Mpps
MAC Address Table Size
• Up to 4K entries
Jumbo Frame
• 9.6 KB
Advanced Features
• IEEE 802.1p Quality of Service (QoS) - 8 hardware queues per port
Physical Parameters
Power Input
• 12 to 48 V DC terminal block dual input
Power Consumption
• Maximum: 4.82 W
• Standby: 2.45 W
Heat Dissipation
• 16.44 BTU/hr
• 569,768 hrs
• 0.4458 kg
• 102 x 28 x 162 mm
• Fanless, passive cooling
• Operating: -20° to 65°C
• Storage: -40° to 85°C
• Operating: 5% to 95% non-condensing
• Storage: 5% to 95% non-condensing
• IP40-rated metal casing
• DIN rail
• CE
• 47 CFR FCC Part 15 Subpart B (Class A)
• ICES-003 Issue 6 (Class A)
• EN 61000-4-2 ESD
• EN 61000-4-3 RS
• EN 61000-4-4 EFT
• EN 61000-4-5 Surge
• EN 61000-4-6 CS
• EN 61000-4-8
Environmental Tests
• IEC 60068-2-27 Shock
• IEC 60068-2-32 Freefall
• IEC 60068-2-6 Vibration


Sipariş Bilgisi

DIS-100G-6S/A1A  Industrial Unmanaged Switch with 4 10/100/1000Base-T Ports and 2 1000Base-X SFP Ports

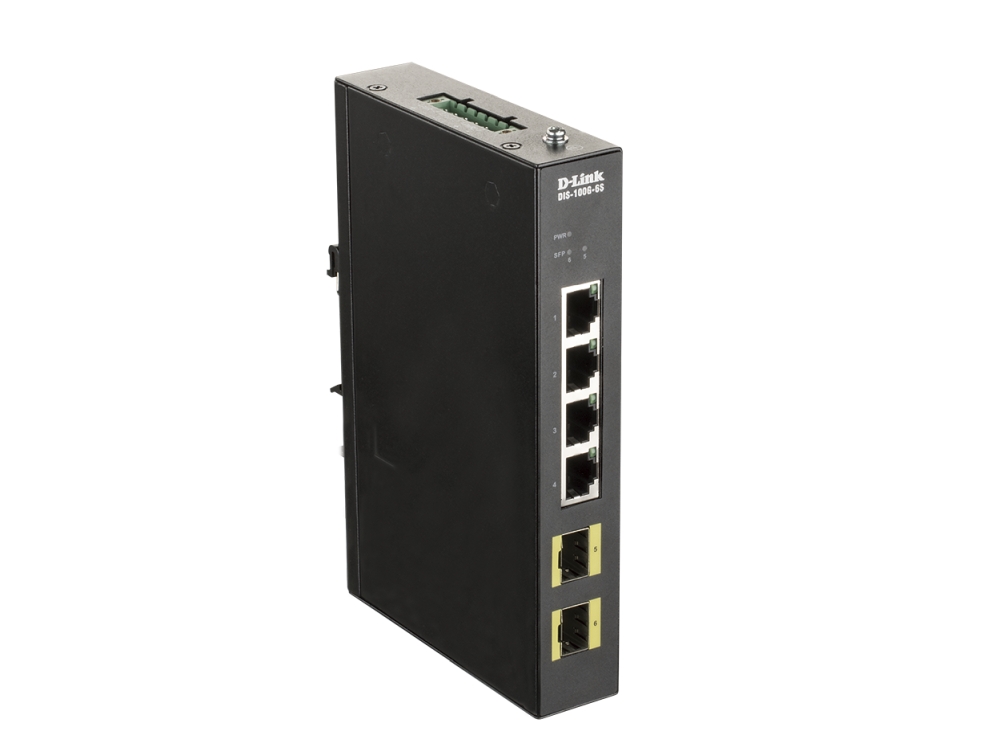

View from the right
View from the right

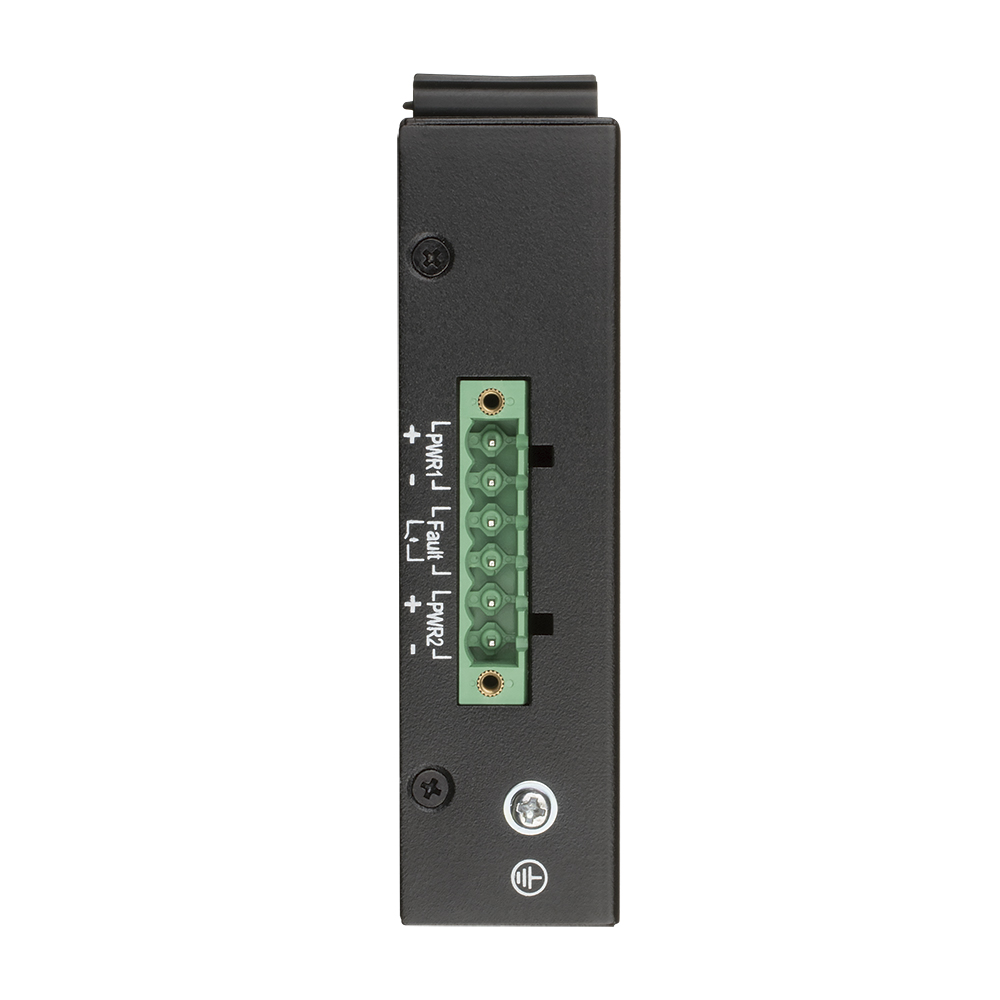

Back view
