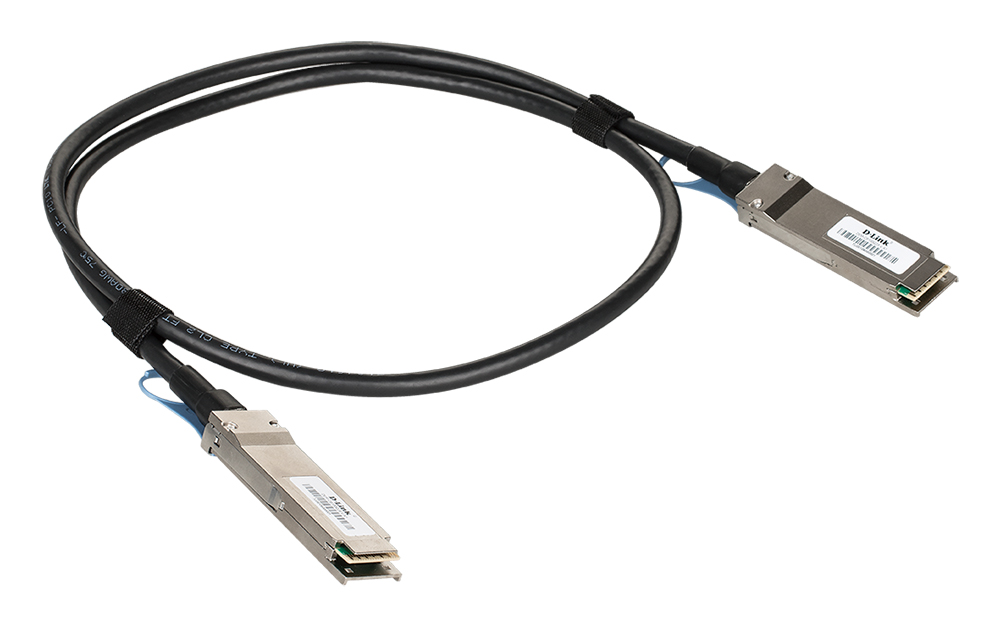

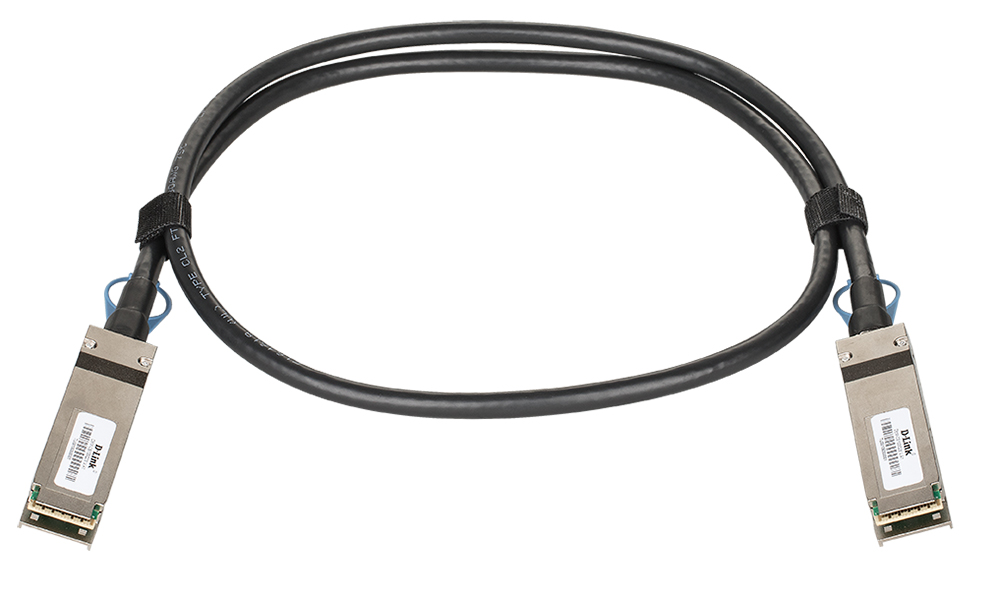

Passive Copper 100G QSFP28 Direct Attach Cable, 1 mNereden Alınır
The 100G Passive QSFP28 Twinaxial Direct Attach Cable is a high performance, high bandwidth and cost-effective connection solution that supports 100G Gigabit Ethernet. The 100G Passive QSFP28 Twinaxial Direct Attach Cable is designed to support high-density connections for switches with 100G interface, much faster than SFP+. The 100G Passive QSFP28 Twinaxial Direct Attach Cable is certified to be compatible with D-Link products to provide you best performance and reliability.
Ideal for High-Bandwidth Operations
The 100G Passive QSFP28 Twinaxial Direct Attach Cable supports speeds of up to 100 Gbps, while having lower crosstalk and power consumption than other cables. This makes it an optimal solution for handling high bandwidth transmission within short distances such as within a rack or between racks inside energy-efficient data centers.
Quad Small Form-factor Pluggable 28 Format
The D-Link 100G Passive QSFP28 Twinaxial Direct Attach Cable uses Quad Small Form-factor Pluggable 28 format (QSFP28) connectors, which integrate four independent transmitting and receiving channels. The QSFP28 cable assemblies can replace ten standard SFP+ cable assemblies, resulting in higher port density, cost efficiency, and a reduction in power savings compared to standard SFP+.
Save on Costs
The D-Link 100G Passive QSFP28 Twinaxial Direct Attach Cable features QSFP28 connectors on both ends, thus eliminating the need for expensive QSFP28 transceivers. This makes it more cost-effective than fiber cables which must use QSFP28 transceivers.
• 100 Gbps
AWG wire size
• 30 AWG
• 1 m
Minimum cable bend radius
• 34.5 mm
Cable characteristic wave impedance
• 100 Ohm
Maximum Nominal Voltage
• 30 V AC
• 3.3 V DC
• 0.5 A
• -40 to 75 °C
• UL 94
DEM-CB100Q28 Passive Copper 100G QSFP28 Direct Attach Cable, 1 m
