DEM-312GT2

1000Base-SX+ Multi-Mode SFP transceiver (up to 2 km)
Nereden Alınır

Tanımlama

The DEM-312GT2 Gigabit SFP fiber transceiver is external transceiver designed for insertion in SFP (Small Form-Factor Pluggable) slot of network device for transmission and reception of data signals on the fiber cables. This transceiver provides high-speed and reliable distance (up to 2 km) data transfer.

The DEM-312GT2 transceiver uses standard duplex LC connector for fiber cable connection. It conforms to industry standards and is interoperable with D-Link Gigabit switches. All D-Link transceivers are hot-pluggable. Hot-swap capability allows network administrators to plug or unplug it from the SFP slot without having to turn off the power of the connected device.

Genel Özellikler

General features
Standard
• IEEE 802.3z 1000Base-SX+
Wavelength
• 1310 nm
Data Rate
• 1.25 Gbps
Connector
• Duplex LC
Maximum Fiber Cable Length
• 2 km
Transmit Power Range
• -8 to -15 dBm
Receive Power Range
• -3 to -20 dBm
Sensitivity
• -20 dBm
Supported Features
• Hot swap
• MSA compliant
• RoHS compliant
Physical Parameters
Power Support
• 3.3 V
Supply Current
• 220 mA
Temperature
• Operating: 0° to 70°C
• Storage: -40° to 85°C
Humidity
• Operating: 0% to 85%
• Storage: 0% to 85%
Dimensions
• 55.4 mm x 13.7 mm x 8.5 mm

Fiziksel Özellikler

Çözümler

Sipariş Bilgisi

DEM-312GT2/A1A  1000Base-SX+ Multi-Mode SFP transceiver (up to 2 km)

Görseller

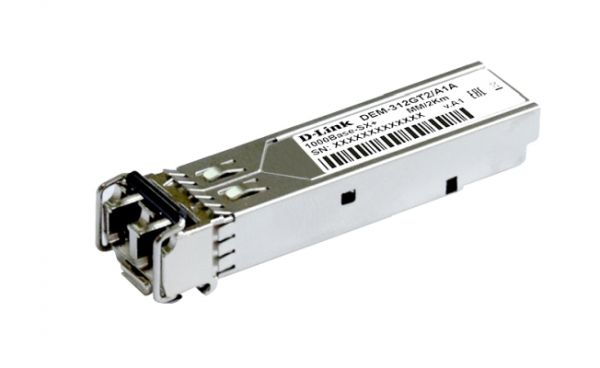

DEM-312GT2/A1

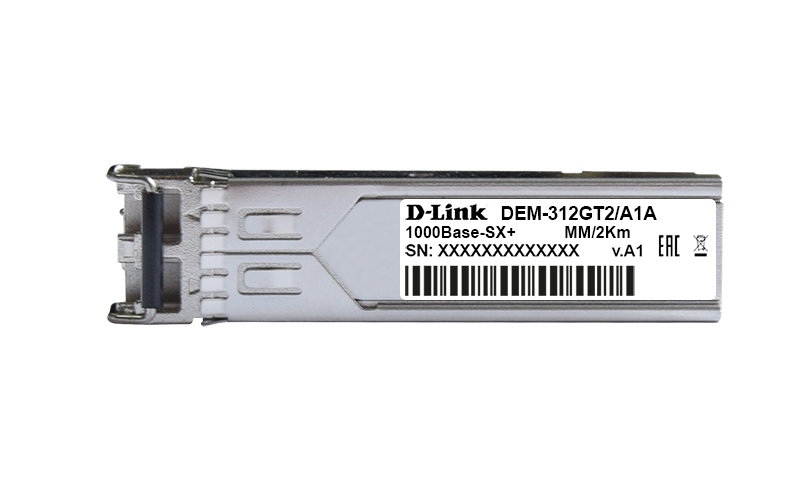

Front view
Top view

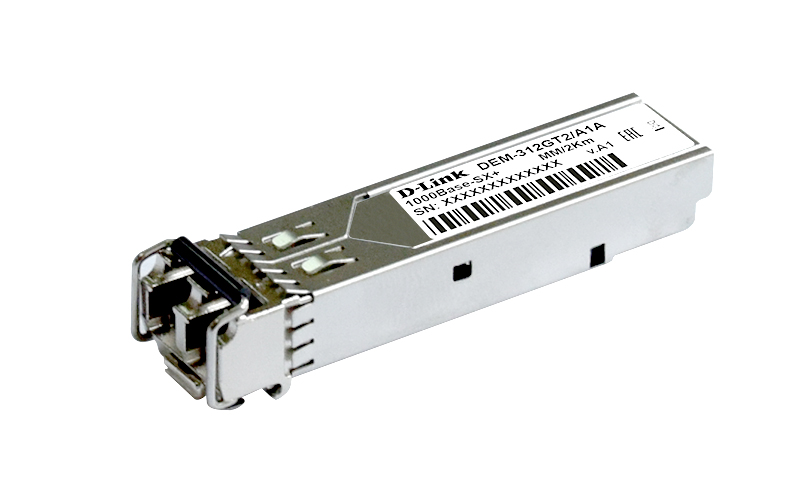

View from the right
