DEM-330T
1000Base-BX-D Single-Mode WDM SFP transceiver (up to 3/10 km), Tx:1550 nm, Rx:1310 nm
Tanımlama
Genel Özellikler
|
General features
|
|
|
Standard
|
• IEEE 802.3z 1000Base-BX-D
|
|
Wavelength
|
• Tx: 1550 nm, Rx: 1310 nm
|
|
Data Rate
|
• 1.25 Gbps
|
|
Connector
|
• Simplex SC (DEM-330T/3KM)
• Simplex LC (DEM-330T/10KM)
|
|
Fiber Type
|
• 9/125 um Single-mode Fiber
|
|
Maximum Fiber Cable Length
|
• 3 km (DEM-330T/3KM)
• 10 km (DEM-330T/10KM)
|
|
Transmit Power Range
|
• -8 to -15 dBm (DEM-330T/3KM)
• -3 to -9 dBm (DEM-330T/10KM)
|
|
Receive Power Range
|
• -3 to -20 dBm (DEM-330T/3KM)
• -3 to -21 dBm (DEM-330T/10KM)
|
|
Sensitivity
|
• -20 dBm (DEM-330T/3KM)
• -21 dBm (DEM-330T/10KM)
|
|
Supported Features
|
• Hot swap
• MSA compliant
• RoHS compliant
|
|
Physical Parameters
|
|
|
Power Support
|
• 3.3 V
|
|
Supply Current
|
• 220 mA
|
|
Temperature
|
• Operating: 0° to 70°C
• Storage: -40° to 85°C
|
|
Humidity
|
• Operating: 0% to 85%
• Storage: 0% to 85%
|
|
Dimensions
|
• 63.8 mm x 13.7 mm x 8.5 mm (DEM-330T/3KM)
• 55.4 mm x 13.7 mm x 8.5 mm (DEM-330T/10KM)
|
Çözümler
Sipariş Bilgisi
|
DEM-330T/10KM
|
1000Base-BX-D Single-Mode WDM SFP transceiver (up to 10 km), Tx:1550 nm, Rx:1310 nm
|
|
DEM-330T/3KM
|
1000Base-BX-D Single-Mode WDM SFP transceiver (up to 3 km), Tx:1550 nm, Rx:1310 nm
|
Görseller

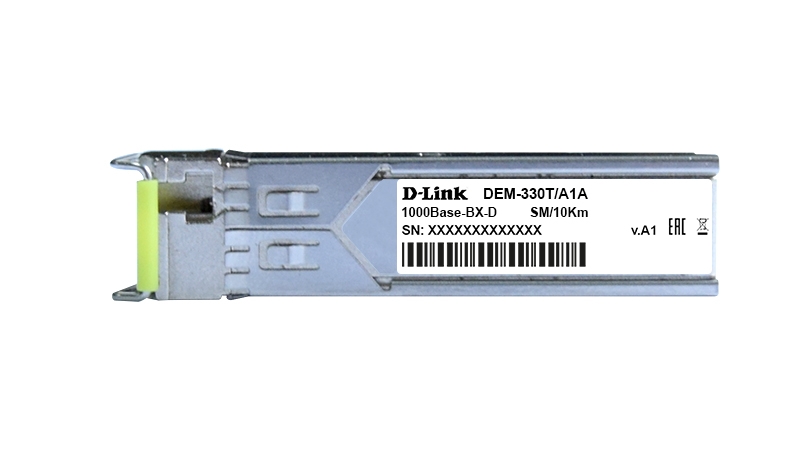

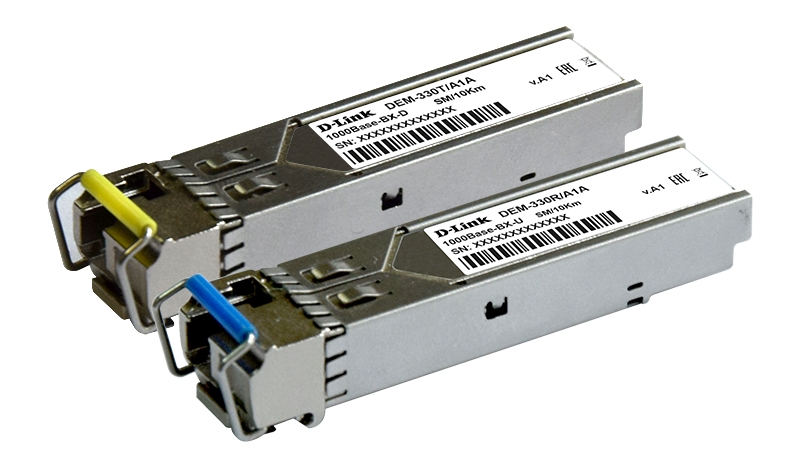

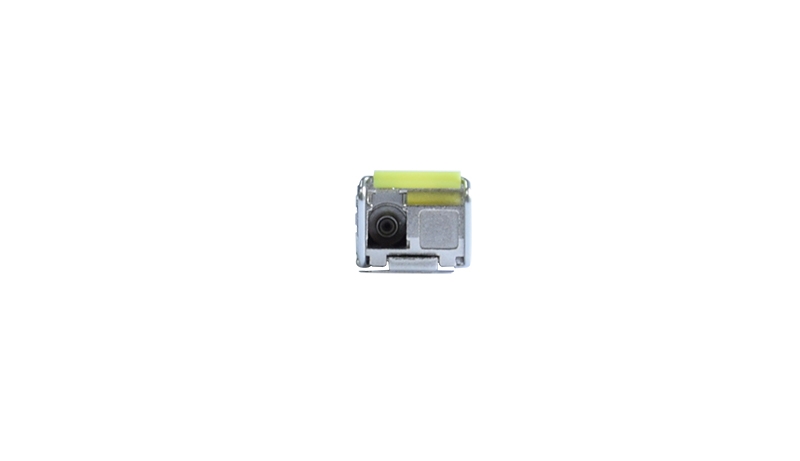

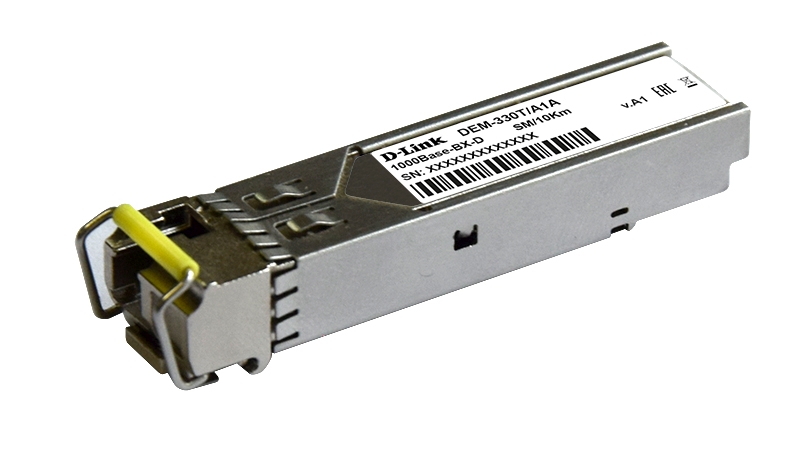

DEM-330T/10KM

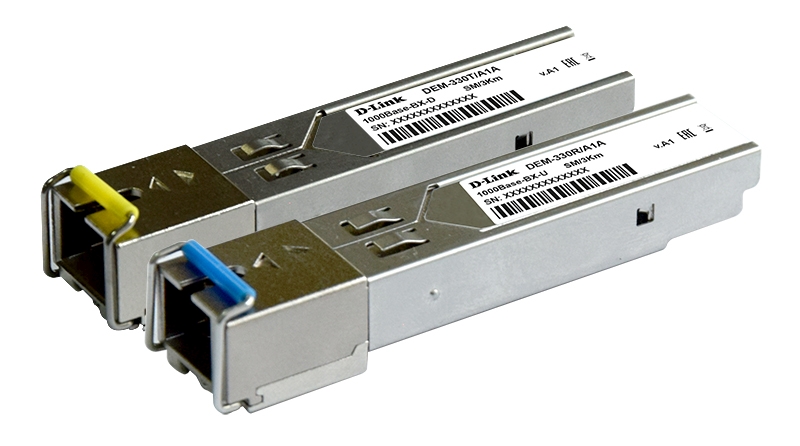

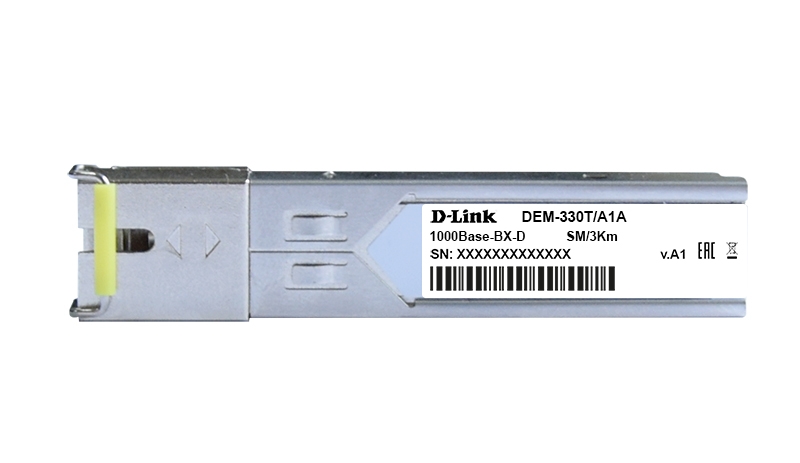

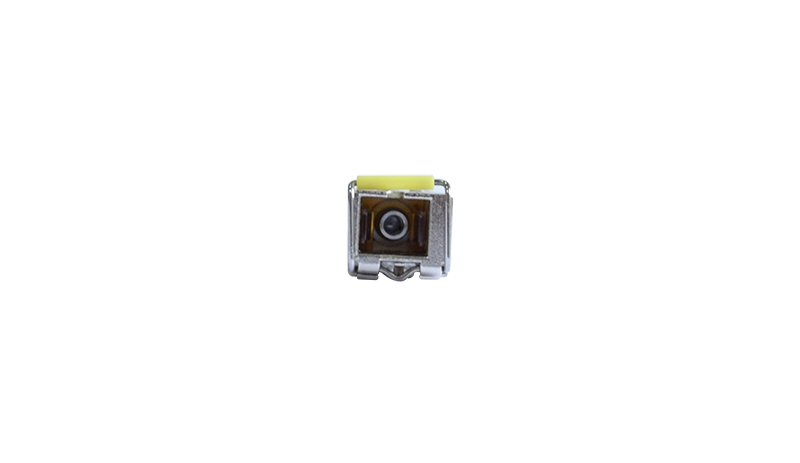

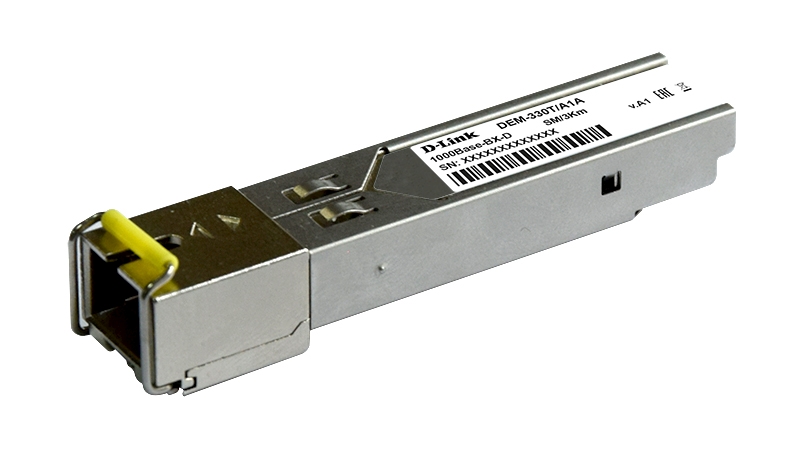

DEM-330T/3KM
