DEM-431XTProje

10GBase-SR Multi-Mode SFP+ transceiver (up to 300 m)

Tanımlama

D-Link’s 10G SFP+ Module series are hot-swappable transceivers that plug into SFP+ slots on switches and support 10G Ethernet. The D-Link 10GBASE SFP+ Module Series transceivers offer customers a wide variety of 10G Ethernet connectivity options for data centers, enterprise wiring closets, and service provider transport applications.

The DEM-431XT uses the Enhanced Small Form-factor Pluggable format (SFP+). The SFP+ form factor is smaller than other form factors such as Xenpak, X2, and 10G XFP, ensuring lower costs, lower power disruption, and higher port density.

The DEM-431XT transceiver uses standard duplex LC connector for fiber cable connection. It conforms to industry standards and is interoperable with D-Link 10 Gigabit Ethernet switches. All D-Link transceivers are hot-pluggable. Hot-swap capability allows network administrators to plug or unplug it from the SFP+ slot without having to turn off the power of the connected device.

Genel Özellikler

General features
Standard
• IEEE 802.3ae 10GBase-SR
Wavelength
• 850 nm
Data Rate
• 10 Gbps
Connector
• Duplex LC
Fiber Type
• 50/125 um Multi-mode Fiber
Maximum Fiber Cable Length
• 300 m
Transmit Power Range
• -1 to -7 dBm
Receive Power Range
• -1  to -9.9 dBm
Sensitivity
• -9.9 dBm
Supported Features
• Hot swap
• MSA compliant
• RoHS compliant
Physical Parameters
Power Support
• 3.3 V
Supply Current
• 300 mA
Temperature
• Operating: 0° to 70°C
• Storage: -40° to 85°C
Humidity
• Operating: 0% to 85%
• Storage: 0% to 85%
Dimensions
• 55.9 mm x 13.7 mm x 8.5 mm
Certificates
• Class 1 laser: EN 60825-1
• FDA 21 CFR 1040.10 и 1040.11

Çözümler

Sipariş Bilgisi

DEM-431XT/B1A
10GBase-SR Multi-Mode SFP+ transceiver (up to 300 m)

Görseller

DEM-431XT/B1

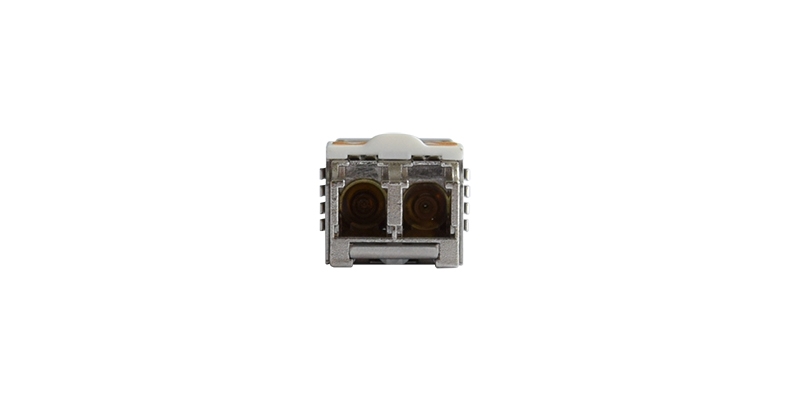

Front view

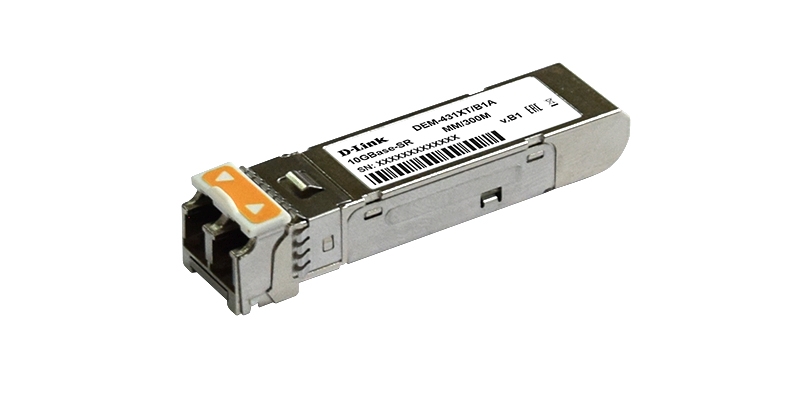

View from the right

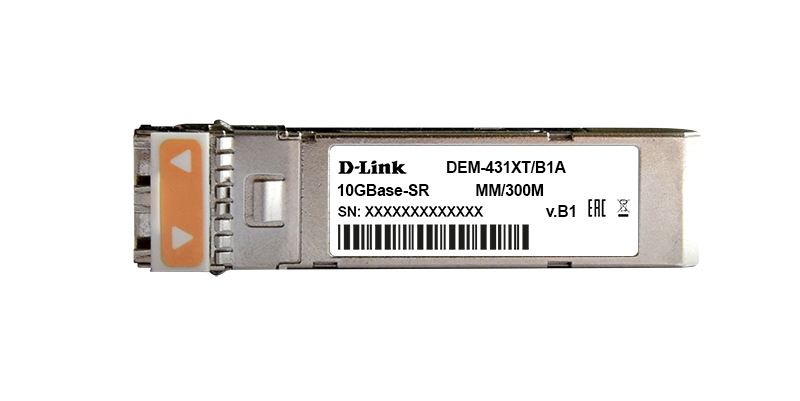

Top view
