DXS-F3500-32SProje

24 Port High Port Density Data Center TOR Switch
Nereden Alınır

Tanımlama

D-Link’s new generation DXS-F3500-32S switch delivers a versatile feature set, High-density port count in 1U rack mount size; suitable for Data Center TOR or Enterprise & campus environments CORE/Aggregation requirements. The DXS-F3500-32S A non-blocking architecture design provides high-performance L2/L3/L4 switches feature wire-speed switching capacity of 10/40 Gigabit Ethernet switching, routing at ultra-low latency. DXS-F3500-32S provides 4 x 1000BASE-T ports, 24 x 1/10GbE SFP/SFP+ ports ports, 2 x 40G QSFP+ Ports in compact 1U rack size.

High Availability & Flexibility

The DXS-F3500-32S switch features a modular fan and power supply design for a high availability architecture. The hot-swappable design means that fans and power supplies can be replaced without affecting switch operation. The Multi-Chassis Trunking enables multiple DXS-F3500-32S switches to be configured in a Virtual chassis and can provide non-stop layer-3 routing forwarding even in case of failure of any switch in the virtual chassis.

Lossless Ethernet

Data Center Bridging (DCB) is an essential set of enhancements to Ethernet for networking in data center environments. The DXS-F3500-32S switch support several core components of Data Center Bridging (DCB) such as IEEE 802.1Qbb, IEEE 802.1Qaz, and IEEE 802.1Qau. IEEE 802.1Qbb (Priority-based Flow Control) provides flow control on specific priority to ensure there is no data-loss during network congestion. IEEE 802.1Qaz (Enhanced Transmission Selection) manages the allocation of bandwidth amongst different traffic classes. IEEE 802.1Qau (Congestion Notification) provides congestion management for data flows within network domains to avoid congestion.

Genel Özellikler

Interfaces 4 x 1000BASE-T ports, 24 x 1/10GbE SFP/SFP+ ports ports, 2 x 40G QSFP+ Ports

Hardware Version A1

Media Interface Exchange Auto or configurable MDI/MDIX

Console Port RJ-45 and Mini USB console ports for out-of-band CLI management

Management Port 10/100/1000BASE-T RJ-45 Ethernet for out-of-band IP management

USB Port A-Type Port

Performance

Switching Capacity 640 Gbps

Max. Forwarding Rate 480 Mpps

Packet Buffer Memory 9M

MAC Address Table 128K

Physical

Power input

Dual Redundant AC Power supplies (100 to 230 V AC)

Dual Redundant DC Power supply 36V ~ 72V (Available on request)

Dimensions

442×404×44 mm (W x D x H) 1U

Operating Temperature 0° to 50° C

Storage Temperature -20° to 70° C

Operating Humidity 10%-90% non-condensing

Storage Humidity 5%-95% non-condensing

Certifications

Safety RoHS

Çözümler

Sipariş Bilgisi

Görseller

DXS-F3500-32S

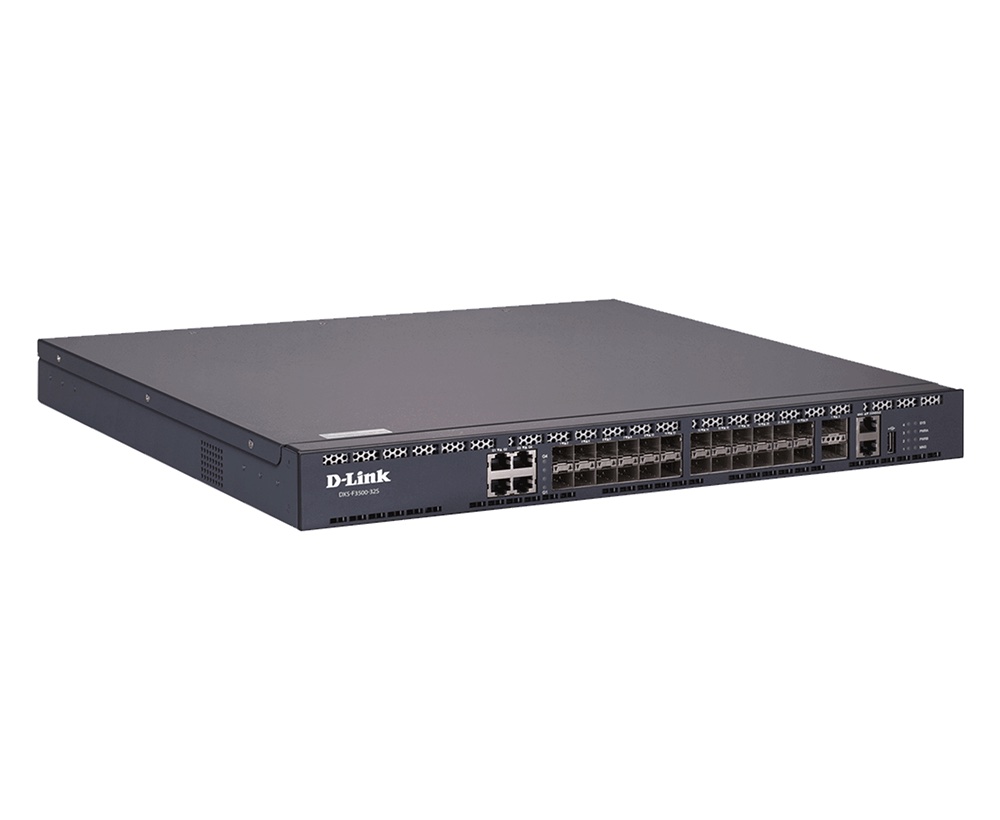

Left side view

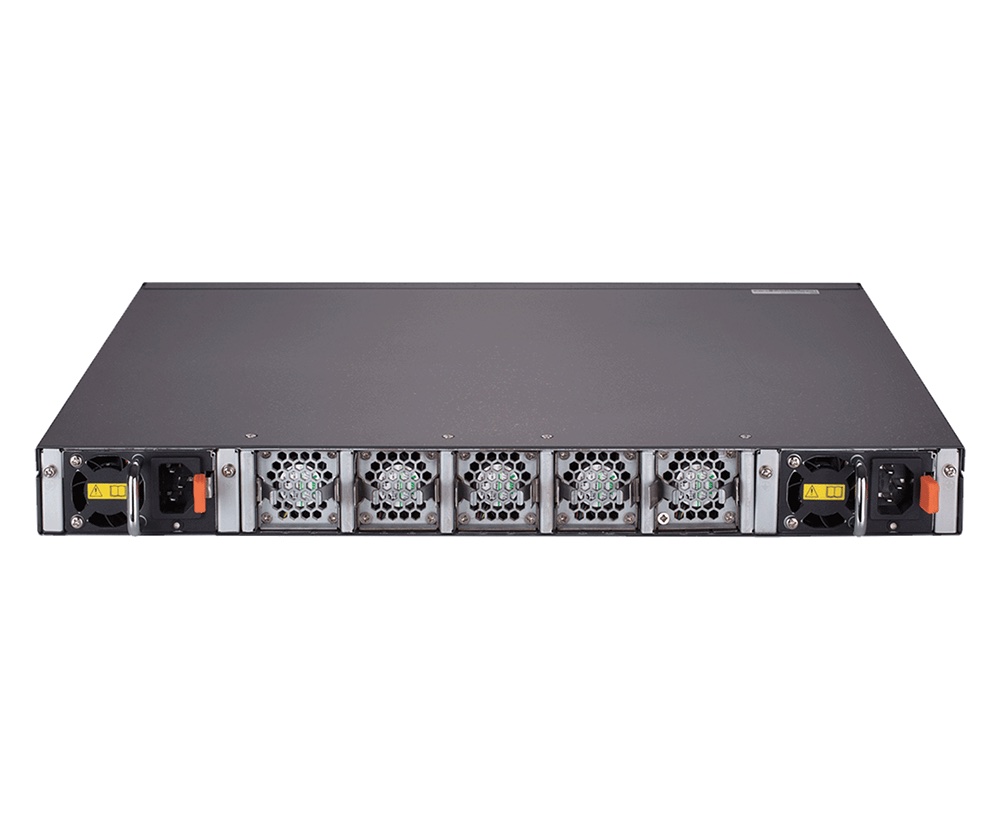

Back view

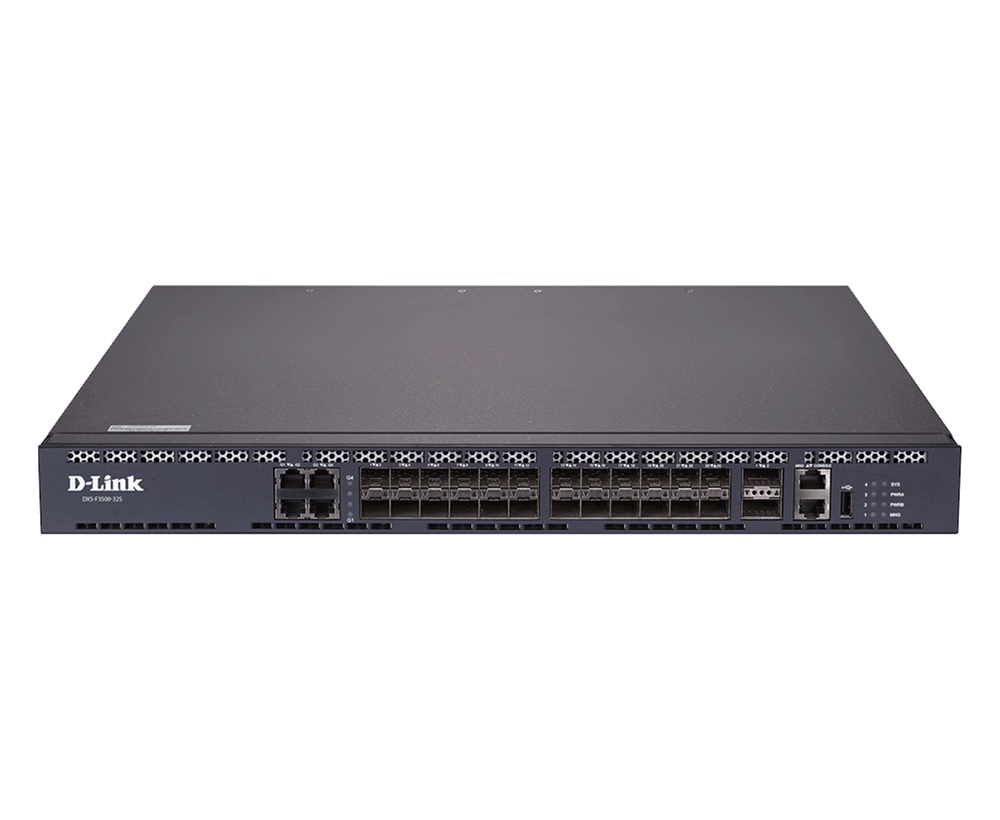

Front view
