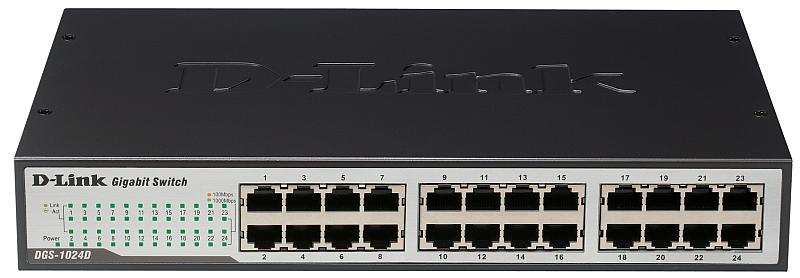

DGS-1024D/GEEOL EOS
Tanımlama
Think green
D-Link takes the lead in networking industry to release Green Ethernet technology with its new series of Soho Gigabit switches. these environmentally-friendly devices decrease energy costs through the reduction of power consumption without sacrifcing operational performance or functionality, providing benefts to both the ecosystem and home/Soho users. they are designed to help conserve energy, protect our environment from harmful substances, and reduce waste by using recyclable packaging.
Conserving Energy
+ automatically powers down ports that have no link
+ budgets power output for different Ethernet cable lengths
+ complies with california’s stringent cEc and australia MEPS regulation requiring the use of more energy effcient power adapters.*
Protecting the environment
+ complies with RohS directive that restricts the use of certain hazardous materials.
+ complies with wEEE (waste Electrical and Electronic Equipment) directives that use recyclable packaging to help reduce waste that goes into the environment
Genel Özellikler
KEY FEATURES
+ Innovative Green Ethernet technology
+ Inexpensive Gigabit solution for Soho & SMb
+ 24 10/100/1000Mbps Gigabit ports on cat.5 cable
+ 48Gbps switching fabric
+ Auto MDI/MDIX cross over for all ports
+ Secure store-and-forward switching scheme
+ Full/half-duplex for Ethernet/Fast Ethernet speeds
+ Blazing 2000Mbps full duplex for Gigabit speed
+ IEEE 802.3x Flow control
+ Supports 9,600bytes Jumbo Frames
+ Supports IEEE802.1p QoS (4 Queues, Strict Mode)
+ Supports cable Diagnostic Function
+ RohS compliant
+ Plug-and-play installation
STANDARTS
+ IEEE 802.3 10baSE-t Ethernet (twisted-pair copper)
+ IEEE 802.3u 100baSE-tX Fast Ethernet (twisted-pair copper)
+ IEEE 802.3ab 1000baSE-t Gigabit Ethernet (twisted-pair copper)
+ ANSI/IEEE 802.3 Nway auto-negotiation
+ IEEE 802.3x Flow control
+ IEEE 802.1p QoS
NUMBER OF PORTS
24 10baSE-t/100baSE-tX/1000baSE-t ports
PROTOCOL
CSMA/cD
DATA TRANSFER RATES
+ Ethernet
-10Mbps (half duplex)
-20Mbps (full duplex)
+ Fast Ethernet
-100Mbps (half duplex)
-200Mbps (full duplex)
+ Gigabit Ethernet
-2000Mbps (full duplex)
TOPOLOGY
Star
NETWORK CABLES
+ 10BASE-T:
-UTP CAT. 3, 4, 5 (100 m max.)
-EIA/TIA-586 100-OHM STP (100 m max.)
+ 100BASE-TX, 1000BASE-T
-UTP CAT. 5, CAT. 5e (100 m max.)
-EIA/TIA-568 100-ohm STP (100 m max.)
FULL/HALF DUPLEX
+ Full/half duplex for 10/100Mbps speeds
+ Full duplex for Gigabit speed
MEDIA INTERFACE EXCHANGE
Auto MDI/MDIX adjustment for all ports
LED INDICATORS
+ Per port: 100Mbps/1000Mbps speed
+ Per device: Power
TRANSMISSION METHOD
Store-and-forward
MAC ADDRESS TABLE
8K entries per device
MAC ADDRESS LEARNING
Automatic update
PACKET FILTERING/FORWARDING RATES (HALF DUPLEX)
+ Ethernet: 14,880 pps per port
+ Fast Ethernet: 148,810 pps per port
+ Gigabit Ethernet: 1,488,100 pps per port
RAM BUFFER
500Kbytes per device
