DKVM-4UEOL

4-Port USB KVM Switch

Tanımlama


The D-Link DKVM-4U 4-port USB KVM switch allows you to manage up to four computers with one monitor, one keyboard and one mouse. The DKVM-4U requires no driver installation and no external power adapter connection. This KVM switch supports hot-plugging - you don't need to turn your computers off before installing the device. The DKVM-4U allows you to switch between computers quickly and easily using the buttons located on the top panel or keyboard hot keys. The DKVM-4U supports autoscan mode, which provides automatic switching to the next PC after the scan interval expires.


Genel Özellikler


Hardware
Ports for connecting KVM cables
• 4 VGA ports

Ports for connecting management console
• Monitor (local): VGA
• Keyboard (local): USB Type-A
• Mouse (local): USB Type-A

Port for connecting USB-disk
• USB Type-A

KVM cable connectors for connecting PC
• Video: 15-pin HDB connector (VGA)
• Keyboard/Mouse: USB Type-A connector

LEDs
• 4 port LEDs for connected PCs

Buttons
• 4 port switching buttons

Enclosure
• Plastic

Connected PCs
• Up to 4

Autoscan mode
• Yes

Switching between PCs
• Switching buttons on the top panel
• Hot keys

Sound notification of switching
• Yes

Max. resolution
• 2048x1536

Physical Parameters
Dimensions (L x W x H)
• 100 x 65 x 27 mm

Weight
• 725 g

Environmental Conditions
Power Supply
• From USB port on PC (no external power adapter required)

Temperature
• Operating: 0 to 50 °C
• Storage: -20 to 60 °C

Humidity
• 0% to 80% non-condensing


NOTE! The KVM cables of hardware version B are compatible only with the DKVM-4U KVM switch of hardware version C.


Çözümler

Sipariş Bilgisi

DKVM-4U  4-Port USB KVM Switch

Görseller

DKVM-4U/Cx

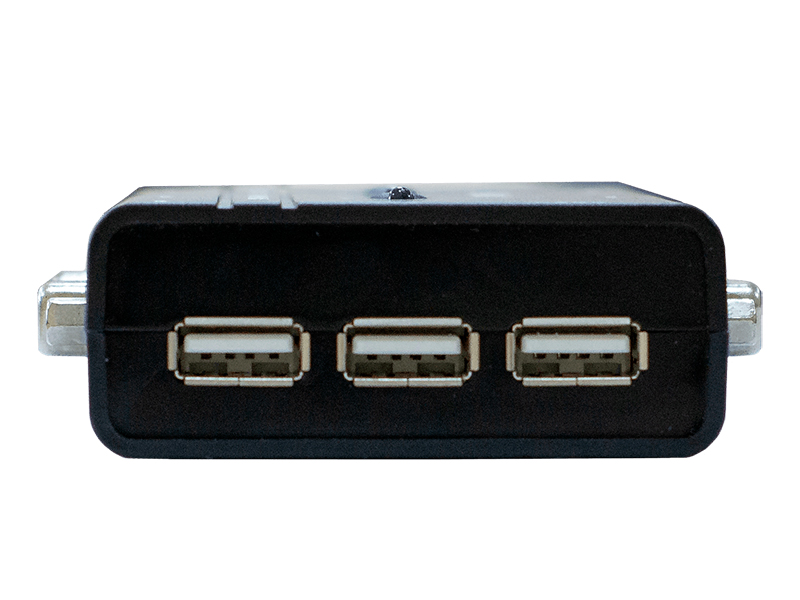

View from the right

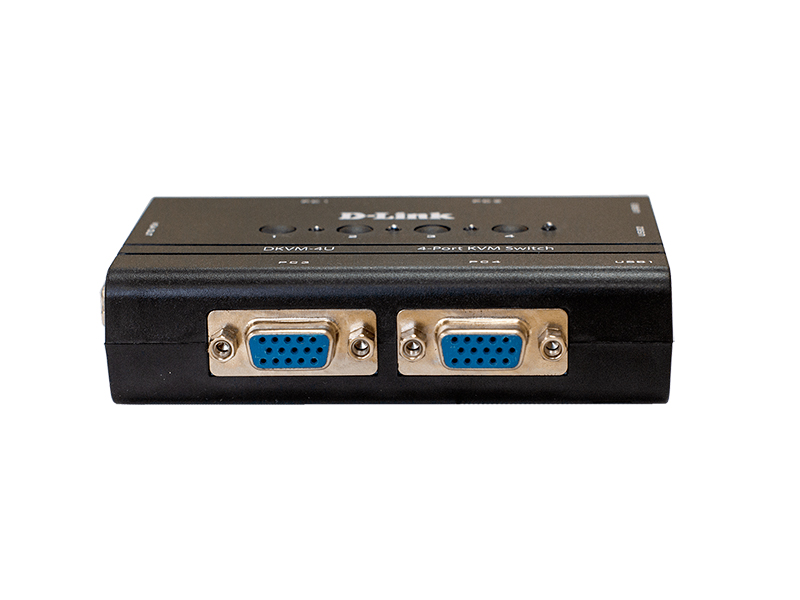

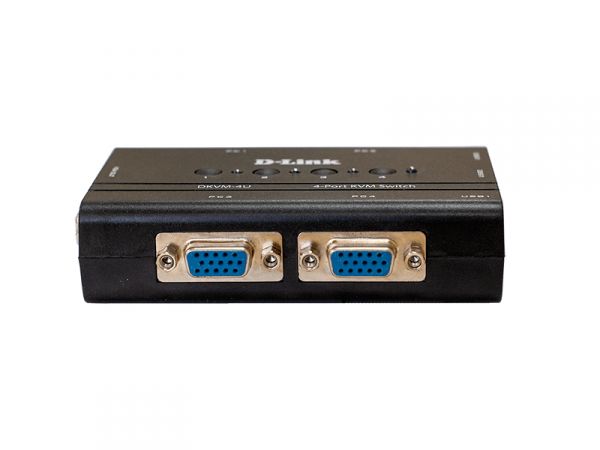

Front view

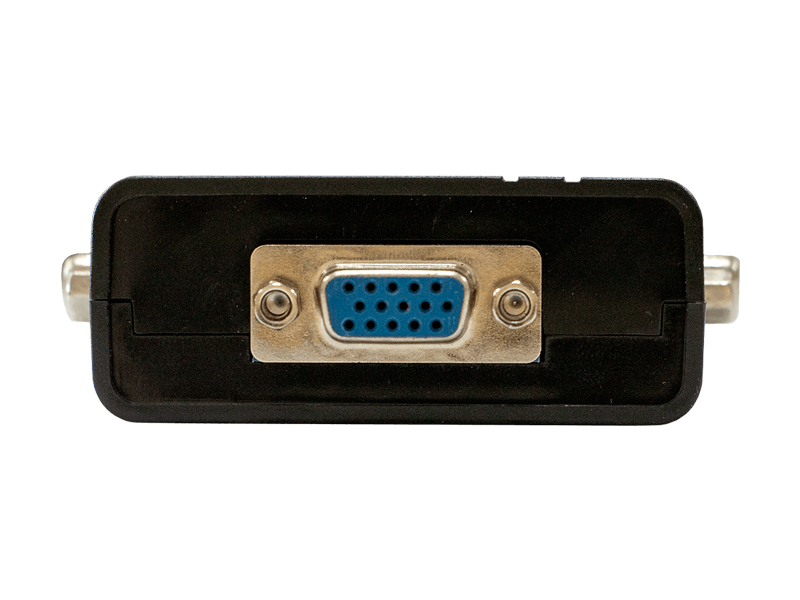

Left side view

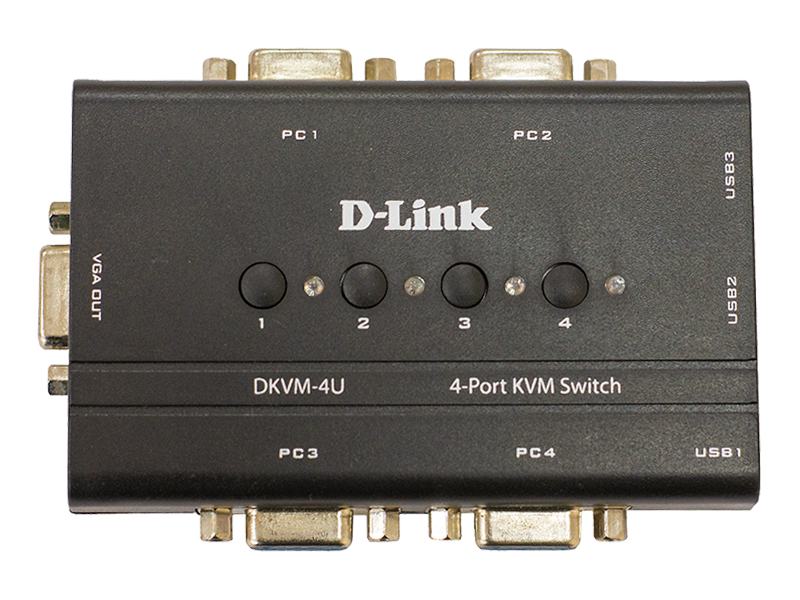

Top view
