DKVM-IP16LCDEOL

16-Port KVM Over IP Switch with VGA, USB Ports and Built-In Console

Tanımlama

The D-Link DKVM-IP16LCD 16-port KVM Over IP switch with VGA ports, four USB ports, one 10/100Base-TX port and built-in console allows you to manage up to sixteen computers locally with external console (one monitor, one keyboard and one mouse) or built-in console (LCD, keyboard and touchpad), or remotely through the Internet. This KVM Over IP switch supports hot-plugging - you don't need to turn your computers off before installing the device. The DKVM-IP16LCD allows you to switch between computers quickly and easily using the buttons located above built-in keyboard, keyboard hot keys, OSD menu or Web-based GUI. The DKVM-IP16LCD supports autoscan mode, which provides automatic switching to the next PC after the scan interval expires. Two USB ports can be used for connecting external devices, for example, USB-disk. This KVM Over IP switch can be mounted in a 19-inch rack.

Genel Özellikler

Hardware
Ethernet port
• 10/100Base-TX port

LEDs
• Power
• 16 port LEDs for connected PCs
• Link/Speed (per Ethernet port)

Buttons
• 16 port switching buttons
• Power, Down, Up, Menu, Auto buttons
• Reset button

Enclosure
• Metal, 19-inch rack mountable

Ports for connecting management console
• Monitor (local): VGA
• Keyboard (local): USB Type-A
• Mouse (local): USB Type-A

Ports for connecting KVM cables
• 16 VGA ports

KVM cable connectors for connecting PC
• Video: 15-pin HDB connector (VGA)
• Keyboard/Mouse: USB Type-A connector

Ports for connecting external devices
• 2 USB Type-A ports

Built-in console
• 19-inch LCD with the 1280x1024 resolution
• Keyboard
• Touchpad

General Specifications
Connected PCs
• Up to 16

Autoscan mode
• Yes

Sound notification of switching
• Yes

Remote management via IP address
• Web-based GUI

Switching between PCs
• Switching buttons above built-in keyboard
• Hot keys
• OSD menu
• Web-based GUI

Functionality
• Managing several remote servers
• Access to BIOS
• Lack of influence on the performance
• Automatic selection of the optimal video resolution

Max. resolution for local and remote console
• 1920x1440

Physical Parameters
Weight
• 15 kg

Dimensions (L x W x H)
• 488 x 570 x 44 mm

Environmental Conditions
Power Supply
• 12 V DC power adapter

Temperature
• Operating: -50 to 80 °C
• Storage: -20 to 60 °C

Humidity
• 0% to 80% non-condensing

Compatible KVM cables*
• DKVM-CU/B
• DKVM-CU3/B
• DKVM-CU5/B
NOTE! The KVM cables of hardware revision B are compatible only with the DKVM-IP16LCD KVM-over-IP switch of hardware revision A.

Çözümler

Sipariş Bilgisi

DKVM-IP16LCD/A2A  16-Port KVM Over IP Switch with VGA, USB Ports and Built-In Console

Görseller

DKVM-IP16LCD/A2

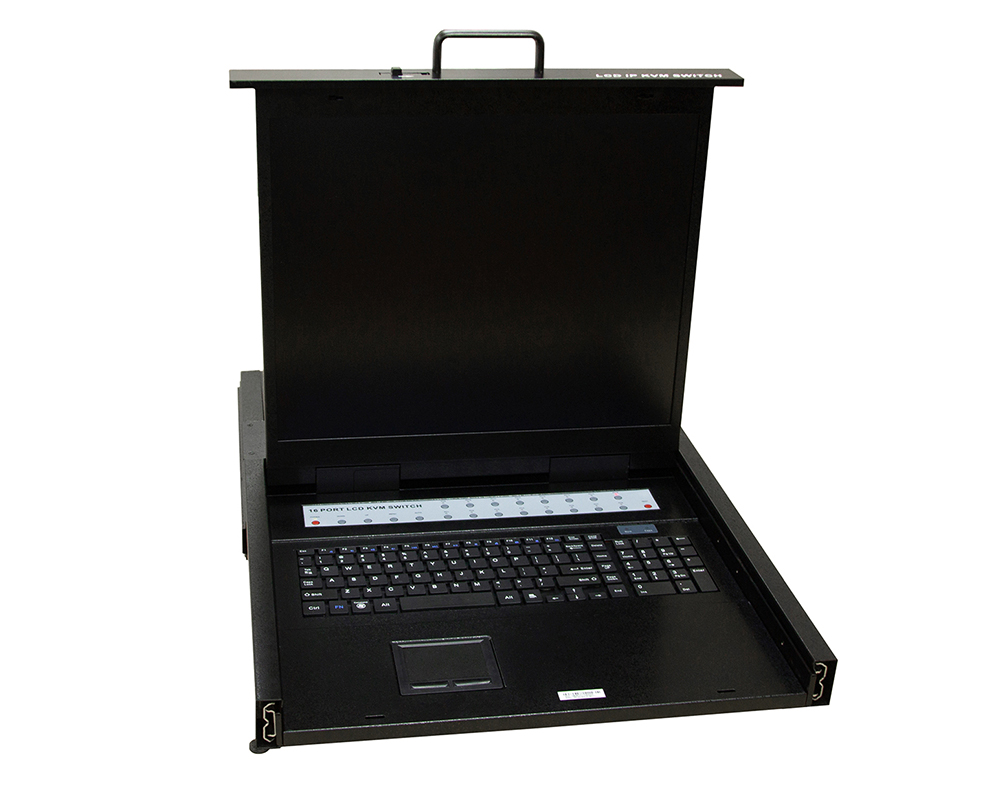

Front view

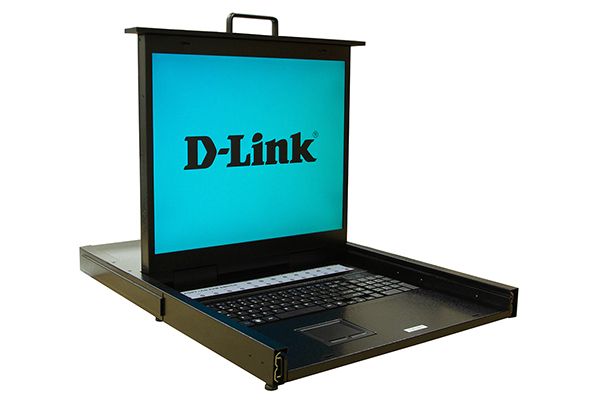

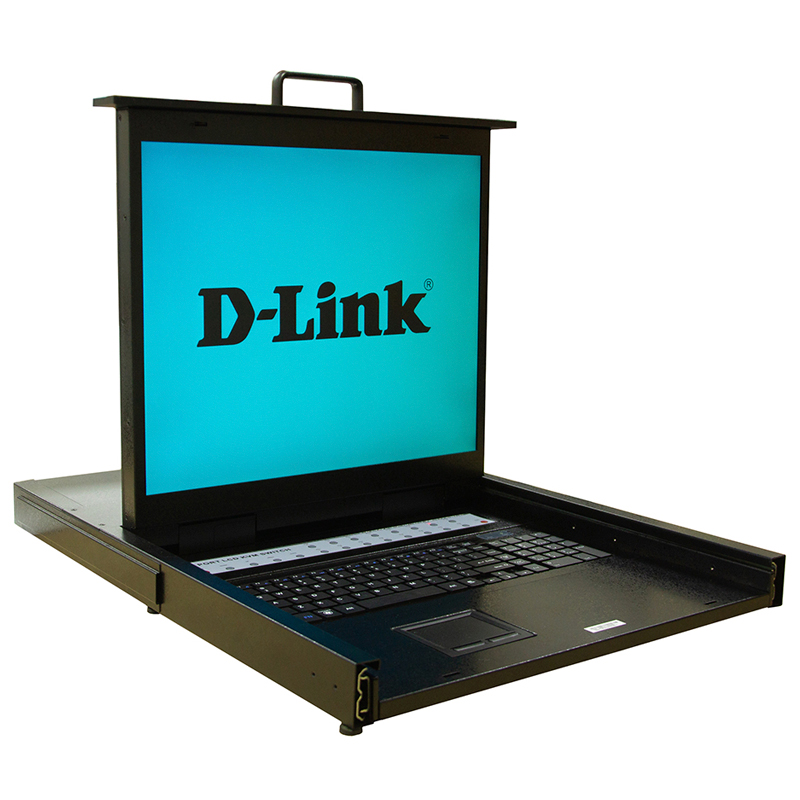

View from the right

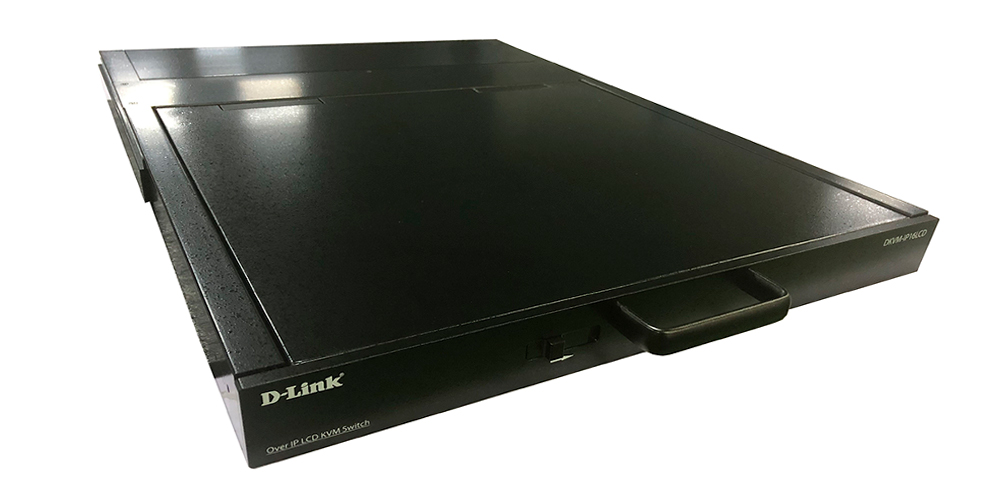

Left side view

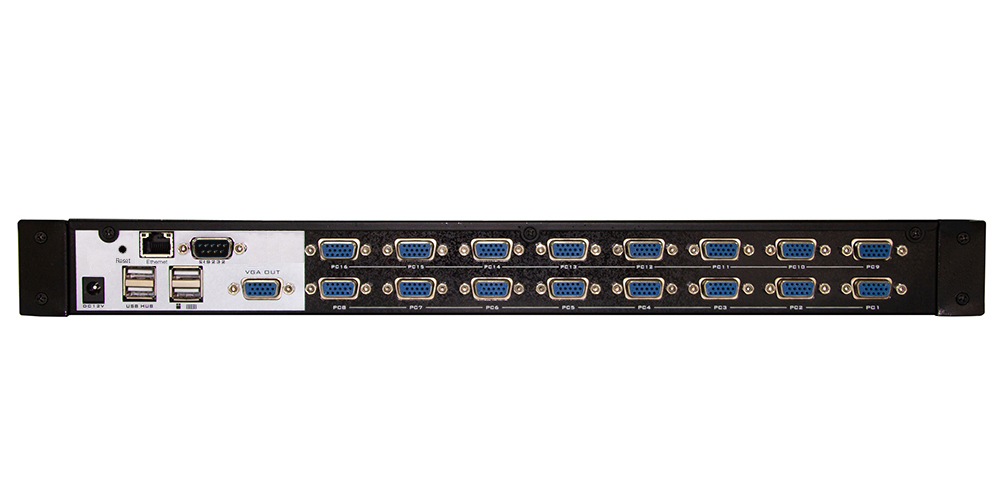

Back view
