DPE-302GE
2-Port Gigabit PoE Extender
Tanımlama
The DPE-302GE 2-Port Gigabit PoE Extender allows a Gigabit Power over Ethernet connection to be extended up to 500 m*. It is designed to transmit data and supply up to 30 W of power to PoE-capable devices such as PTZ IP cameras or 802.11ac wireless access points, using PoE power source equipment (PSE). With several mounting options, the DPE-302GE allows PoE devices to be deployed virtually anywhere over longer distances, eliminating the need for a nearby power outlet and attached power supply.
Powers More Devices Over Longer Distances
The DPE-302GE offers a plug and play PoE solution, capable of transmitting up to 10 to 30 W of output power for up to two devices over a maximum distance of 500 m* by daisy-chaining up to 4 units. With support for IEEE 802.3af/at PoE (+) and Gigabit speeds, the DPE-302GE is designed to be deployed in situations with high bandwidth requirements. Furthermore, the DPE-302GE can also be used in combination with the DPE-301GS PoE Splitter to also power non-PoE devices over long distances.
Flexible Deployment

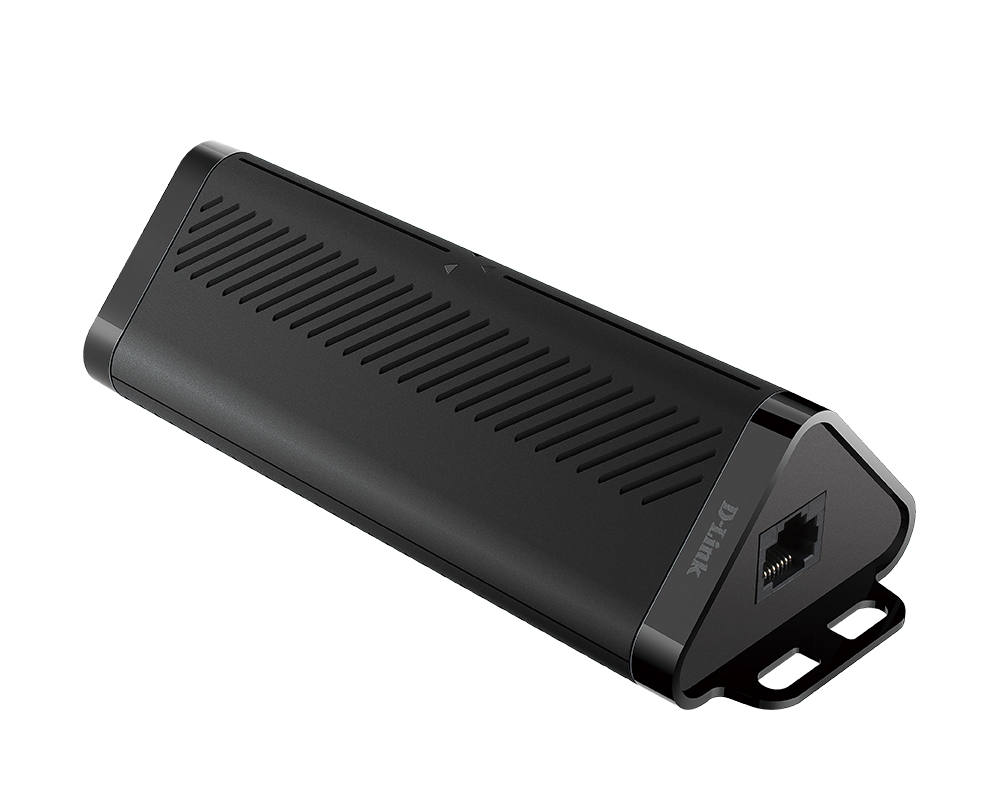

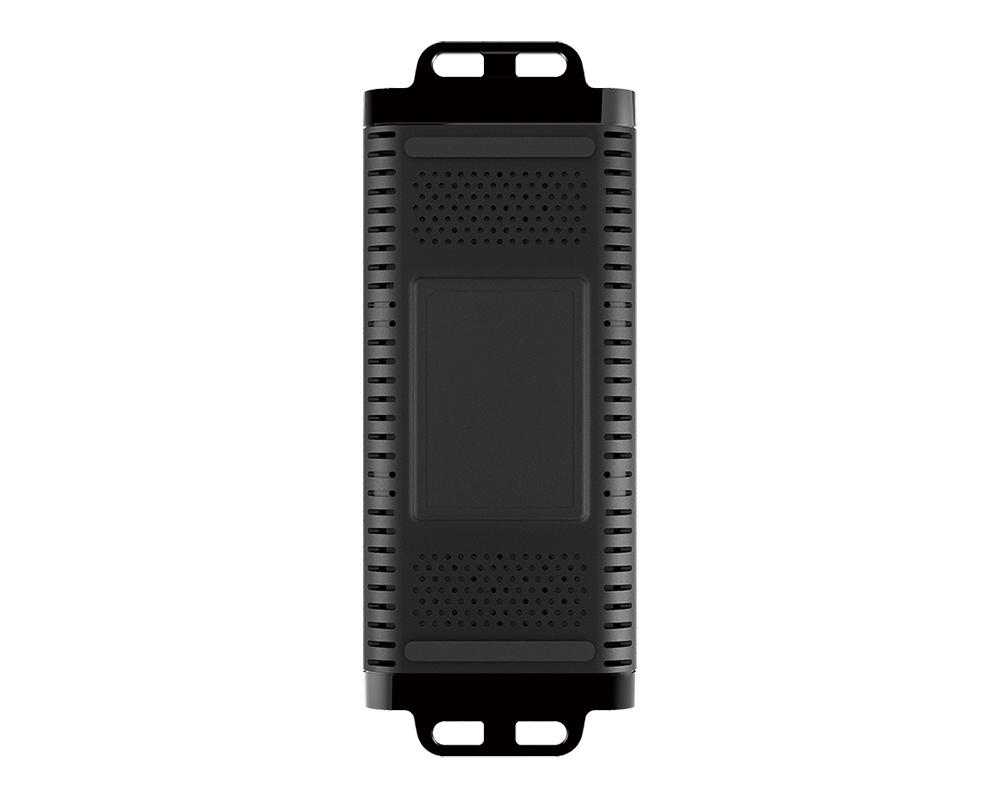

The DPE-302GE is powered by only a very small fraction of PoE power, and when combined with three mounting methods (built-in magnet, screw anchors, and Velcro) and a smart triangular prism design, the DPE-302GE can be deployed virtually anywhere. This PoE solution frees network devices from the restrictions of power availability by removing the need for a local power source. The DPE-302GE is also capable of operating in temperatures of up to 60 °C, offering up additional installation options.
Reliable Connectivity
The DPE-302GE 2-Port Gigabit PoE Extender intelligently communicates the maximum available current with a Powered Device (PD)**. This protection feature keeps the device safe from damage by preventing it from powering on in case there is not enough current. This safety feature can also automatically disable the port in the event of an electrical short circuit.
* Maximum distance as per IEEE 802.3u specifications. Distances exceeding 100 m can be reached by linking additional DPE-302GE units.
**Voltage output is set after coordination with a PD and can be within 44 V to 57 V.
Genel Özellikler

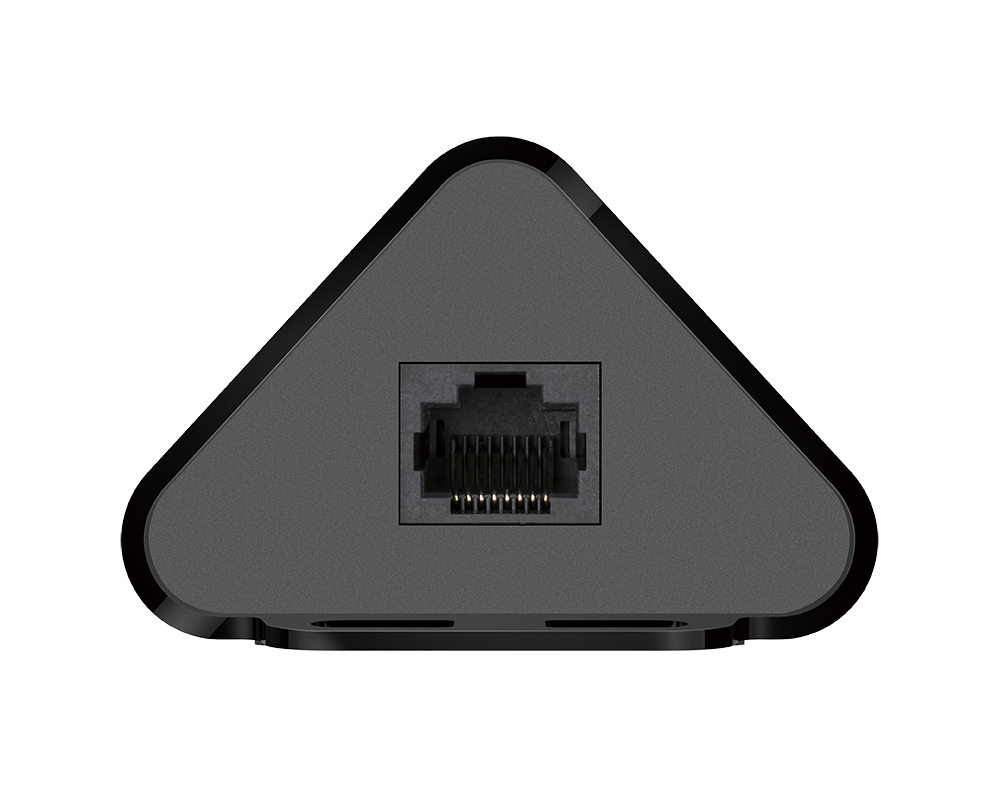

PoE + Data Ports (IN)
• 1 x 10/100/1000BASE-T RJ-45 port, supports half/full-duplex

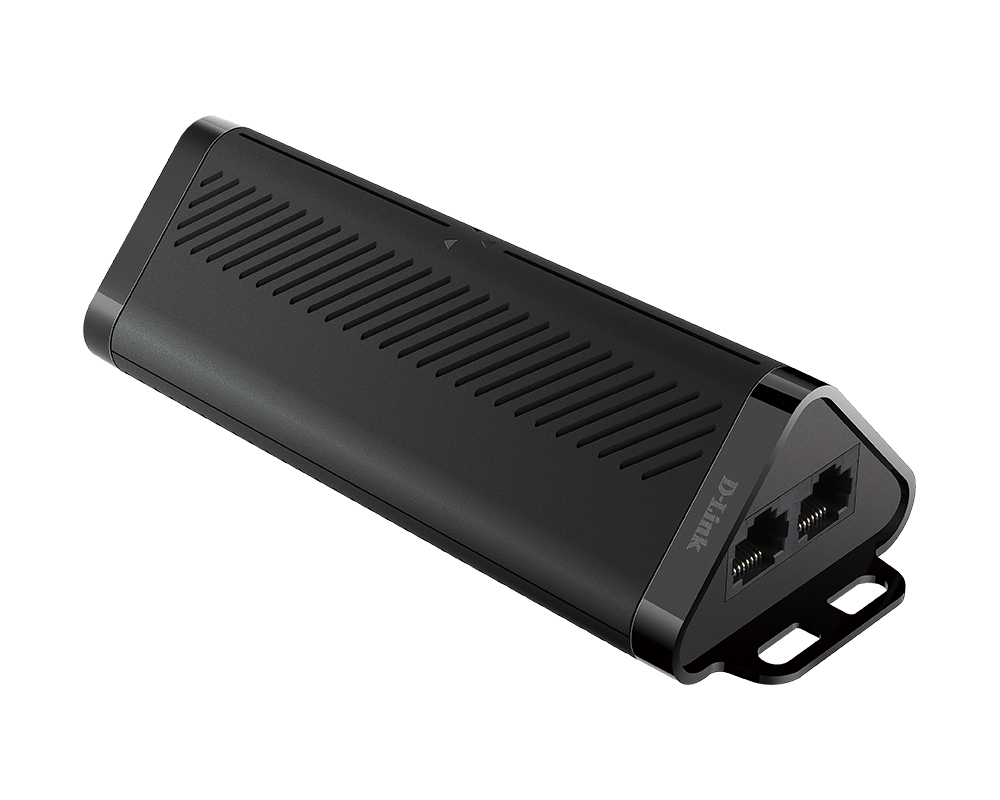

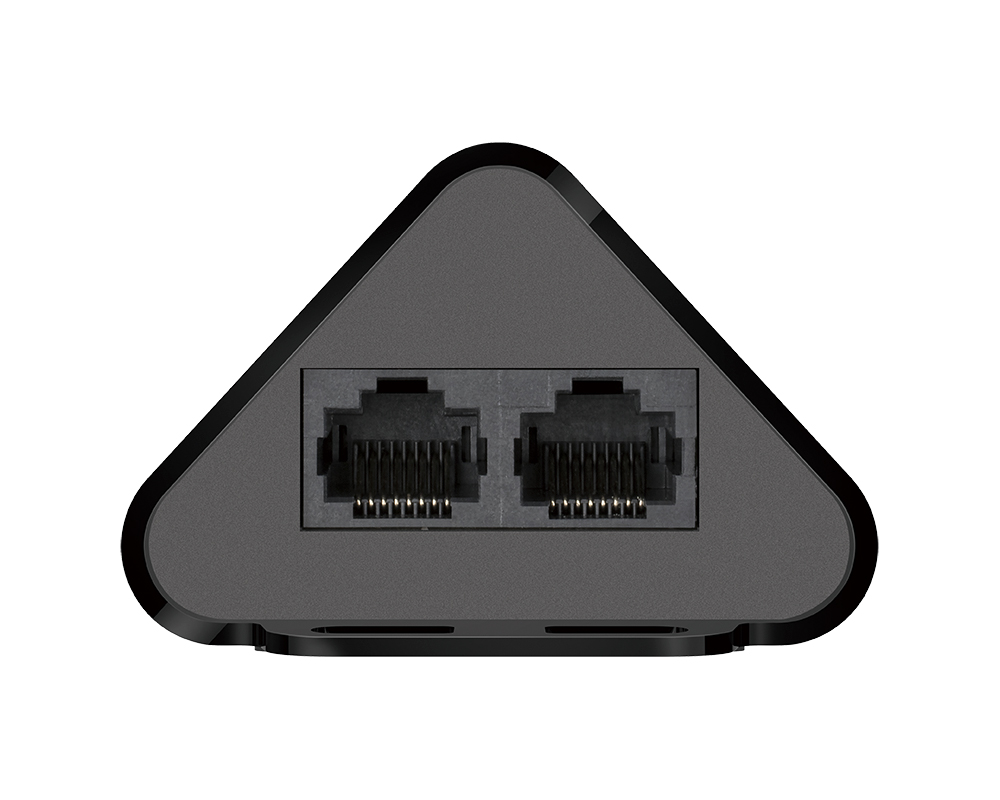

PoE + Data Ports (OUT)
• 2 x 10/100/1000BASE-T RJ-45 ports, supports half/full-duplex
Standards
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3x Flow Control
Indicator LEDs (Per Unit)
• 1 x PoE In
• 2 x PoE Out
• Solid blue: PoE connected
• Blinking blue: PoE budget overload
Dimensions (L x W x H)
• 155 x 60 x 40 mm
Weight
• 154 g
Power Input
• Power over Ethernet
Voltage Output**
• IEEE 802.3at: 50 V to 57 V DC
• IEEE 802.3af: 44 V to 57 V DC
Power Consumption
• Maximum: 3.05 W
• Standby: 1.61 W
Temperature
• Operating: -20 to 60 °C
• Storage: -40 to 85 °C
Humidity
• Operating: 10% to 95% non-condensing
• Storage: 5% to 95% non-condensing
Certifications
• CE
• FCC
• LVD/CE
• IC
* Maximum distance as per IEEE 802.3u specifications. Distances exceeding 100 m can be reached by linking additional DPE-302GE units.
**Voltage output is set after coordination with a PD and can be within 44 V to 57 V.
Çözümler
Sipariş Bilgisi
DPE-302GE 2-Port Gigabit PoE Extender
