GPON SFP ONT Module
Tanımlama
DPN-100 GPON ONT Module extends the GPON deployment in existing access network by transforming Uplink port from Ethernet to GPON. DPN-100 provides the standard SFP package with SGMII interface, which can easily replace the Ethernet SFP module existing in Ethernet gateway, switch, router etc.
Compliant with ITU-T G.984 and SFP MSA, DPN-100 Optical Network Terminal is equipped with OMCI stack, bi-directional optical transmitter and GPON MAC. The DPN-100 Transceiver supports up to 1.244 Gbps upstream and 2.488 Gbps downstream data rates.
Genel Özellikler
|
General
|
|
|
Interface
|
• 1 х 1000Base-X port
|
|
Transceiver Type
|
• SFP
|
|
Connector
|
• SC/APC
|
|
Unidirectional / Bidirectional
|
• Bidirectional
|
|
Standards
|
• ITU-T G.984.x (G.984.5 support)
• SFP MSA, INF-8074i
• SFF-8472
• FCC 47 CFR Part 15, Class B
• FDA 21 CFR 1040.10 & 1040.11, Class I
• IEEE 802.3
• ITU-T G.984.2 Amd1, Class B+
|
|
Maximum Cable Length
|
• 20 km
|
|
Data Rate
|
• Up to 1.244 Gbps Upstream; up to 2.488 Gbps Downstream
|
|
Cable Type
|
• Single-mode
|
|
Wavelength
|
• Tx: 1310 nm, Rx: 1490 nm
|
|
Transmit Power Range
|
• Max.: 5 dBm
• Min.: 0,5 dBm
|
|
Sensitivity
|
• -28 dBm
|
|
Saturation Optical Power
|
• -8 dBm
|
|
Supported Features
|
• Hot Swap
• 32 GEM-ports
• 8 T-CONTs
• Multicast GEM (up to 128 groups)
• FEC Support
• DBA Support
• 8 Priority Queues
• Serial Number / PLOAM Password Log in
• Dying gasp
|
|
Physical
|
|
|
Dimensions (L x W x H)
|
• 71,8 х 13,8 х 11,09 mm
|
|
Weight
|
• 30 g
|
|
Working Environment
|
|
|
Power Support
|
• 3.3 V
|
|
Max. Supply Current
|
• 750 mА
|
|
Consumption
|
• < 2 W
|
|
Temperature
|
• Operating: -30° to +60°C
• Storage: -20° to +85°C
|
|
Humidity
|
• Operating: 5% to 95%, non-condensed
|
|
Additional Information
|
|
|
Safety & EMI
|
• RoHS
• FCC/UL
• CE
|
|
Supply Package
|
|
|
• DPN-100 Module
|
|
Çözümler
Sipariş Bilgisi
DPN-100 GPON SFP ONT Module
Görseller

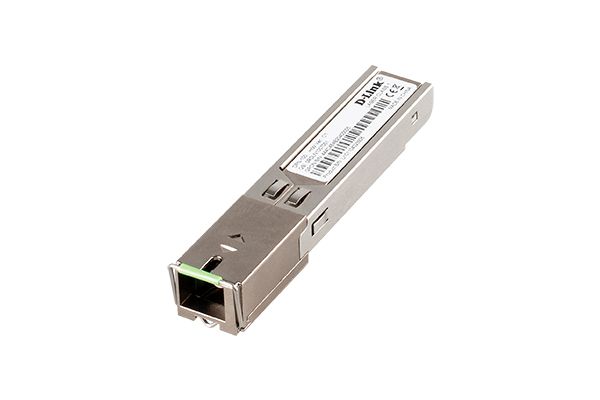

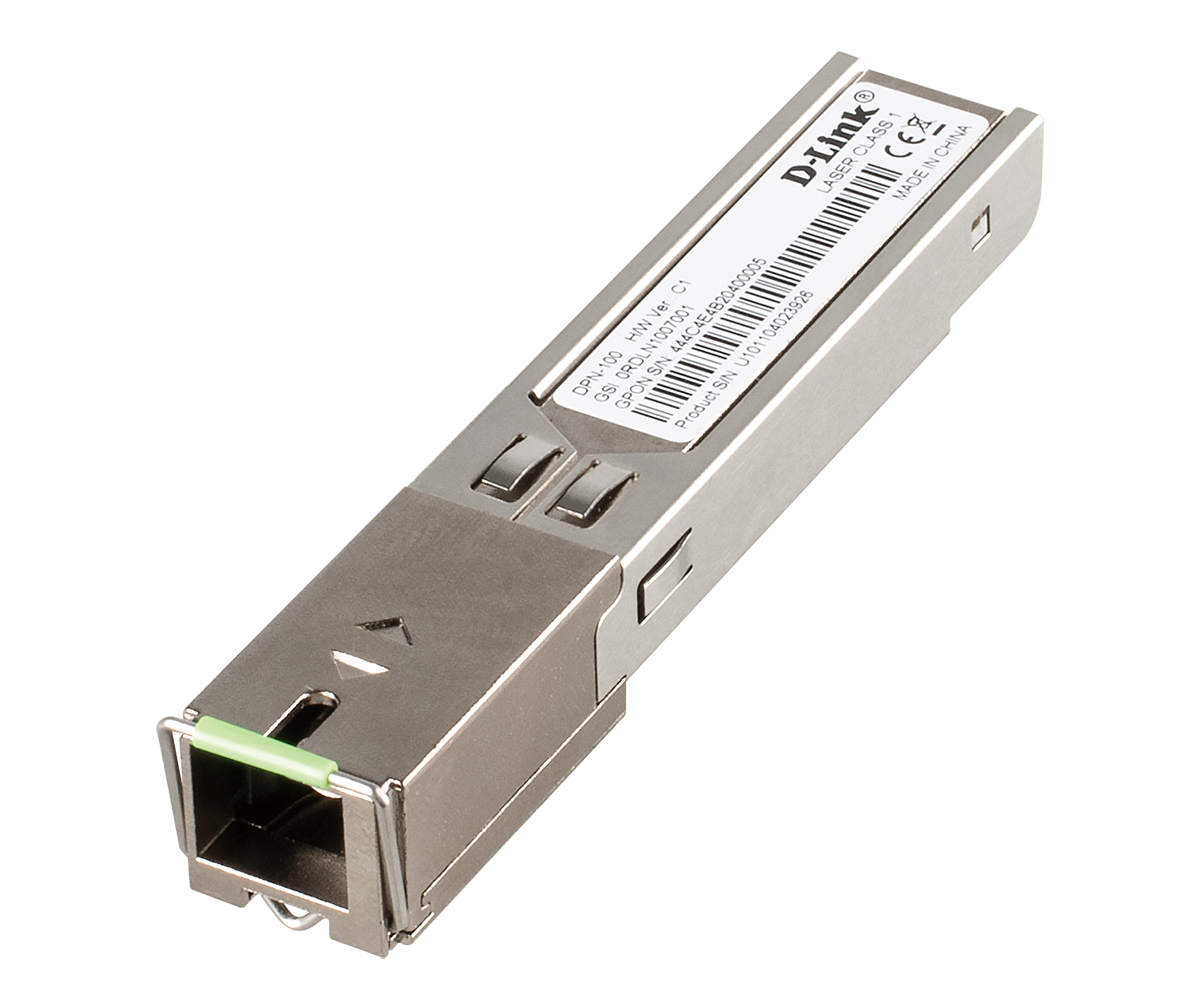

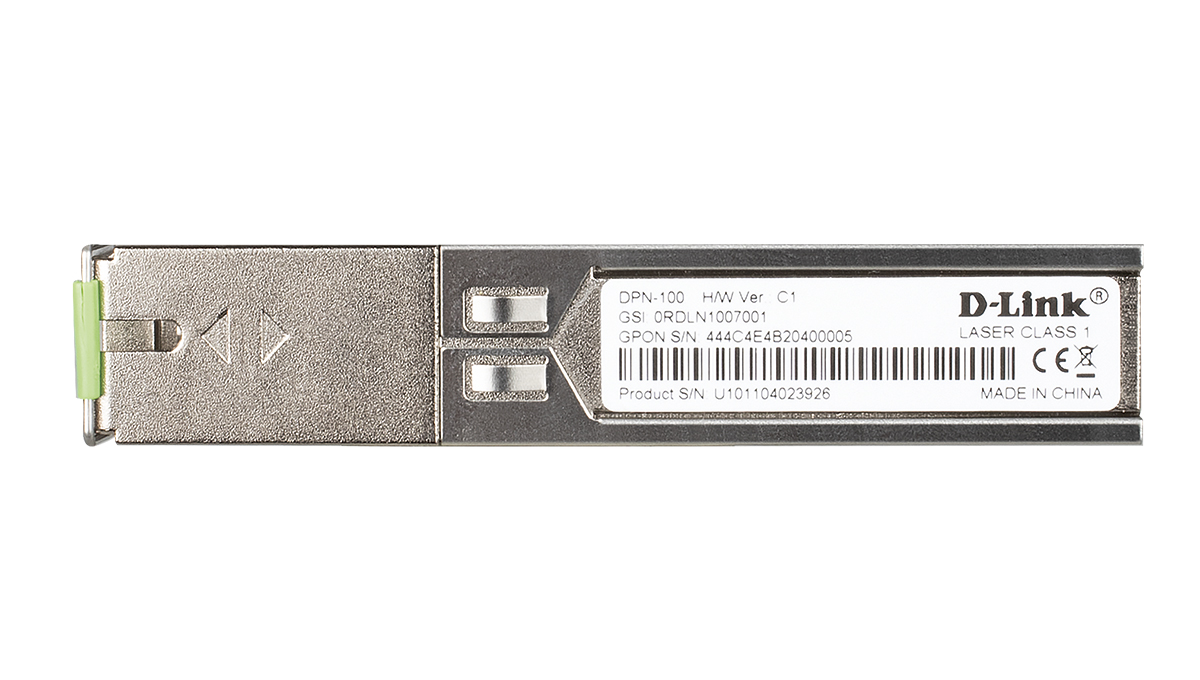

DPN-100/C1
