DCS-8600LH

Full HD Outdoor Wi-Fi Camera

Tanımlama

The DCS-8600LH Full HD Outdoor Wi-Fi Camera boasts a wide-angle lens that easily captures your entire outdoor area, from door to curb, in high-quality 1080p. You will know what is happening day or night with built-in night vision, motion and sound detection sending notifications to the mydlinkTM app. The rotatable head makes discrete installations easy even on ceilings. It has an IP65 rating, which means it can withstand outdoor weather environments such as rain or snow, and on cold and hot days it still can be placed outdoors.

Strength to Brave the Outdoor Elements
The camera is designed to be capable of withstanding the harshest winter temperatures from -25 °C (-4 °F) all the way up to blistering summer heat waves of 45 °C (113 °F). With an IP65 rating, the camera can withstand torrential rain and blizzards, and the surface of the camera does not have any gaps or crevices that could trap dust and ice. Perfect for keeping an eye on the most exposed outdoor areas of your home like the driveway, the front or back doors, and the garage. This camera is great for homes in heavy tropical, harsh winter, and desert environments.

Peace of Mind with 24/7 Complete Coverage
The DCS-8600LH uses a 135 ° wide-angle lens and a 1080p HD sensor to give you a clear view of the outside of your home. Round the clock monitoring is enabled by built-in infrared LEDs allowing up to 7 meters of night time viewing. The special magnetic design makes ceiling, wall, and doorway installations a breeze while wireless 802.11n keeps cabling to a minimum.

Anytime, Anywhere Access with mydlinkTM Cloud Recording
Enhanced with mydlinkTM cloud recording support, the DCS-8600LH makes it easy and convenient for you to look after your family and belongings by checking up on the outdoor areas surrounding your home or office. With a mydlinkTM cloud recording subscription, you can have peace of mind with your video recordings sent automatically to a cloud server. Play back recordings from the cloud or download video clips to your mobile device from anywhere, anytime through the Internet. Access real-time live views of your cameras using the mydlinkTM mobile app and set automated schedules via your mobile device, no matter where you are.

Genel Özellikler

Hardware Profile
• 1/2.7” Progressive CMOS sensor
• 7 m (23 ft) IR illumination distance
• Minimum illumination:
  • B/W (Night Mode), IR LEDs on: 0 lux
• Built-in Infrared-Cut Removable (ICR) Filter module
• Fixed length 3.26 mm
• Aperture F2.2
• Angle of view (16:9):
  • Horizontal: 115°
  • Vertical: 59°
  • Diagonal: 135°
• Built-in microphone
• Built-in speaker

Image Features
• Configurable image size
• Configurable motion detection windows

Video Compression
• Simultaneous H.264 format compression
• JPEG for still images

Video Resolution
• Main profile: 1080p (1920 x 1080) at up to 30 fps
• Secondary profile: 720p (1280 x 720) at up to 15 fps

Audio Support
• MPEG-2 AAC LC
• Configurable sound level detection

Connectivity
• 802.11n/g/b wireless with WPA/WPA2-PSK encryption*
• Operates on 2.4 GHz band
• microSD card slot 2
  - Supports up to 256 GB capacity
• Single-band 2T2R mode supports a maximum data rate of 150 Mbps (PHY rate) using 20 MHz bandwidth*
• Bluetooth Low Energy (BLE) 4.0

Network Protocols
• IPv6/IPv4
• HTTPS
• RTSP
• Bonjour

Event Management
• Motion detection
• Sound detection
• Cloud recording
• Manually taken snapshots and video clips are saved to mobile device or microSD card
• Push Notifications

Mobile Support
• mydlink app for iPhone, iPad, and Android phone and tablet**

Physical Parameters
Environment
• For indoor and outdoor use
• IP65 weatherproof rating

Weight
• Camera: 290 g
• Wall Mount: 32 g

Dimensions
• Diameter: 88 mm
• Height: 69.6 mm

Power Adapter
• Input: 100 to 240 V AC, 50/60 Hz
• Output: 5 V DC 1.0 A (Micro-USB)

Power Consumption
• Maximum 3.95 W ± 5%

Temperature
• Operating: -25 to 45 °C
• Storage: -25 to 70 °C

Humidity
• Operating: 20 to 80% non-condensing
• Storage: 20% to 80% non-condensing

Certifications
• CE
• CE LVD
• RCM
• FCC
• ICES

* Maximum wireless signal rate derived from IEEE standard 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.
** Please refer to the app’s store page for device compatibility requirements.

Çözümler

Sipariş Bilgisi

DCS-8600LH  Full HD Outdoor Wi-Fi Camera

Görseller

DCS-8600LH/Ax

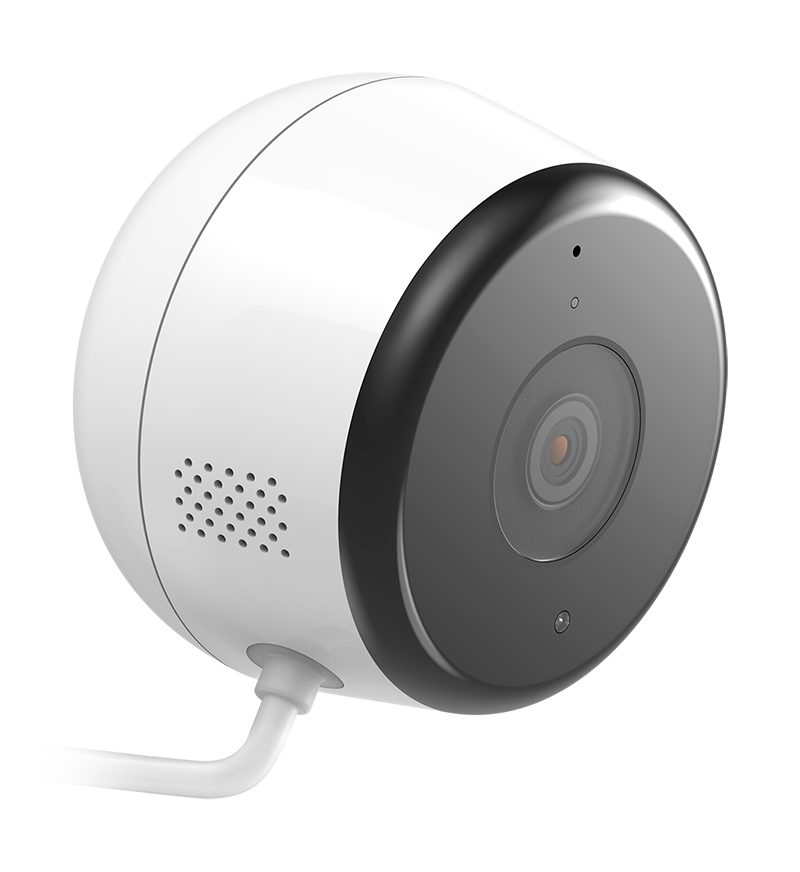

View from the right

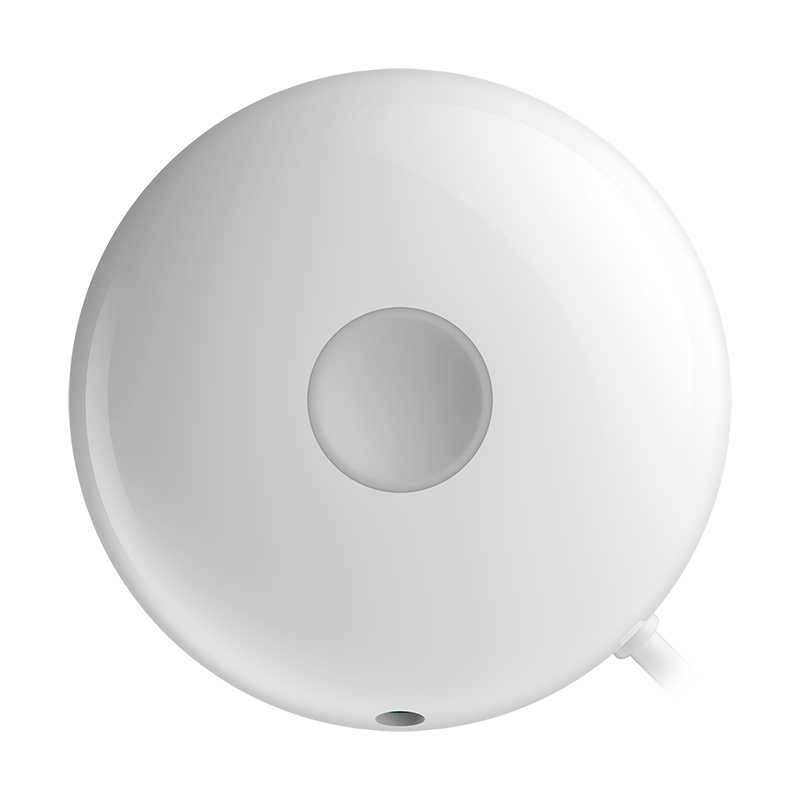

Back view

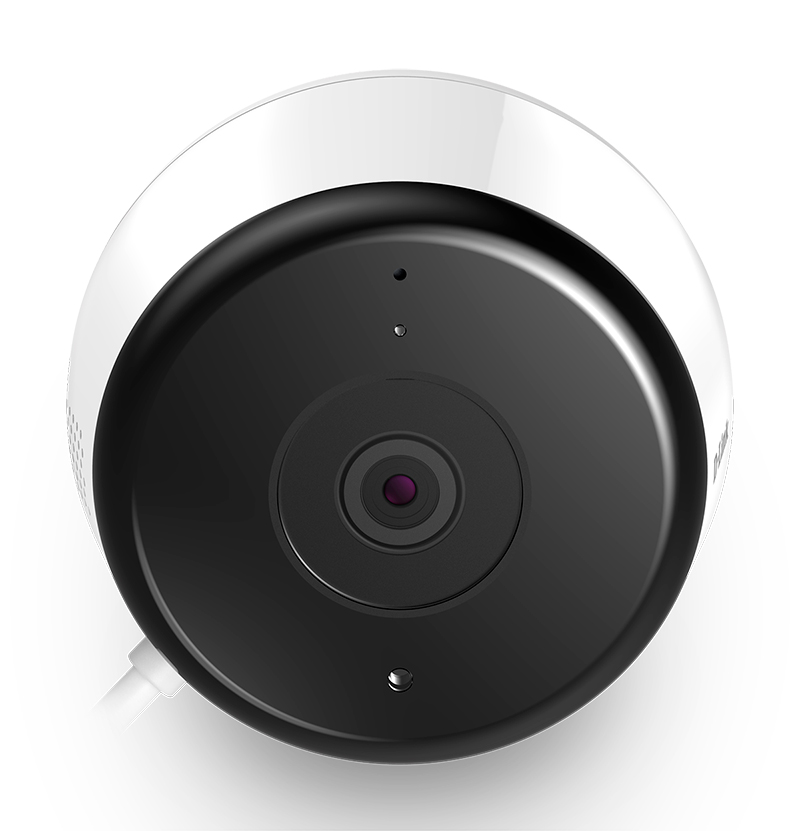

Front view

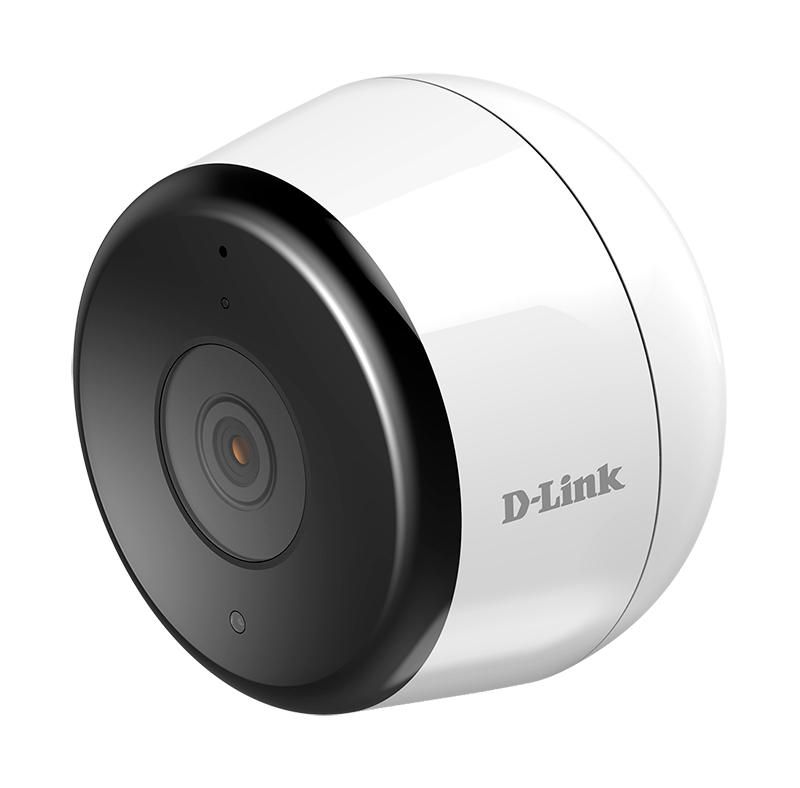

Left side view
