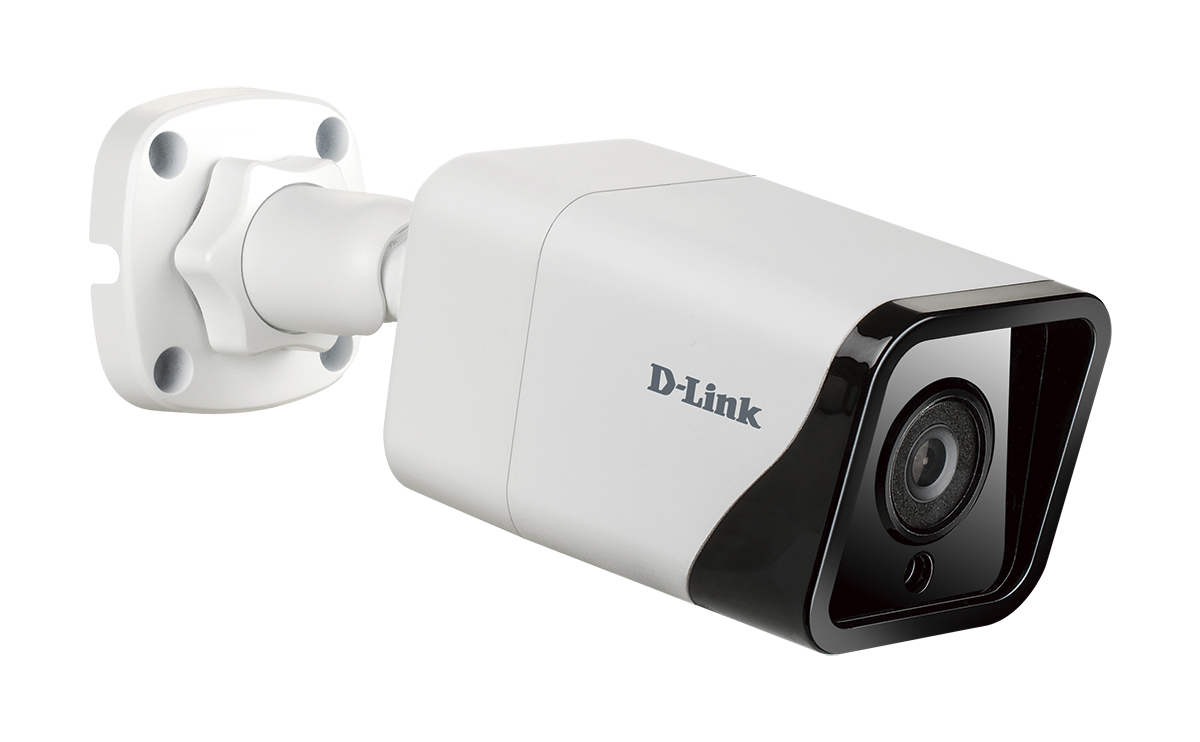

DCS-4714E
Vigilance 4 Megapixel H.265 Outdoor Bullet Camera
Tanımlama
The D-Link DCS-4714E Vigilance 4 Megapixel H.265 Outdoor Bullet Camera is a high-definition professional surveillance solution suitable for small, medium, and large enterprises. The camera uses a high-sensitivity 1/2.8” megapixel progressive scan CMOS sensor with onboard WDR image enhancement to deliver truly superior quality video in all conditions. The all-in-one rugged design makes this camera extremely reliable and ideal for deployment in surveillance applications without the need for additional accessories.
High-Quality Streaming & Recording
To maximize bandwidth efficiency and improve image quality, the DCS-4714E provides real-time video compression using the H.265, H.264, and MJPEG codecs, and supports two separate profiles for simultaneous video streaming and recording. Video resolutions of up to 2592 x 1520 provide clear details.
Versatile Monitoring in All Environments
The DCS-4714E’s features WDR image enhancement to deliver improved image quality in conditions with uneven or difficult lighting, so you can identify subjects that are backlit or in brightly-lit areas. In low-light situations, the IR-cut filter automatically slides out of the way to use all available light. The DCS-4714E also has built-in IR LED illuminators with a 30-meter range, allowing the camera to keep watch even in complete darkness. IP66 certification ensures the camera is completely protected from dust and water in any environment. These features work together to give you a reliable surveillance camera capable of monitoring indoors or outdoors 24/7.
Robust Management Software
The DCS-4714E Vigilance 4 Megapixel H.265 Outdoor Bullet Camera supports D-ViewCam, a complete surveillance software package that enables you to view, manage, and record from several cameras on a single computer in a central location. Recordings and e-mail alerts can be triggered upon motion detection or by digital input devices. This feature automatically keeps a record of any unusual activity and notifies administrators when no one is around to monitor on-site.
Flexible Connectivity
The DCS-4714E has built-in 802.3af-compliant PoE support that simplifies installation by providing power and networking connectivity over a single standard network cable: This feature can speed along installation by reducing the need to lay extra electrical wiring and install outlets in the location since a motion detection or by digital input devices. This feature automatically keeps power supply is not required.
Genel Özellikler
Hardware Profile
• 1/2.8” 4 Megapixel progressive CMOS sensor
• 30 meter IR illumination distance
• Minimum illumination:
- Color: 0.05 lux @(F2.0, AGC ON)
- B/W: 0 lux @(IR LED ON)
• Built-in Infrared-Cut Removable (ICR) Filter module
• 18x digital zoom
• Minimum object distance 0.5 m
• Focal length: 2.8 mm
• Aperture: F2.0
• Angle of view:
- (H) 100В°
- (V) 58В°
- (D) 126В°
Camera Housing
• IP66 compliant weatherproof housing
Image Features
• Configurable image size, quality, frame rate, and bit rate
• Configurable motion detection windows
• Configurable privacy mask zones
• Configurable shutter speed, brightness, saturation, contrast, sharpness and 3D filter
• Auto White Balance (AWB)
• Auto Gain Control (AGC)
• Wide Dynamic Range (WDR)
• Time stamp and text overlays
• Corridor mode
Video Compression
• Simultaneous H.265/H.264/MJPEG format compression
• JPEG for still images
Max. Video Resolution
• 2592 x 1520 at up to 30 fps
External Device Interface
• 10/100 Base-TX Fast Ethernet port (supports 802.3af PoE Class 3)
• microSD card slot*
Network Protocols
• IPv4
• HTTP/HTTPS
• RTP/RTSP/RTCP
• TCP
• UDP
• DHCP
• DNS
• DDNS
• NTP
• FTP
• SMTP-клиент
• Соответствие ONVIF Profile S
• ARP
• ICMP
• PPPoE
• SNMP v1/v2c/v3
Event Management
• Motion detection
• Event notification and uploading of snapshots via e-mail or FTP
• Multiple event notifications
Remote Management
• Configuration accessible via web browser
System Requirements for Web Interface
• Operating System: Microsoft Windows 10
• Browser: Internet Explorer 11 for full function; Chrome and Firefox (MJPEG only)
D-ViewCam Software Functions
• Supports all management functions provided in web interface
• Viewing of several cameras on one screen
• Remote management/control of several cameras
• Scheduled motion triggered, or manual recording options
D-ViewCam System Requirements
• Operating System:
- 64-bit: Windows 10
• Protocol: Standard TCP/IP
Physical Parameters
Weight
• 560 grams В± 5%
Dimensions
• 112.2 x 64 x 64 РјРј (camera only)
• 187.6 x 64 x 64 РјРј (including bracket)
Power Adapter (is not included)
• Input: 100 to 240 V AC, 50/60 Hz
• Output: 12 V DC 1.5 A
Power Consumption
• 8 W В± 5% (PoE)
Temperature
• Operating: -30В° to 50В°C
• Storage: -20В° to 70В°C
Humidity
• Operating: up to 90% non-condensing
• Storage: up to 90% non-condensing
Certifications
• CE
• FCC
• RCM
* microSD card not included. Supports capacity up to 256 GB.
