DCR-100
USB Smart Card Reader
Tanımlama

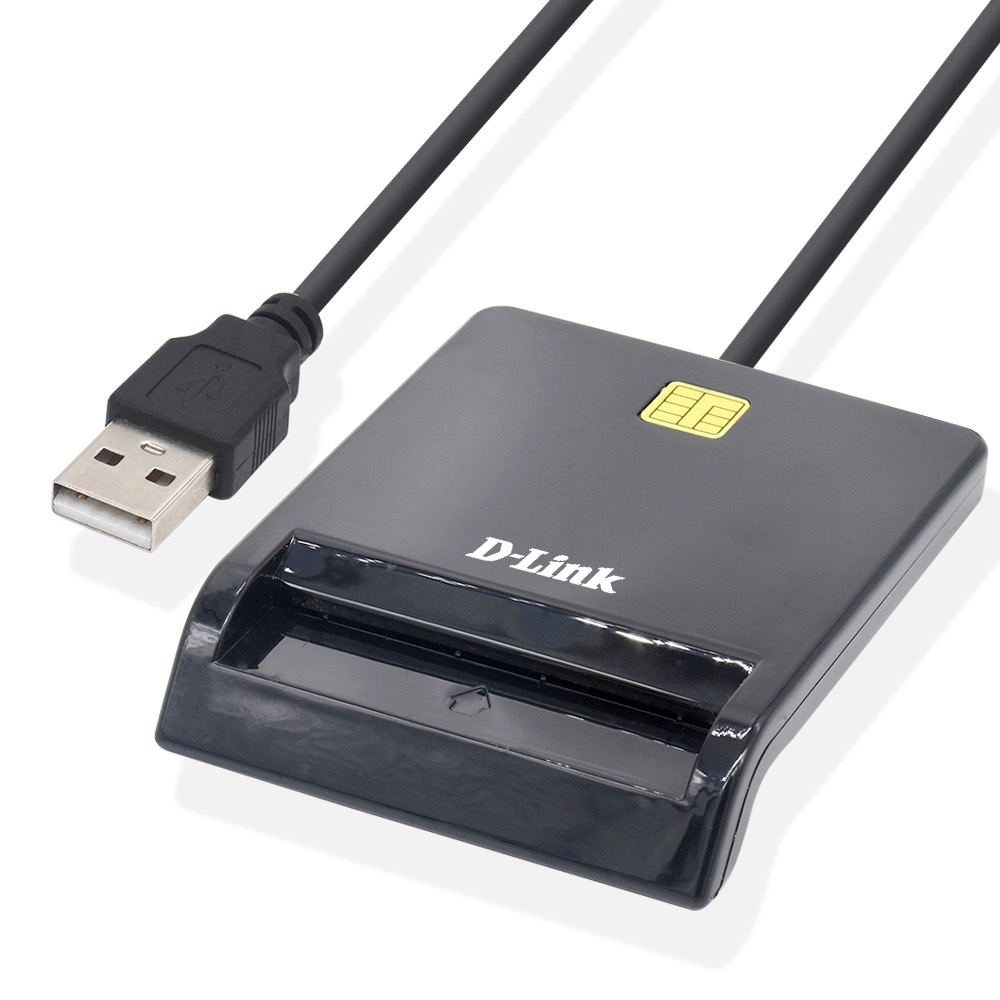

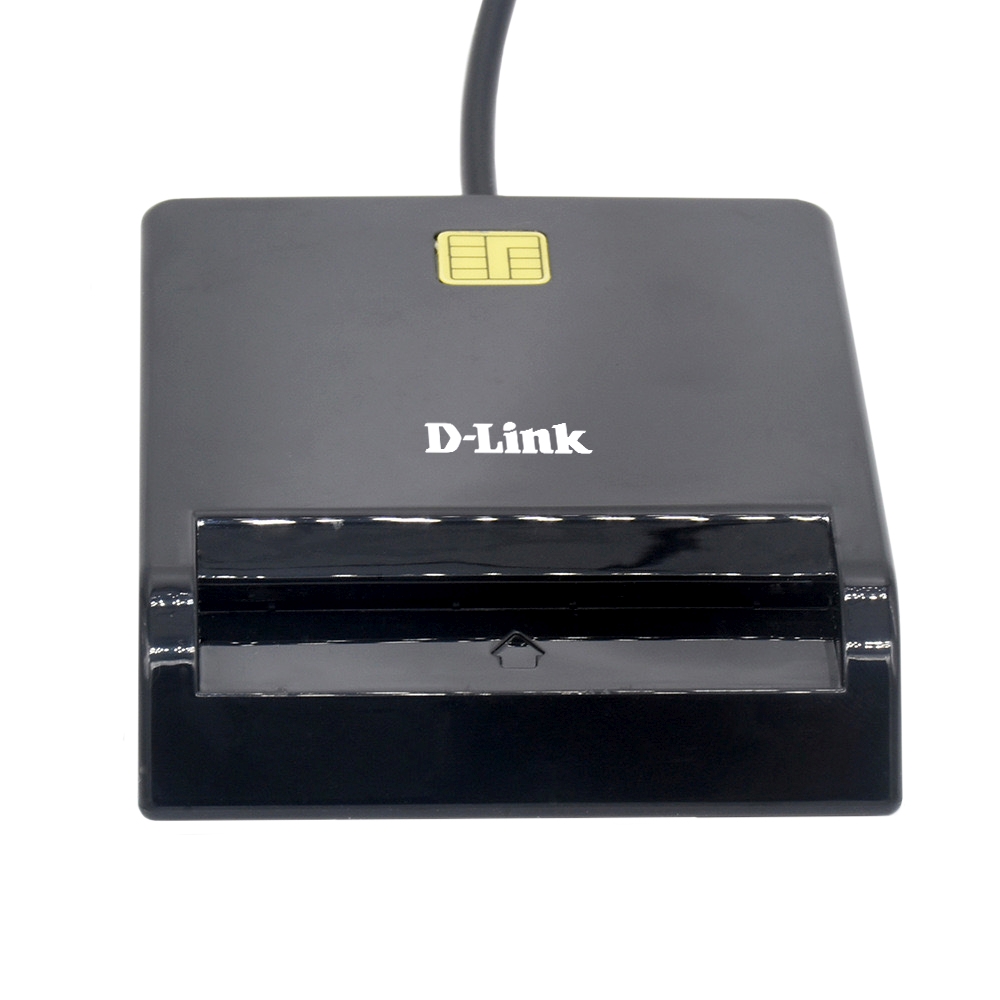

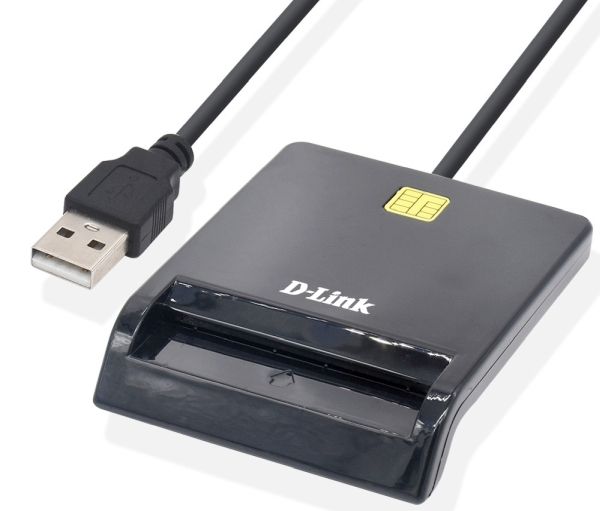

The DCR-100 device is designed for reading the contact smart cards, e.g. bank cards and ID cards. This device is equipped with the USB 2.0 interface and can be connected to your PC as well as to your notebook. The DCR-100 smart card reader has compact design, provides easy installation and can be used at home or office. This convenient and reliable smart card reader is compliant with ISO 7816, EMV2 2000 Level 1, Microsoft WHQL standards and compatible with Windows, Mac OS and Linux operating systems.
Genel Özellikler
Host interface
• USB 2.0 CCID1 Type-A (compliant with USB 1.1)
Status LED
• Red – card reader is connected to your computer
• Blue – smart card is inserted into the card reader
Supported cards
• ATM/CAC/ID/IC/SIS/Credit cards
Supported card types
• ISO 7816 Class A, B, C (5 V, 3 V, 1.8 V) smart cards
Standards
• ISO 7816, EMV2 2000 Level 1, Microsoft WHQL
Smart card interface speed
• 420 kbps (when supported by card)
Card operation protocols
• T=0, T=1
Supported operating systems
• Windows XP/Vista/7/8/8.1/10
• Mac OS 10.4 and above
• Linux Redhat 9, Ubuntu 8.04, Fedora Core 9+
Physical Parameters
Dimensions (L x W x H)
• 6.51 x 8.36 x 0.95 cm
Weight
• 55 g
Weight (including package)
• 93 g
Cable length
• 100 cm
Environmental Conditions
Power input
• From computer (USB bus powered)
Temperature
• Operating: 0 to 40 °C
• Storage: -20 to 60 °C
Humidity
• Operating: 10% to 90% non-condensing
• Storage: 5% to 95% non-condensing
Çözümler
Sipariş Bilgisi
DCR-100/B1A USB Smart Card Reader
Görseller
DCR-100/B1
