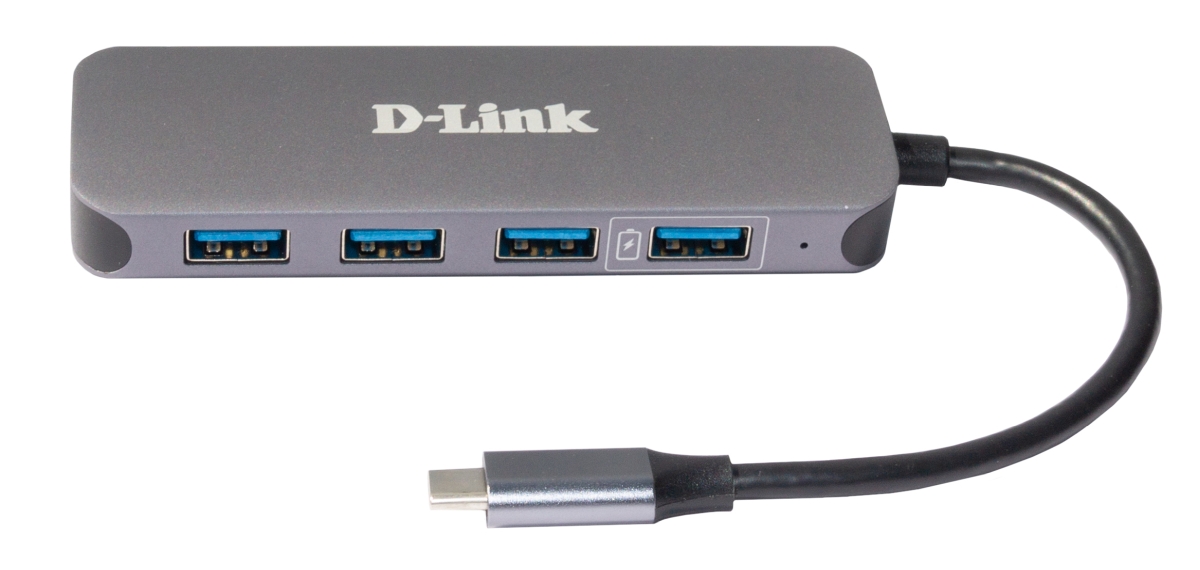

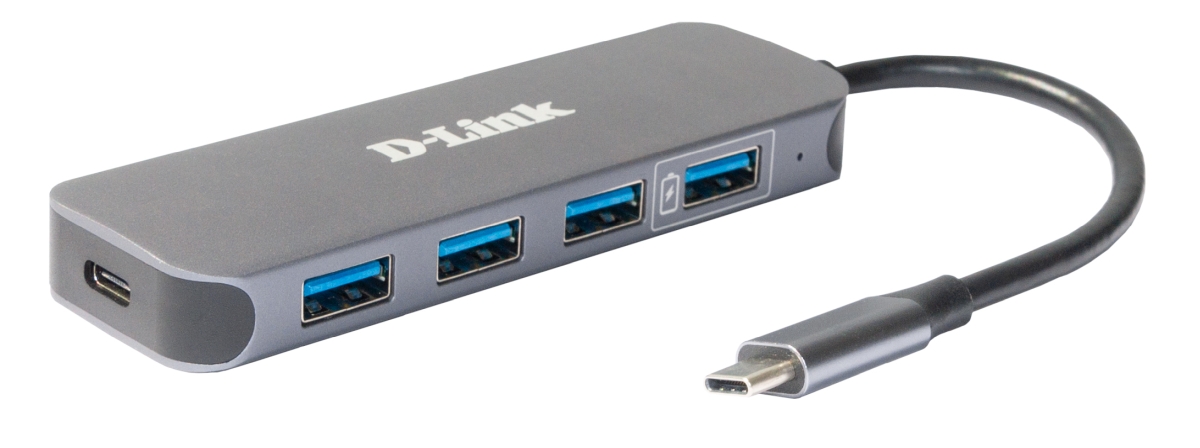

DUB-2340
USB-C Hub with 4xUSB 3.0 (One Port with Fast Charge) and USB-C/PD 3.0
Tanımlama
The DUB-2340 hub provides an easy way to add four USB 3.0 ports to your laptop or desktop computer equipped with USB Type-C port. One of the four USB 3.0 ports supports Fast Charge mode, allowing you to reduce time for charging mobile devices. USB Type-C port is intended for connecting PD 3.0 charger, allowing to deliver not only data, but also power to your laptop via connected DUB-2340 hub1. This means you can charge your laptop while also connect additional devices like digital and web cameras, card readers, hard drives, mice, keyboards, printers, scanners, and other peripheral devices.
Add Four USB 3.0 Ports to Your Computer
With the DUB-2340 hub, you can conveniently add four USB 3.0 ports and connect peripheral devices to your computer. USB 3.0 technology supports data rates of up to 5 Gbps.
Fast Charge Mode
One of the four USB 3.0 ports supports Fast Charge mode. Battery Charging 1.2 compliance allows this port to supply charging current up to 1.5 A for chargeable devices.
PD 3.0 Standard
USB Type-C port is intended for connecting PD 3.0 charger, allowing to deliver not only data, but also power to your laptop via connected DUB-2340 hub1.
Plug-and-Play Support
Simply connect the DUB-2340 to your computer. It’s that easy - no drivers or software installation is required.
1Please make sure that the USB Type-C port of your laptop supports PD 3.0.
Genel Özellikler
|
Hardware
|
|
|
Interfaces
|
• One USB Type-C connector
• One USB 3.0 Type-A port with Fast Charge mode support
• Three USB 3.0 Type-A ports
• One USB Type-C/PD 3.0 port
|
|
LEDs
|
• Power (per device)
- Solid green - power is on
|
|
General
|
|
|
Standards
|
• USB 3.0
• USB 2.0
• USB 1.1
|
|
Data rate
|
• Up to 5 Gbps
|
|
System requirements
|
• Available USB Type-C port
• Windows 7/8/8.1/10, macOS (OS X 10.8 and above)
|
|
Physical Parameters
|
|
|
Dimensions (L x W x H)
|
• 108 x 35 x 13.5 mm
|
|
Weight
|
• 0.06 kg
|
|
Environmental Conditions
|
|
|
Power input
|
• From computer (USB bus powered)
|
|
Supplied charging voltage/current
|
• 20 V / 3 A (PD 3.0)
• Max. 1.5 A for Battery Charging 1.2 compliant port
• 0.5 A for standard ports
|
|
Temperature
|
• Operating: 0 to 40 °C
• Storage: -10 to 70°C
|
|
Humidity
|
• Operating: up to 85% non-condensing
• Storage: up to 85% non-condensing
|
|
Package Contents
|
|
|
• DUB-2340 hub
• Quick Installation Guide
• Warranty documents
|
|
Çözümler
Sipariş Bilgisi
|
DUB-2340/A1A
|
USB-C Hub with 4xUSB 3.0 (One Port with Fast Charge) and USB-C/PD 3.0
|
