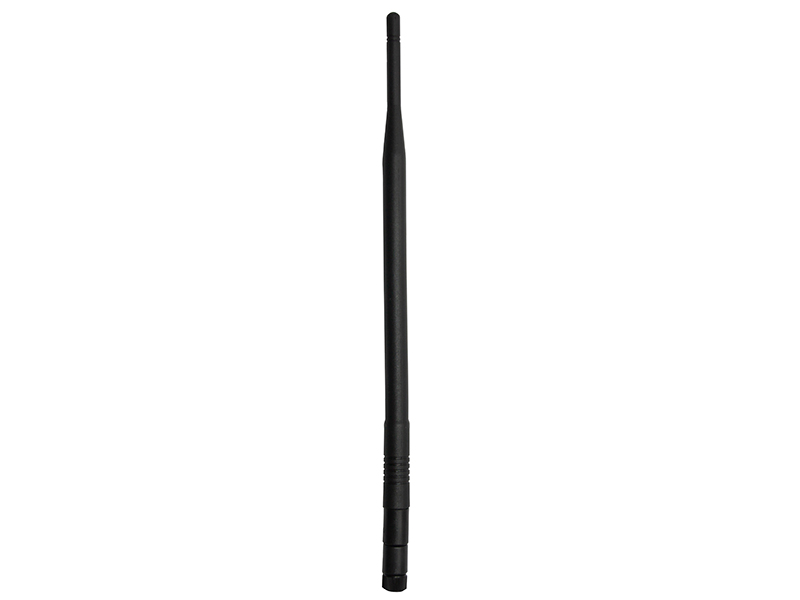

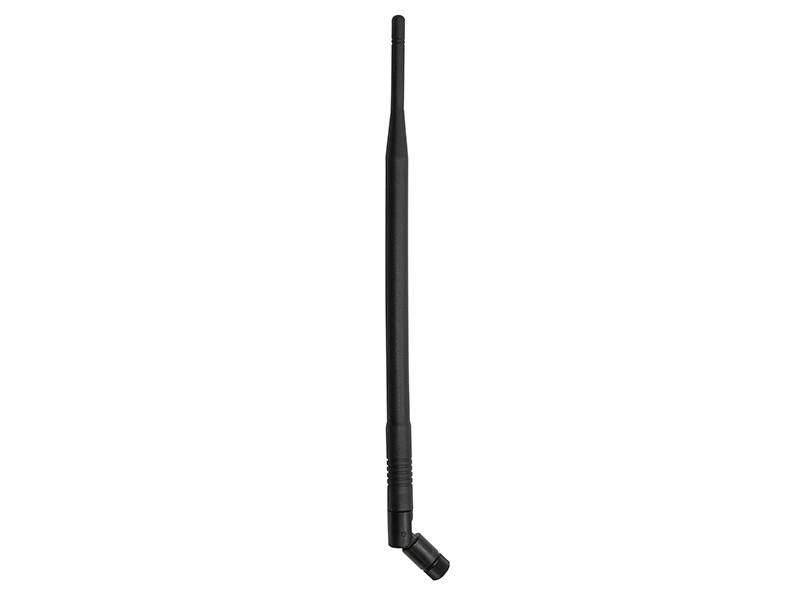

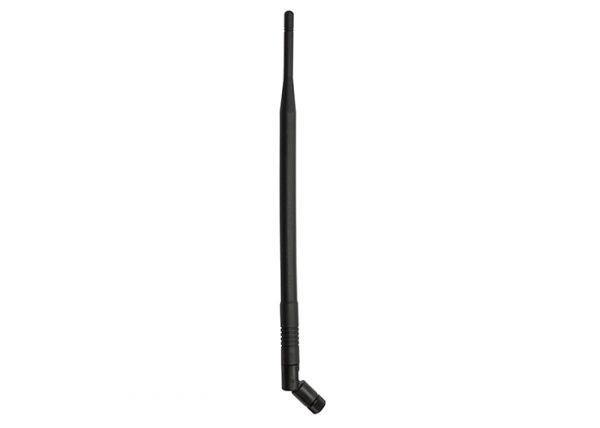

ANT24-0802C
Omni-Directional Antenna, 8 dBi
Tanımlama
The ANT24-0802C omni-directional antenna with 8 dBi gain operates in 2.4 - 2.5 GHz frequency band and has RP-SMA Plug connector.
The ANT24-0802C antenna connects to a wireless device equipped with detachable antennas, for example access point or router. The 8 dBi ANT24-0802C antenna allows you to extend the 2.4 GHz wireless network coverage and improve the quality of signal reception/transmission. This antenna is designed for indoor use.
Genel Özellikler
Connector
• RP-SMA Plug
Frequency band
• 2.4 GHz - 2.5 GHz
Gain
• 8 dBi
VSWR
• 2.0 : 1 Max.
Polarization
• Linear, vertical
HPBW / horizontal
• 360°
HPBW / vertical
• 24°
Impedance
• 50 Ohms
Power handling
• 10 W
Lightning protection
• DC Ground
Physical Parameters
Dimensions
• Length: 290 mm
• Diameter: 13 mm
Weight
• 0.2 kg
Environmental Conditions
Survival wind speed
• 180 km/hr
Operating Temperature
• -40 to 80 °C
Operating Humidity
• 100% @ 25 °C
Çözümler
Sipariş Bilgisi
ANT24-0802C Omni-Directional Antenna, 8 dBi
Görseller
ANT24-0802C/B1
