DMC-G10SC

100/1000Base-T to 1000Base-LX SC Single-mode Media Converter (10 km)

Tanımlama

The DMC-G10SC is a media converter designed to convert a twisted-pair 100/1000Base-T Gigabit Ethernet connection to a single-mode fiber 1000Base-LX Gigabit Ethernet connection, that allows to extend a connection distance (up to 10 km) between two devices. This media converter is equipped with one RJ-45 for twisted-pair and one fiber optic SC port.

Genel Özellikler

Hardware
Interfaces
• One 10/100/1000Base-T port
• One 1000Base-LX SC port
LEDs
• PWR
• Link/Act (SC)
• Link/Act (RJ-45)
Functionality
Standards and Functions
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3z 1000Base-LX
• IEEE 802.3x Flow Control in full-duplex mode
• Auto MDI/MDIX adjustment for copper port
• Link Fault Pass-through support for link status control
Maximum Packet Size
• 16 KB
Physical Parameters
Dimensions (L x W x H)
• 70.5 x 93.5 x 26 mm
Weight
• 124 g
Environmental Conditions
Power Supply
• 5 V DC, 0.55 A power adapter
Max. Power Consumption
• 1.65 W
Wavelength
• 1310 nm
Length of Supported Fiber Optic Cable
• Up to 10 km
Temperature
• Operating: 0 to 55 °C
• Storage: -25 to 70 °C
Humidity
• 20% to 80% non-condensing

Çözümler

Sipariş Bilgisi

DMC-G10SC/A1A   100/1000Base-T to 1000Base-LX SC Single-mode Media Converter (10 km)

Görseller

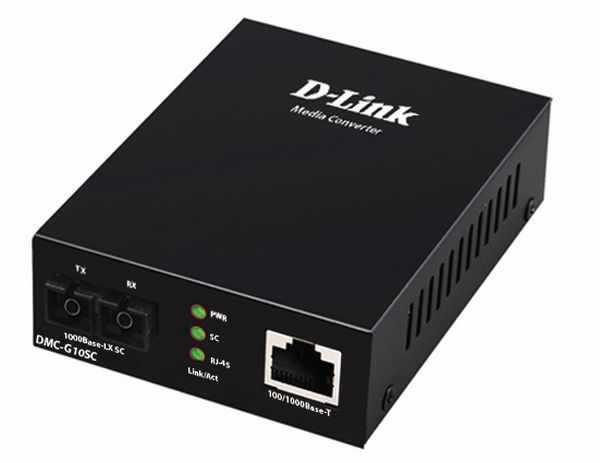

DMC-G10SC/A1
Front view
