DMC-F20SC-BXD
10/100Base-TX to 100Base-FX SC Single-mode WDM Media Converter (TX: 1550 nm; RX: 1310 nm; 20 km)
Tanımlama
The DMC-F20SC-BXD and the DMC-F20SC-BXU are media converters (they operate in pair) designed to convert a twisted-pair 10/100Base-TX Fast Ethernet connection to a single-mode fiber 100Base-FX Fast Ethernet connection, that allows to extend a connection distance (up to 20 km) between two devices. These media converters are equipped with one RJ-45 for twisted-pair and one fiber optic SC port.
The DMC-F20SC-BXD and the DMC-F20SC-BXU media converters combine transmitting and receiving signals onto one fiber strand using two wavelengths. These media converters are used in pair. At one end, one media converter uses one wavelength to transmit and a second wavelength to receive. At the other end, the other media converter flips that relationship.
Genel Özellikler
Interfaces
• One 10/100Base-TX port
• One 100Base-FX SC port
LEDs
• PWR
• Link/Act (SC)
• Link/Act (RJ-45)
Standards and Functions
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3u 100Base-FX
• Auto MDI/MDIX adjustment for copper port
Maximum Packet Size
• 10 KB
Physical Parameters
Dimensions (L x W x H)
• 70.5 x 93.5 x 26 mm
Weight
• 134 g
Power Supply
• 5 V DC, 0.55 A power adapter
Max. Power Consumption
• 1.5 W
Wavelength
• Tx: 1550 nm, Rx: 1310 nm
Length of Supported Fiber Optic Cable
• Up to 20 km
Temperature
• Operating: 0 to 55 °C
• Storage: -25 to 70 °C
Humidity
• 20% to 80% non-condensing
Çözümler
Sipariş Bilgisi
DMC-F20SC-BXD/B1A 10/100Base-TX to 100Base-FX SC Single-mode WDM Media Converter (TX: 1550 nm; RX: 1310 nm; 20 km)
Görseller

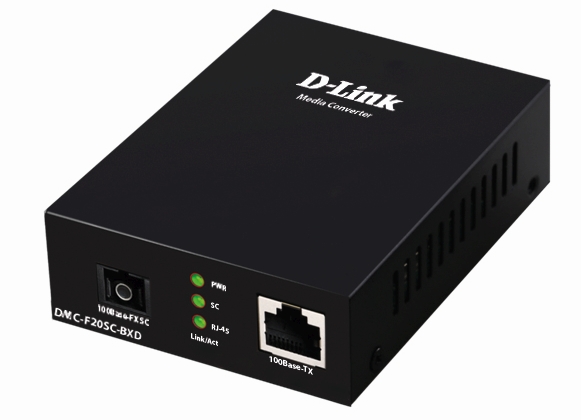

DMC-F20SC-BXD/B1
