DMC-F60SC
10/100Base-TX to 100Base-FX SC Single-mode Media Converter (60 km)
Tanımlama
The DMC-F60SC is a standalone media converter designed to convert a twisted-pair 10/100Base-TX Fast Ethernet connection to a single-mode fiber 100Base-FX Fast Ethernet connection, that allows to extend a connection distance (up to 60 km) between two devices. This media converter is equipped with one RJ-45 for twisted-pair and one fiber optic SC port.
Genel Özellikler
|
Hardware
|
|
|
Interfaces
|
• One 10/100Base-TX port
• One 100Base-FX SC port
|
|
LEDs
|
• PWR
• Link/Act (SC)
• Link/Act (RJ-45)
|
|
Functionality
|
|
|
Standards and Functions
|
• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3u 100Base-FX
• Auto MDI/MDIX adjustment for copper port
|
|
Maximum Packet Size
|
• 10 KB
|
|
Physical Parameters
|
|
|
Dimensions (L x W x H)
|
• 70.5 x 93.5 x 26 mm
|
|
Weight
|
• 134 g
|
|
Environmental Conditions
|
|
|
Power Supply
|
• 5 V DC, 0.55 A power adapter
|
|
Max. Power Consumption
|
• 1.5 W
|
|
Wavelength
|
• 1310 nm
|
|
Length of Supported Fiber Optic Cable
|
• Up to 60 km
|
|
Temperature
|
• Operating: 0 to 55 °C
• Storage: -25 to 70 °C
|
|
Humidity
|
• 20% to 80% non-condensing
|
Çözümler
Sipariş Bilgisi
|
DMC-F60SC/B1A
|
10/100Base-TX to 100Base-FX SC Single-mode Media Converter (60 km)
|

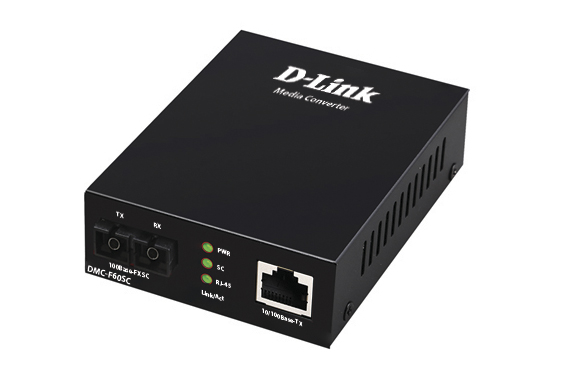

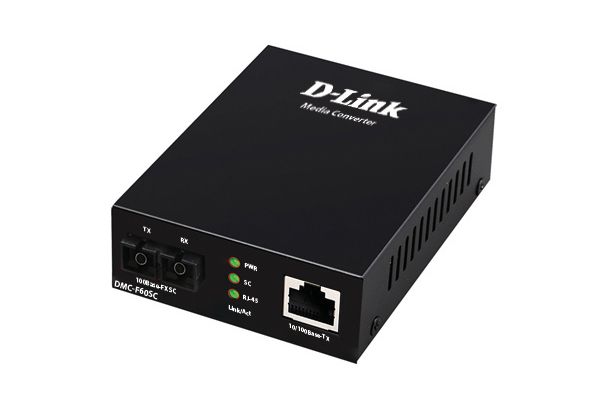

Görseller
DMC-F60SC/B1
