DWR-932C

4G/LTE Mobile Router

Tanımlama

The DWR-932C 4G/LTE Mobile Router is a 4G LTE Cat4 high speed broadband wireless WAN (WWAN) to Wi-Fi mobile hotspot. The DWR-932C uses a 4G Internet connection to give you an easy-to-set-up Wi-Fi network anywhere you need one. Instead of limiting your mobile Internet connection to a single device through a USB dongle, the DWR-932C allows you to create a Wi-Fi hotspot to share your connection. The convenient size means you can share your connection anywhere; use it in a cafe to send e-mail while your friend reads the news, or at the airport so you and your coworkers can work while waiting for your plane.

Connect Anywhere
Simply insert your data-enabled SIM card to set up your very own mobile Wi-Fi network. The DWR-932C is perfect for when you need to quickly set up an impromptu network; it’s ideal for business trips when you need to share an Internet connection with everybody during a meeting, or use it for travel, allowing you to provide all your travel companions with Internet access.

Security Features Help Protect Your Network
The DWR-932C 4G/LTE Mobile Router is easy-to-use and includes a host of security features. The  built-in firewall helps your neywork resist intrusions over the Internet, while WPA encryption helps prevent unauthorized users from connecting to your network. Wi-Fi Protected Setup (WPS) helps you quickly add new devices with just the touch of a button, getting you connected in no time.

Flexible Usage
The DWR-932C 4G/LTE Mobile Router gives you instant connectivity, all in a powerful yet portable device, that fits easily into your pocket. The rechargeable 2000 mAh Li-ion battery allows you to stay connected for long periods of time, and it’s plug-and-play with no complicated software to install. Getting online with the DWR-932C 4G/LTE Mobile Router is quick, easy, and convenient.

Genel Özellikler

Interfaces
• 802.11n/g/b wireless LAN
• Standard nano-SIM card slot (DWR-932C/G1)
• Standard (U)SIM card slot (DWR-932C/F1)
• Micro-USB port (for battery charging)
• Micro-SD card slot (DWR-932C/F1)

Antenna
• Internal LTE antenna: 1x2 MIMO (UL/DL)
• 2 x internal Wi-Fi antenna

LED
DWR-932C/G1:
• Battery status
• Wi-Fi status
• 2G/3G/4G
DWR-932C/F1:
• Power/Battery status
• Wi-Fi status
• 2G/3G/4G
• Signal Strength
• SMS

Frequency Support*
• FDD-LTE: Band 1/3/7/8/20/28; TDD-LTE: Band 38/40 (DWR-932C/G1)
• FDD-LTE: Band 1/3/7/8/20 (DWR-932C/F1)
• UMTS/HSDPA/HSUPA: 2100/1800/900/850 MHz (DWR-932C/G1)
• UMTS/HSDPA/HSUPA: 2100/900 MHz (DWR-932C/F1)
• GSM/GPRS/EDGE: 850/900/1800 MHz (DWR-932C/G1)
• GSM/GPRS/EDGE: 900/1800 MHz (DWR-932C/F1)

Data Throughput**
• Downlink up to 150 Mbps
• Uplink up to 50 Mbps

Security
• WPA/WPA2-PSK Auto (TKIP/AES)
• WPS Push-Button Connection
• MAC filtering
• WEP 64/128-bit encryption (Wired Equivalent Privacy) (DWR-932C/F1)

Advanced Functions
• Built-in firewall
• Built-in NAT
• UPnP

Pshysical Parameters
Power
• DC 5 V/1 A ± 5%
• Built-in 2000 mAh Li-ion battery (DWR-932C/G1)
• External detachable 2000 mAh Li-ion battery (DWR-932C/F1)

Dimensions
• 100 x 66 x 22 mm (DWR-932C/G1)
• 97 x 60 x 16.47 mm (DWR-932C/F1)

Weight
• 104 g (DWR-932C/G1)
• 95 g (DWR-932C/F1)

Temperature
• Operating: 0 to 40 °C
• Storage: -20 to 60 °C (DWR-932C/G1)
• Storage: -20 to 70 °C (DWR-932C/F1)

Humidity
• Operating: 10% to 90% (Non-condensing)

Certifications
• CE
• RoHS

* Supported frequency band is dependent upon regional hardware version.
** Data rates are theoretical. Data transfer rate depends on network capacity and signal strength.
nd signal strength.

Çözümler

Sipariş Bilgisi

DWR-932C/3GG4HC
(rev.G1)
4G/LTE Mobile Router
(A battery charger is not included in the package contents)
DWR-932C/3GG4GI
(rev.F1)
4G/LTE Mobile Router
(A battery charger is not included in the package contents)

Görseller

DWR-932C/G1
Front view
Top view
Left side view
View from the right
Bottom view
Back view

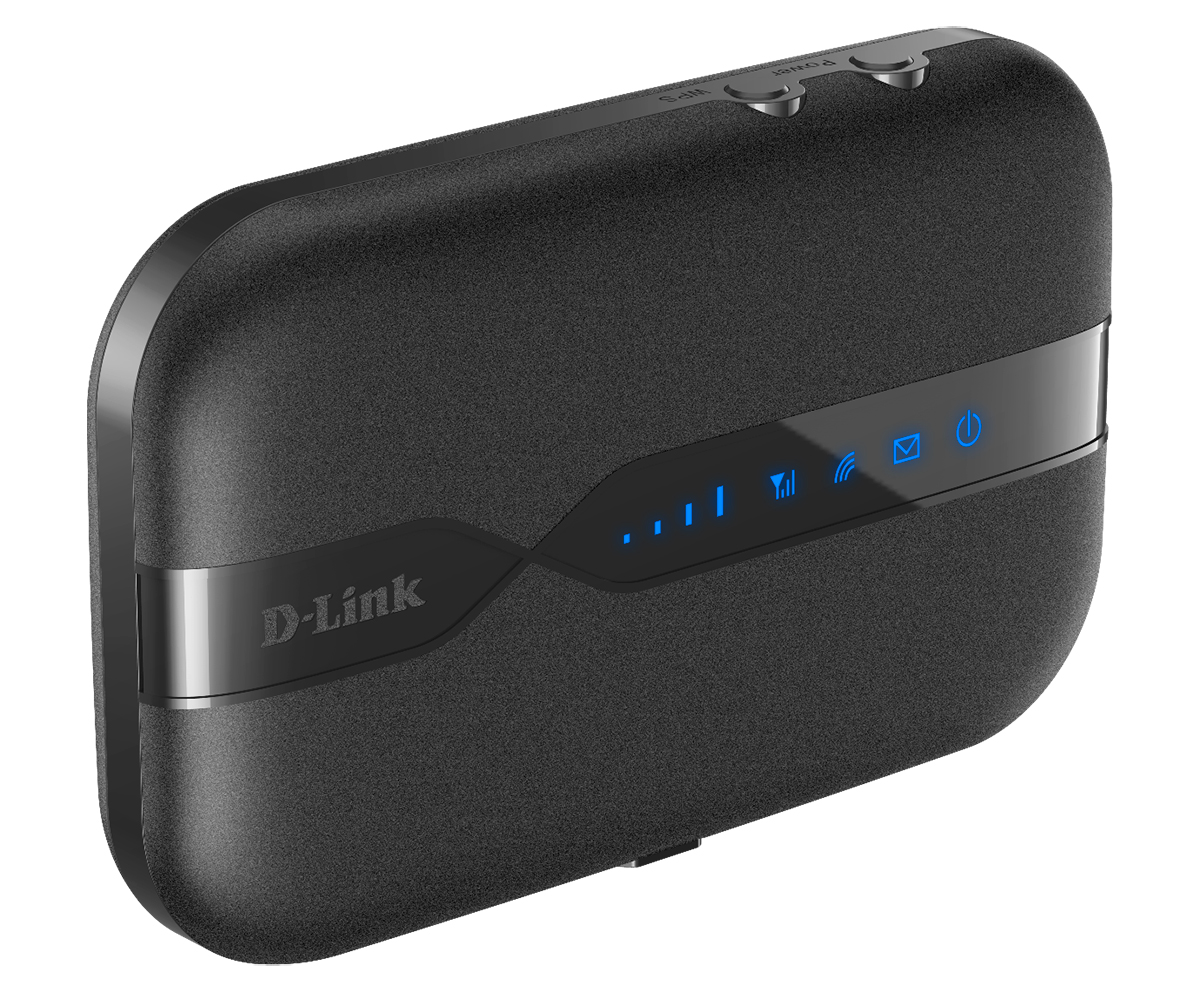

DWR-932C/F1
Front view
Front view
View from the right
Top view
Bottom view
Back view
