Key Expansion Module for DPH-400S/SE, DPH-400S/E/F3, DPH-400SE/E/F3, DPH-150S/F3 and DPH-150SE/F3
Nereden Alınır


External extension DPH-400EDM is designed to connect to an IP-phone DPH-400S/SE, DPH-400S/E/F3, DPH-400SE/E/F3, DPH-150S/F3 and DPH-150SE/F3. Each module has 26 physical keys. Each button module can be programmed for a specific function, such as voice mail, call forwarding function "do not disturb", etc. Also for them to appoint a selection of lines, when you press the button is engaged in one of the SIP lines. Power supply of the DPH-400EDM can be carried out directly with the IP-phones (up to 2 modules), to which they are connected.
The use of expansion modules DPH-400EDM allows the use of IP-Phones for small businesses, call centers, where the control and management of a large number of calls

Genel Özellikler

Fiziksel Özellikler
• 1 IN port 10/100Base-T with RJ-11 connector to connect to a VoIP phone
• 1 Out port 10/100Base-T with RJ-11 connector for an optional expansion module (DPH-400EDM)
• 1 x 5V DC to connect to the power adapter
26 DSS keys with dual-color LEDs
Phone Functions
• BLF List Key
• Speed ​​dialing
• Appointment of SIP-line DSS-keys
• Remote phone book

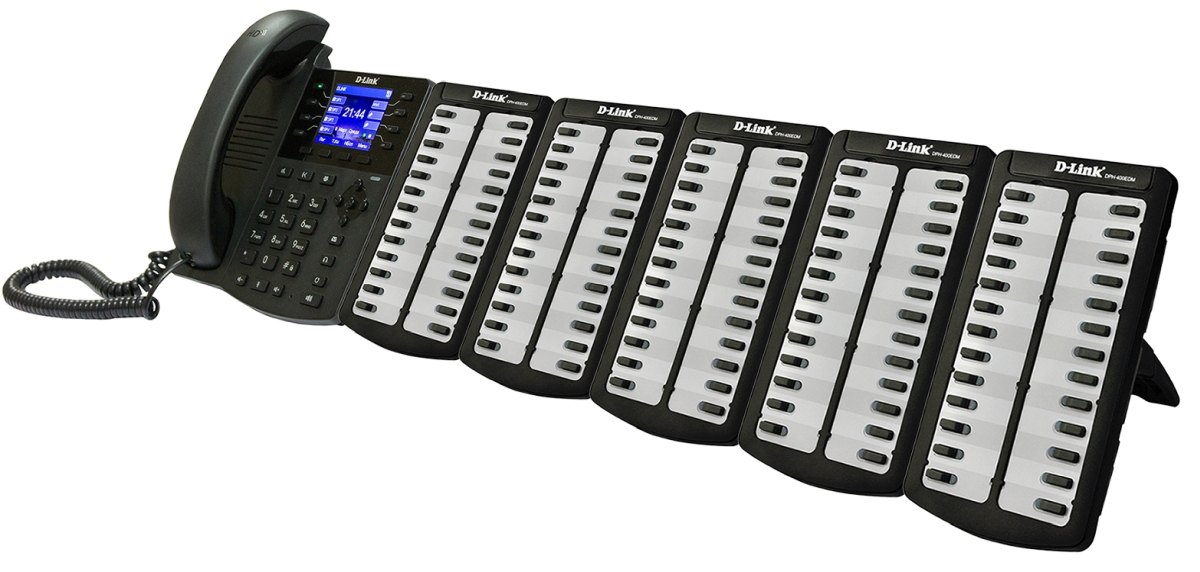

• Up to 5 Expansion Modules (130 DSS keys)
Key Functions
• Inclusion of a call
• Disable automatic redial
• Callback
• Call Forwarding
• "Do Not Disturb» (DND)
• Flash
• Headphones
• Call History
• Joint use of the phone (Hot Desking)
• Call Hold (Hold)
• Join call
• Lock
• Memo
• Phone Book
• Call Pickup (Pickup)
• Prefix
• Redial (Redial)
• Release
Network control
HTTP for remote software upgrade

Fiziksel Özellikler

Power Input
100 ~ 120, 220 ~ 240V AC power via an external power adapter
Output Power
DC 5V, 1A
Power consumption
• Typical: 2.5 W (Standby)
• Max.: 2.8 W (during a call)
0.41 kg
Operating temperature
From 0 ° to 40 ° C
Storage temperature
-20 ° to 60 ° C
Operating Humidity
From 10 to 65% non-condensing
Storage humidity
15 to 85% non-condensing
CE Class B


Sipariş Bilgisi

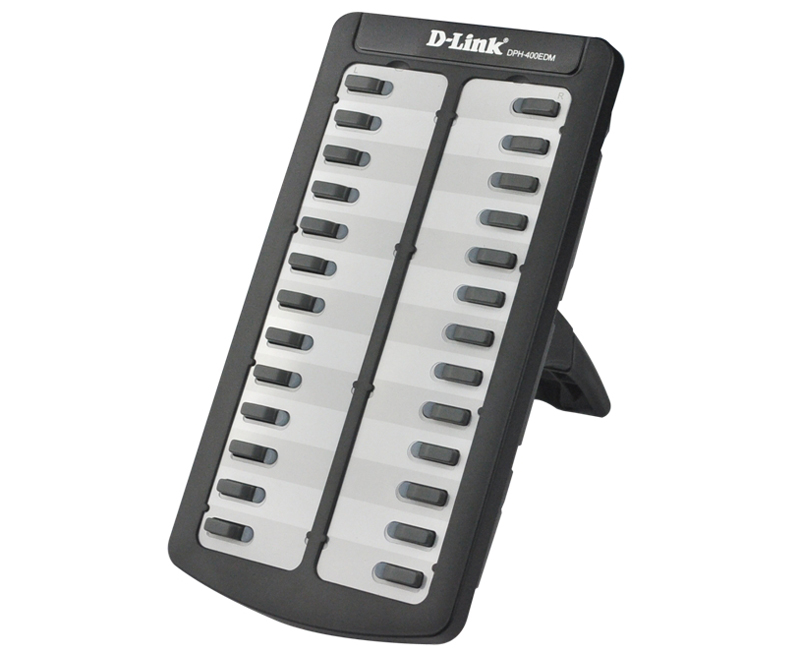

Front view

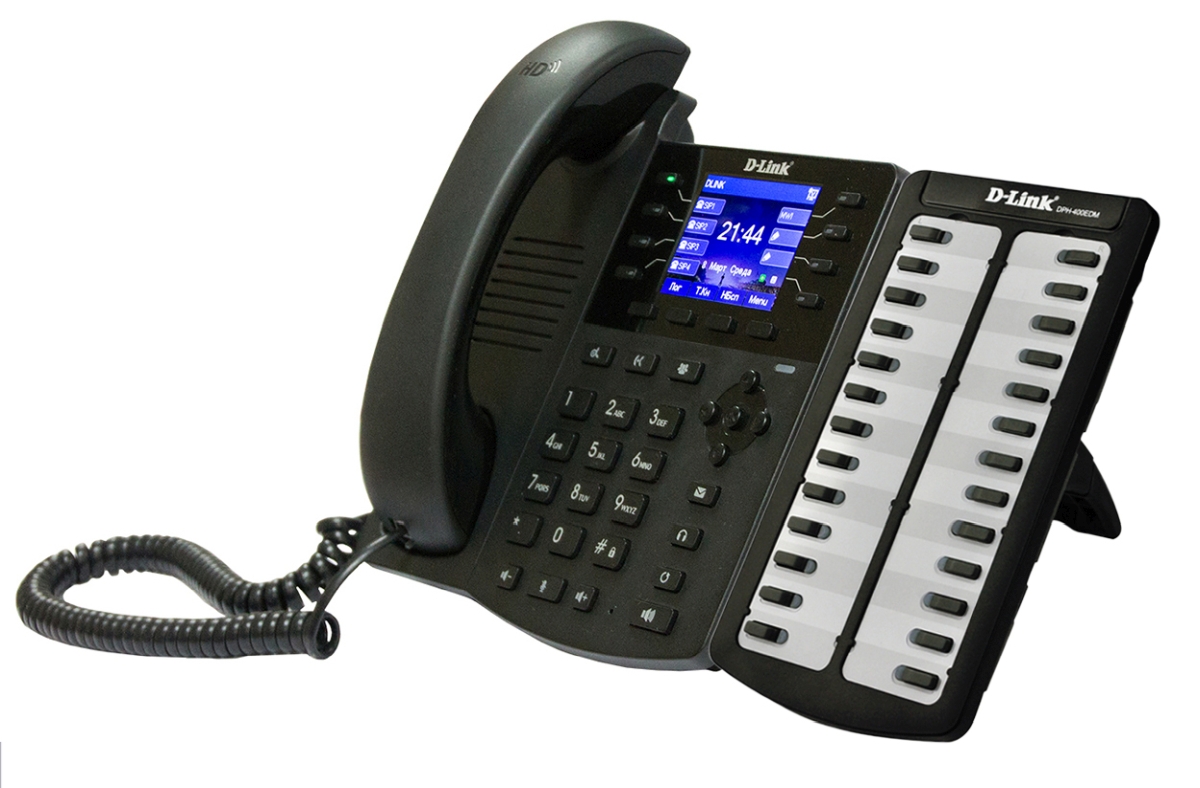

View from the right

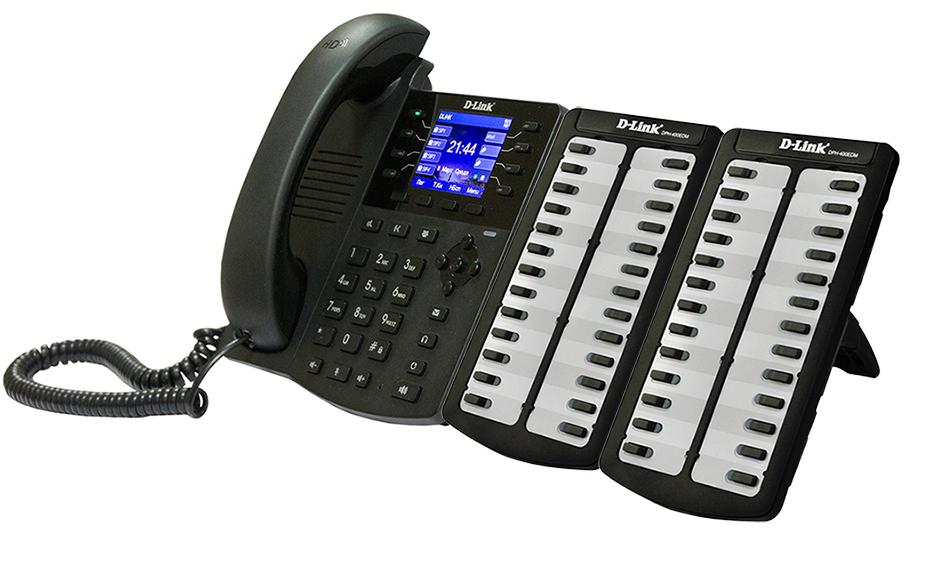

View from the right
View from the right
