İki FXS-port, USB-port ve 4-port switch ile Universal Wireless VoIP-yönlendirici
Nereden Alınır


VoIP-Router is equipped with two FXS-ports that allow you to connect analog phones to make calls over the Internet.
The router is equipped with USB-port for connecting a USB-modem with which you can quickly connect to the Internet. In addition, you can connect to the USB-port on the router USB-drive, which will be used as a network drive, or a printer.
Wireless Interface
Using Wireless Router DVG-N5402SP, you can quickly arrange high-speed wireless network at home or in the office, providing Internet access to computers and mobile devices almost anywhere (within range of a wireless network.) The Router can serve as an access point to connect to the wireless network devices of the standards 802.11b, 802.11g and 802.11n (up to 300 Mbit / s). Enable and disable the wireless network router, you can single click WLAN, located on the device.
In the router supports multiple functions for the wireless interface. The device supports several security standards (WEP, WPA/WPA2), filtering devices to be connected to MAC-address, as well as allows you to use WPS, WMM.
Wireless Router DVG-N5402SP provides firewall. Enhanced security functions minimize threats of hackers and prevent intrusions to your network.
Configuration and Management
To manage and configure the wireless router DVG-N5402SP uses a simple and user-friendly web-interface (available in several languages).

Genel Özellikler

Fiziksel Özellikler
WAN interface
1 10/100BASE-TX Ethernet port for cable or DSL-modem or connect to a dedicated Ethernet-line
LAN interface
4-port 10/100BASE-TX Ethernet
WLAN interface
• IEEE 802.11n (up to 300 Mbit / s)
• IEEE 802.11b / g
FXS interface
2 FXS ports for connecting analog telephone or fax machine
USB interface
USB 2.0 type A to USB-modem connection, drive or printer
Frequency band
• 802.11b
  ◦ 2400 ~ 2484 MHz ISM band
• 802.11g
  ◦ 2400 ~ 2484 MHz ISM band
• 802.11n
  ◦ HT20: 2400 ~ 2483.5 MHz ISM band
  ◦ HT40: 2422 ~ 2452 MHz ISM band
Speed ​​Wireless
• 802.11b
  ◦ 11, 5.5, 2 and 1 Mbit / c for each channel, with automatic speed
• 802.11g
  ◦ 54, 48, 36, 24, 18, 12, 9 and 6 Mbit / s for each channel, with automatic speed
• 802.11n
  ◦ HT20: up to 150 Mbit / s
  ◦ HT40: up to 300 Mbit / s
Modulation Schemes
• 802.11b: CCK, DQPSK, DBPSK
• 802.11g: 64QAM, 16QAM, QPSK, BPSK, DSSS
• 802.11n: 64 QAM, 16QAM, QPSK, BPSK
Basic functions SIP
• Individual account for each port
• Invite with Challenge
• Register for IP-address SIP-server or domain name
• Support the format of SIP URI (RFC3986)
• Support for outbound (outbound) proxy
• Timers sessions (update / re-invite)
• Support for DNS SRV
• Types of calls: Voice / Modem / Fax
• User-configurable dial plan (dial plan)
• Identify the source and destination (P2P-calls) manually
• Dialing E.164 (with an exclusion rule ENUM)
Call Functions
• Direct call IP-to-IP without SIP proxy
• Hold / resume a call
• Call Waiting
• Forwarding (unconditional, on busy, no answer)
• "Do not disturb"
• Message Waiting Indication (MWI)
• Lock Hidden Numbers
• AntiAON
• Speed ​​Dial
• «hotline"
Voice Features
• Codecs: G.711 a / μ-law, G.729A, G.726, G.722
• DTMF detection and generation
• Comfort noise generation (CNG)
• Voice Activity Detection (VAD)
• Variable (dynamic) jitter-buffer
• Generation of call progress tone (FXS)
• Program Gain
• In-band DTMF, out-of-band DTMF (RFC2833, SIP-INFO)
• Support for tone / pulse dialing
• Detection and generation Caller ID (Caller ID)
• T.30 FAX bypass to G.711, T.38 Real Time FAX Relay
Network Features
• Types of WAN-connections:
  ◦ 3G
  ◦ PPPoE
  ◦ Static IP
  ◦ Dynamic IP
  ◦ PPTP/L2TP + Static IP
  ◦ PPTP/L2TP + Dynamic IP
• DHCP-Server and DHCP-Client
• DNS relay
• Skip VPN-tunnel (PPTP/L2TP)
• Dynamic DNS
• Static IP-routing
• Remote access
• Network statistics for each interface
• IGMP Proxy
• UPnP
• VLAN support
• Supports ping from the external network (WAN ping respond)
USB-modem *
• Automatically connect to an available type of supported network (3G/2G)
• Enable / disable PIN-code verification, change PIN-code
• Access via SMB
• Built-in FTP-server
• Print Server
• Accounts for access to the drive
Wireless connection
• Supported safety standards:
  ◦ WEP
  ◦ WPA/WPA2 Personal
  ◦ WPA/WPA2 Enterprise
• MAC-filter
• PIN and PBC methods of WPS
• The WMM (Wi-Fi QoS)
• Advanced Settings
• Ability to download files on the USB-drive and a Firewall Functions
• Network Address Translation (NAT)
• Stateful Packet Inspection (SPI)
• IP-filters
• MAC-filter
• URL-Filter
• DMZ-zone
• The protection and ARP-DDoS-attacks
• Virtual servers
Configuration and Management
• Web-based interface for configuration and management of multiple languages
• Access via TELNET
• Upgrade the firmware of the router through the web-interface
• Save and load configuration
• Support for remote logging
• Automatic synchronization of system time with a NTP-server and manually configure the date and time
• The ping
• traceroute utility
Supported USB-modems *
• GSM-modems
  ◦ D-Link DWM-152
  ◦ D-Link DWM-156
  ◦ Huawei E160G
  ◦ Huawei E169G
  ◦ Huawei E171
  ◦ Huawei E220
  ◦ ZTE MF112
  ◦ ZTE MF192
  ◦ ZTE MF626
  ◦ ZTE MF627
  ◦ ZTE MF652
  ◦ ZTE MF668
  ◦ ZTE MF752
• CDMA-modems
  ◦ Airplus MCD-650
  ◦ Airplus MCD-800
  ◦ AnyDATA ADU-300A
  ◦ AnyDATA ADU-500A
  ◦ AnyDATA ADU-510A
  ◦ ZTE AC5710
  ◦ ZTE AC5730

Fiziksel Özellikler

• 4 LAN indicator
• Indicator 2 FXS
• Power supply: External Power Adapter DC 12V/1.25A
• Power on / off
• The RESET button to return to the factory defaults
• WPS button
• Power on / off the wireless network
Operating temperature
From 0 to 40 C
Storage temperature
-20 To 70 ° C
Operating Humidity
From 10% to 90% non-condensing
Storage humidity
From 5% to 95% non-condensing
* Only for GSM USB-modems


Sipariş Bilgisi

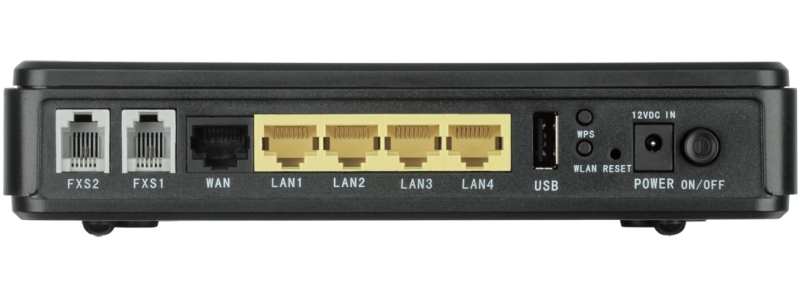

Back view

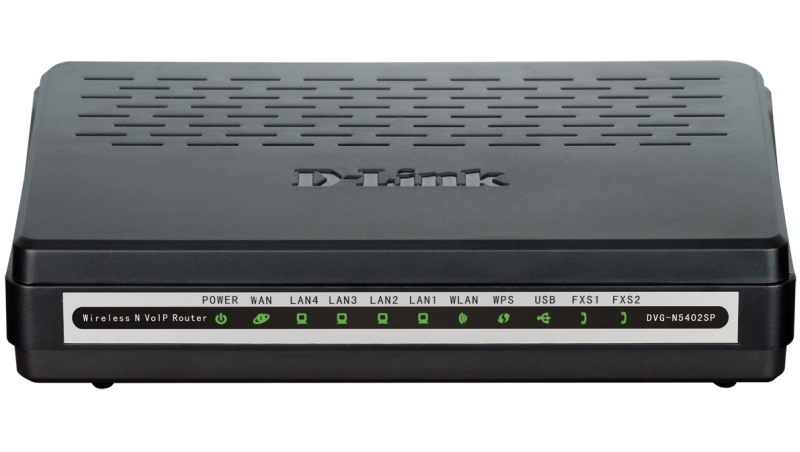

Front view
