IP Phone with 1 10/100 PoE Port
Nereden Alınır


INTERNET PHONE MADE FOR HOME & OFFICE The DPH-120SE Broadband Internet IP Phone allows you to take advantage of your DSL/cable modem connection to make inexpensive Internet phone calls. It combines the industry’s latest Voice over the IP network (VoIP) technology with advanced communication features, and is compatible with industry-wide phone services. This sleek designed IP phone gives you the advantages of VoIP, while retaining the same look and feel of a traditional desktop telephone. SUPERIOR VOICE QUALITY The DPH-120SE IP phone incorporates Quality of Service (QoS) to ensure that voice received through the Internet is the same as or even surpasses that received on the ordinary phone. It supports many useful functions such as call transfer, caller ID display, 3-way conference and speed dialing to make it convenient to dial out or answer phone calls. SURF INTERNET WHILE MAKING INTERNET PHONE CALLS The DPH-120SE comes with two Ethernet ports, one to connect to a DSL or cable modem, or to your broadband router. Once connected and logged onto the Internet, you are ready to make and receive calls. In addition, this IP phone provides another Ethernet port for connection to your PC, so you can talk on the IP telephone while browsing web sites, send e-mail, transfer les and do other network tasks on your PC. QUALITY OF SERVICE AND SECURITY The DPH-120SE supports voice VLAN to isolate your voice communication so it cannot be tapped over the network. It provides priority queues to streamline trac so web browsing and Internet download will not interfere with voice trac and degrade Internet phone quality.

Genel Özellikler

Fiziksel Özellikler
Interfaces • WAN Port: 10/100 BASE-T RJ-45 with PoE support for Internet connection • LAN Port: 10/100 BASE-T RJ-45 for PC • Headset : RJ9 • Handset : RJ9 LEDs • Power Display • Large dot matrix LCD display • Display Resolution: 128x48 pixels Keyboard • 4 programmable soft keys • Navigation keys • Headset • Volume adjustment (-/+) • Redial • Speaker phone • Dial phone numbers (including * and #) CPU • Broadcom SDRAM • 16 MB Flash Memory • 4 MB Power Plug • AC power plug Phone features • Vxworks OS • Support SIP2.0 (RFC3261) • SIP support 2 SIP servers, and backup SIP proxy servers • Supports SIP UDP / TCP/ TLS • SIP support SIP domain, SIP authentication (none, basic, MD5), DNS name of server, Peer to Peer / IP Call Audio Features • HD voice: HD handset • Codec: G.711A/u, G.7231 high/low, G.729AB, G.722, G.726-32 • DTMF: In-band, RFC 2833 and SIP INFO • Full duplex hands- free speaker phone with acoustic echo cancellation • Voice Activity Detection (VAD) • Comfort Noise Generation (CNG) • Background noise suppression • Adaptive jitter buffers • Packet loss concealment • SRTP • mute Advanced Features • Call forwarding (busy/no answer/always) • Call transfer (unattended/attended/semi-attended) • Call holding • Call waiting • 3 way call conference • BLF list • Join call • Call pickup • Call park • Redial • Call back • Call completion • Hot desking • Auto redial • Predial • SIP messaging, MWI • Flexible dial plan • Barring function for outgoing calls • Do not disturb • Auto answer • Caller ID display • CLIR(rejects anonymous calls) • CLIP(to make an anonymous call) • Dial without registration • Call logs with missed calls/incoming calls/outgoing calls. Each support 300 records • Phonebook: 500 records • Speed Dial (abbreviated dialing) • Hotline/Warm-line • Call rejection • Black List/ White List • Intercom • Password dial, DTMF hidden • Action URL/ active URI • Voice codec setting for each SIP line • LDAP, XML phonebook • Web dial • Keypad lock, Emergency call Network/ Security Features • Bridge mode and route • PPPoE for xDSL • 802.3af PoE • VLAN(Voice VLAN/Data VLAN) • 802.1X • NAT (NAPT) • NAT transverse :Support STUN client • DHCP client on WAN/ DHCP server on LAN • Main DNS and secondary DNS server • DNS Relay • SNTP Client • Firewall and DMZ • Web management access restricted • VPN (L2TP) • ping, Trace route, telnet Maintenance & Management • WEB, telnet and LCD menu management • Management with different account right • Recover firmware and factory reset • Upgrade firmware via HTTP, HTTPS, FTP, TFTP • DHCP option66 and custom option for auto provisioning • Auto Provisioning to upgrade configuration file with AES encryption • TR-069 and Syslog Physical Parameters Dimensions • 250 x 205 x 60 mm Weight • 0.84kg Power Supply • DC 5 V/600 mA, power adapter • Ethernet cable (PoE) 802.3af Power consumption: • IDLE: 2.5W • Active: 2.8W Operation Temperature: • 0 to 40°C Relative Humidity: • 10% to 65% Certification • FCC • CCC • CE • RoHS Fiziksel Özellikler


Sipariş Bilgisi

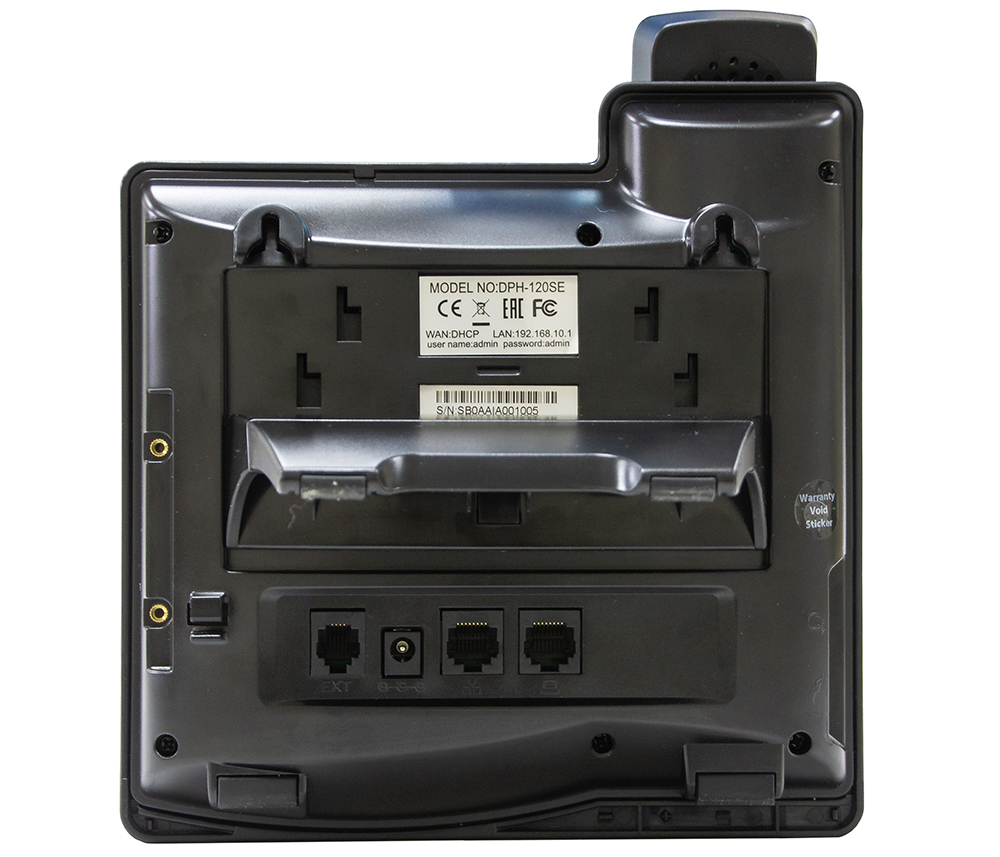

Back view

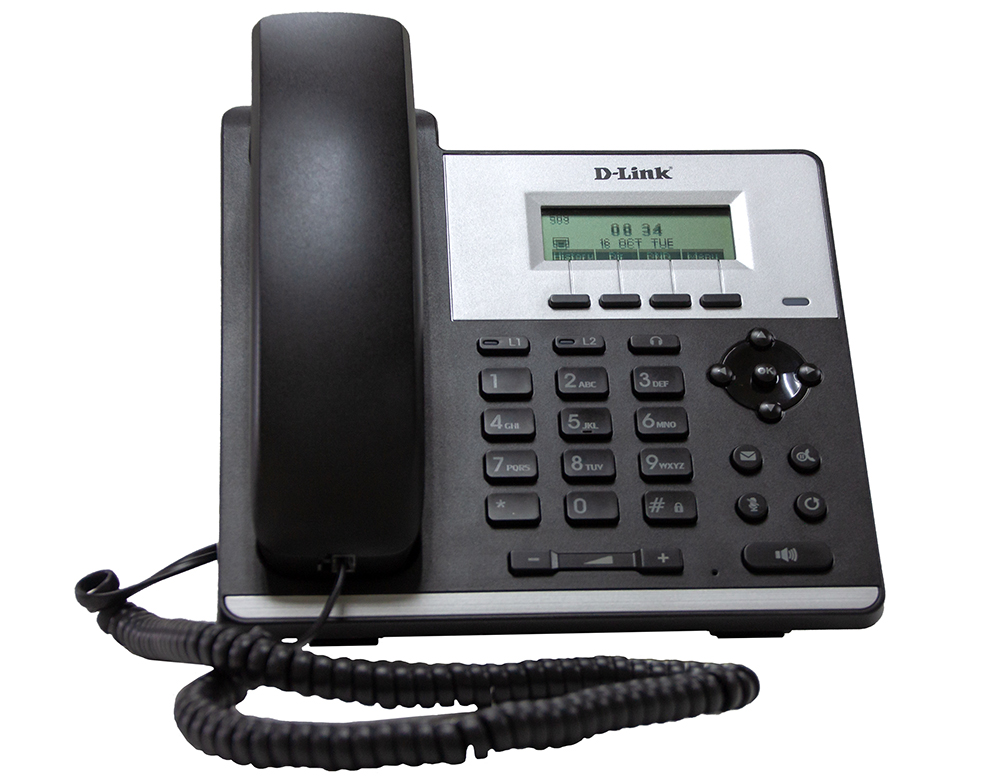

Front view

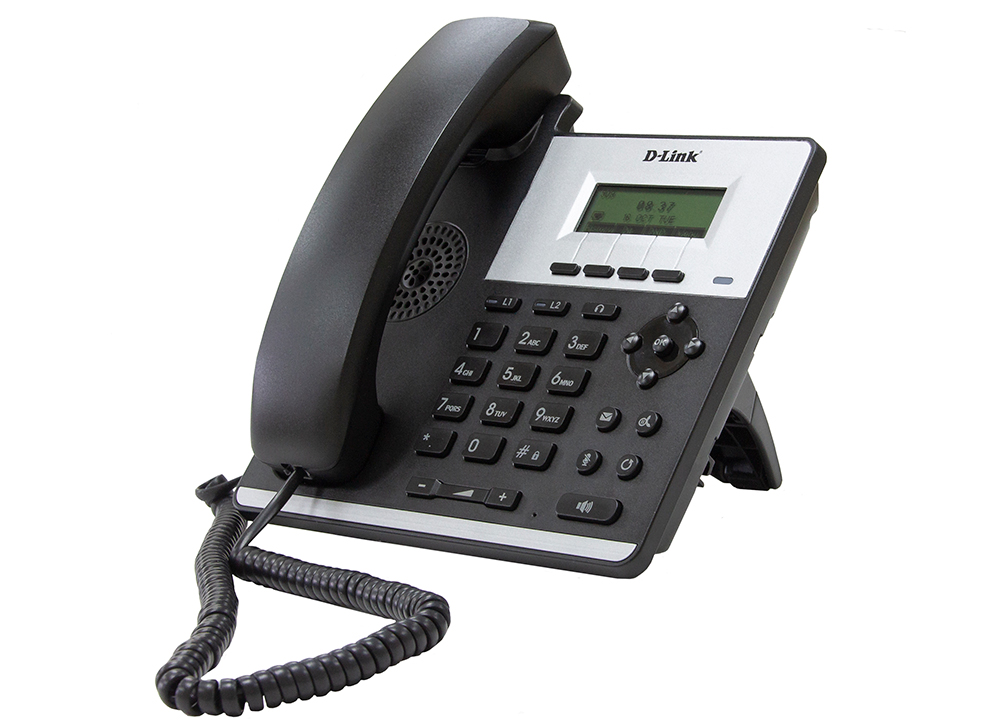

Left side view

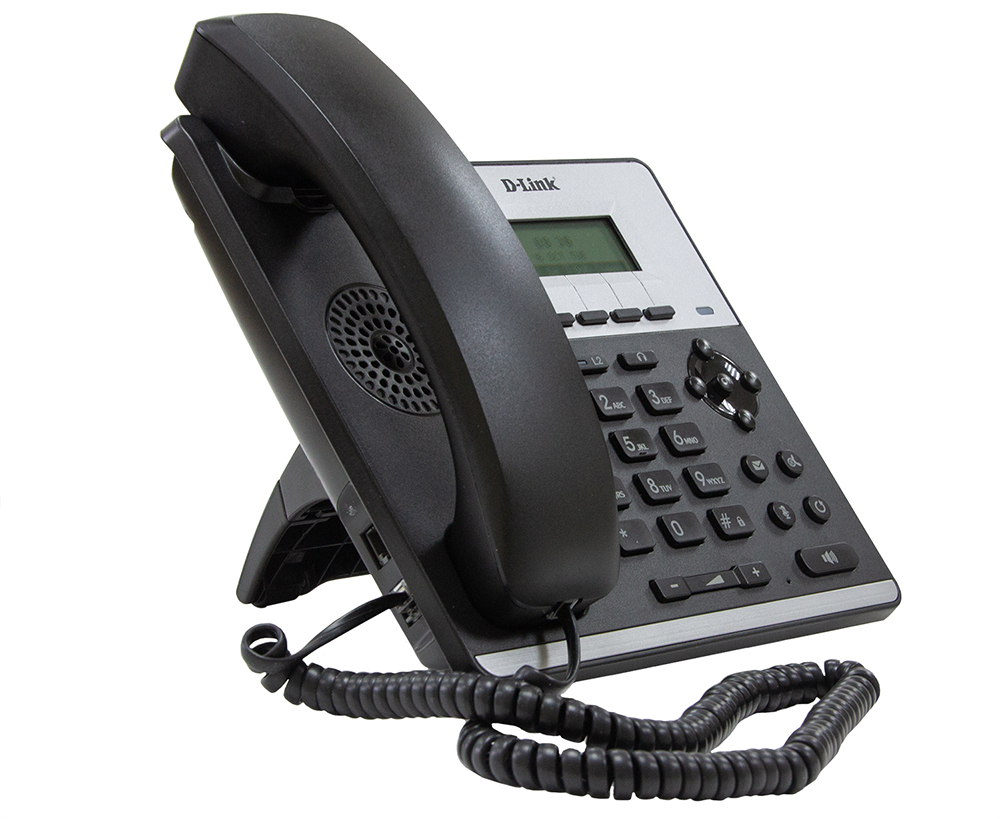

View from the right
Front view
